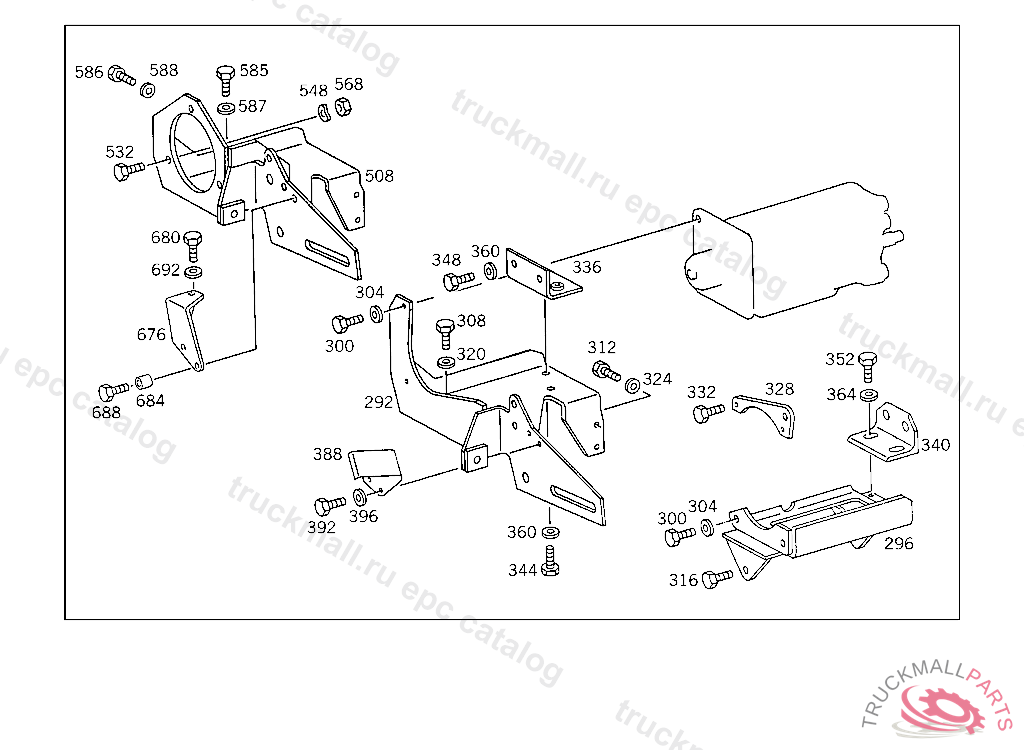

Поз.
Артикул
Описание
292
SUPPORT (CONSOLE),COMPRESSOR
296
SUPPORT (CONSOLE),COMPRESSOR
300
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
304
WASHER EXHAUST MUFFLER TO STRAP
304
WASHER , Replaced By: N000125008443
308
SCREW , Replaced By: N304017012020
308
SCREW END PIECE TO EXHAUST PIPE M 12X30
312
SCREW PIPE ELBOW TO BRACKET M 10X50
312
SCREW , Replaced By: N304017010053
316
SCREW REFRIGERANT LINE TO COMPRESSOR,5 017486
320
WASHER
324
WASHER STRUT TO CROSS MEMBER
324
WASHER , Replaced By: N007349010007
328
BRACKET REFRIGERANT COMPRESSOR
332
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
336
BRACKET COMPRESSORE CONSOLE
340
BRACKET COMPRESSORE CONSOLE
344
SCREW STRUT TO CROSS MEMBER M 10X25
344
SCREW , Replaced By: N304017010040
348
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
352
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
352
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
360
WASHER RADIATOR TO RUBBER MOUNTING
364
WASHER
388
SCREENING PLATE COMPRESSORE CONSOLE
392
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
396
WASHER EXHAUST MUFFLER TO STRAP
396
WASHER , Replaced By: N000125008443
508
SUPPORT (CONSOLE),HYDRAULIC PUMP
532
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
532
SCREWM 8X40
532
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
548
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
548
SPRING WASHER , Replaced By: N000137008212
568
NUT , Replaced By: N304032008006
568
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
568
NUT
585
SCREW END PIECE TO EXHAUST PIPE M 12X30
585
SCREW , Replaced By: N304017012020
586
SCREW , Replaced By: N304017010053
586
SCREW PIPE ELBOW TO BRACKET M 10X50
587
WASHER
588
WASHER STRUT TO CROSS MEMBER
588
WASHER , Replaced By: N007349010007
676
BRACKET COMPRESSORE CONSOLE
680
SCREW END PIECE TO EXHAUST PIPE M 10X25
684
SPACER TUBE MOUNTING PLATE TO CYLINDER CRANKCASE
688
SCREW RADIATOR M 10X45
692
WASHER RADIATOR TO RUBBER MOUNTING
999
CYLINDER HEAD , Replaced By: A0001303619, +001N070614010021
999
BALL BEARING PULLEY
999
CLAMP , Replaced By: N916016011202
999
COMPRESSOR , Replaced By: A0031312501
999
BALL BEARING , Replaced By: A0039818025
999
NUT , Replaced By: A0029908051
999
V-BELT , Replaced By: A0049970192
999
V-BELT , Replaced By: A0039970192
999
V-BELT , Replaced By: A0099976892
999
V-BELT12.5X1725
999
V-BELT , Replaced By: A0049976992
999
V-BELT , Replaced By: A0099976992
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
OIL FILLER NECK , Replaced By: A3520106164
999
VIBRATION ABSORBER VIBRATION ABSORBER
999
CRANKSHAFT , 044067, Replaced By: A3520305601, +001A3140350214
999
VIBRATION ABSORBER , Replaced By: A3520303403
999
POINTER , Replaced By: A3520321515
999
THRUST RING
999
PULLEY , Replaced By: A3520352312
999
PULLEY , Replaced By: A3662051308
999
BEARING RING DRIVE, NOT USED
999
NUT ALTERNATOR
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 810351, Replaced By: A3661550127
999
BUSHING
999
SCREENING PLATE , Replaced By: A3522030192
999
ENGINE SUPPORT , Replaced By: A3622200016
999
ENGINE SUPPORT FRONT
999
BEARING BRACKET , Replaced By: A3522300139
999
FLANGE PROPELLER SHAFT TO DRIVE,518930
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 775696, Replaced By: A3622300040
999
BRACKET
999
PULLEY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 4 629840, Replaced By: A3522361510
999
WASHER , Replaced By: A3149900940
999
WASHER , Replaced By: N000433010510
999
WASHER VIBRATION ABSORBER TO BRACKET
999
NARROW V-BELT , Replaced By: A0039970592
