Поз.
Артикул
Описание

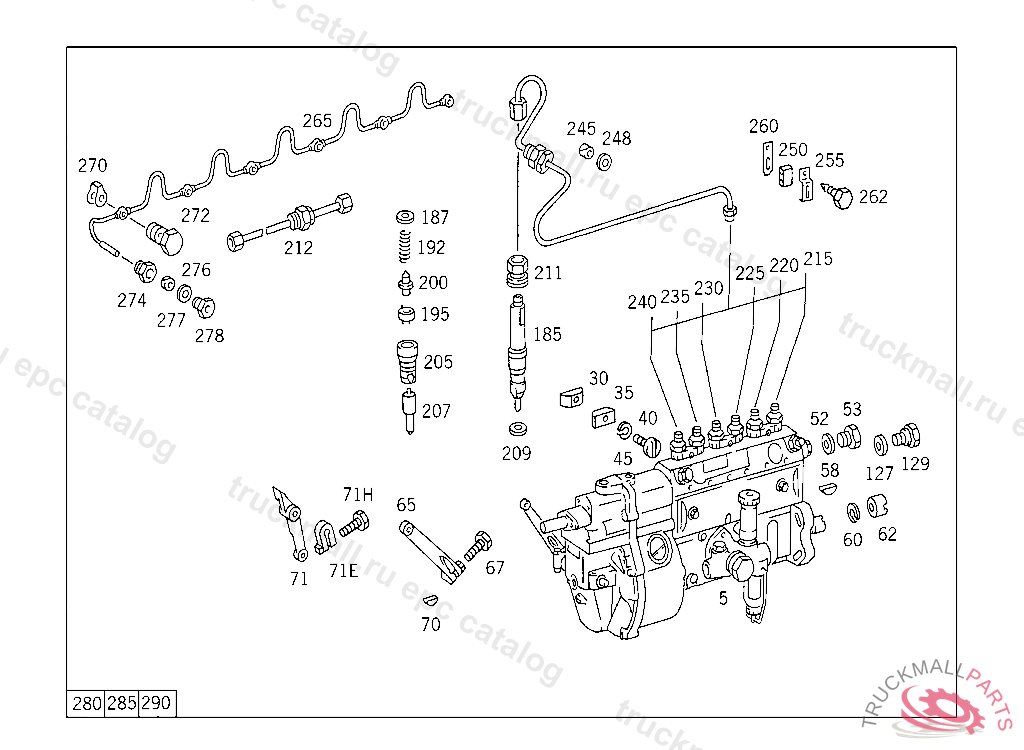

5
INJECTION PUMP
30
CLAMPING PIECE THREADED
35
CLAMPING PIECE WITH THRU HOLE
40
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
45
SCREW
52
SEAL RING FUEL LINE TO FEED PUMP
53
FITTING
58
WOODRUFF KEY POWER STEERING PUMP
60
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
62
NUTTO 007 074 03 02
65
LEVER
67
SCREW LICENSE PLATE TO BRACKET
67
SCREW , Replaced By: N304017006020
70
WOODRUFF KEY INJECTION PUMP
71
LEVER OUTSIDE
127
SEAL RING , Replaced By: N007603010110
127
SEAL RING PNEUMATIC VALVE
129
SCREW PLUG 4/2-WAY VALVE
129
SCREW PLUG AIR DEHYDRATOR
185
NOZZLE HOLDER , UP TO ENGINE 729030,FROM ENGINE 729031 SEE SA B83158
187
SPACER WASHER1.20 MM
187
SPACER WASHER1.70 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
187
SPACER WASHER1.80 MM
187
SHIM, 1.15 MM THICK. SPACER WASHER1.15 MM
187
SHIM, 1.20 MM THICK. SPACER WASHER1.2 MM
187
SHIM, 1.30 MM THICK. SPACER WASHER1.3 MM
187
SHIM, 1.35 MM THICK. SPACER WASHER1.34 MM, Replaced By: A0030177852
187
SHIM, 1.40 MM THICK. SPACER WASHER , Replaced By: A0030178452
187
SHIM, 1.50 MM THICK. SPACER WASHER1.50 MM, Replaced By: A0030179452
187
SHIM, 1.70 MM THICK. SPACER WASHER , Replaced By: A0040171452
187
SHIM, 1.80 MM THICK. SPACER WASHER1.80 MM, Replaced By: A0040172452
187
SHIM, 1.85 MM THICK. SPACER WASHER , Replaced By: A0040172852
187
SHIM, 1.10 MM THICK. SPACER WASHER1.1 MM
187
SPACER WASHER1.84 MM
187
SHIM, 1.55 MM THICK. SPACER WASHER1.55 MM
187
SPACER WASHER1.40 MM
187
SHIM1.34 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
187
SHIM, 1.95 MM THICK. SPACER WASHER1.95 MM
187
SHIM, 1.90 MM THICK. SPACER WASHER1.9 MM
187
SHIM, 1.05 MM THICK. SPACER WASHER1.04 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
187
SPACER WASHER1.50 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
187
SHIM, 1.45 MM THICK. SPACER WASHER1.45 MM
187
SHIM, 1.75 MM THICK. SPACER WASHER1.75 MM
187
COMPENSATING DISC1.14 MM
187
SHIM, 1.60 MM THICK. SPACER WASHER1.6 MM
187
SHIM, 1.25 MM THICK. SPACER WASHER1.24 MM
187
SPACER WASHER1.30 MM
187
SHIM, 1.65 MM THICK. SPACER WASHER1.65 MM
187
SHIM, 1.0 MM THICK. SPACER WASHER1.0 MM
192
PRESSURE SPRING
195
SPACER WASHER , Replaced By: A0020172252
195
SPACER WASHER
200
PIN , Replaced By: A0000171574
200
PIN
205
UNION NUT , Replaced By: A0000174616
205
UNION NUT AS REQUIRED M 24X1.5
207
NOZZLE , UP TO ENGINE 729030,FROM ENGINE 729031 SEE SA B83158
209
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3880170160
209
SEAL RING NOZZLE HOLDER TO CYLINDER HEAD 1.5 MM
211
SCREW
212
LINE UNBENT
215
LINE CYLINDER NO.1
220
LINE CYLINDER NO.2
225
LINE CYLINDER NO.3
230
LINE CYLINDER NO.4
235
LINE CYLINDER NO.5
240
LINE CYLINDER NO.6
245
SEAL RING DELIVERY LINES
245
SEAL RING CONNECTION TO CYLINDER HEAD
248
FITTED WASHER
248
WASHER , Replaced By: N000988008024
250
SHIM , Replaced By: A3520780186
250
SHIM , Replaced By: A6034280284, +002A0004290540
250
SHIM DELIVERY LINE IN CLAMPING PIECE
255
BRACKET
255
CLAMP , Replaced By: A0004290540, +002A3660780386
255
CLAMP , Replaced By: A0004290540, +002A3660780386
260
CLAMPING PIECE , Replaced By: A0004290540, +002A6034280284
260
CLAMPING PIECE , Replaced By: A0004290540, +002A6034280284
262
SCREW , Replaced By: N304017006018
262
SCREW COVER PLATE TO COVER PLATE M 6 X 12
262
TAPPING SCREW. SHEET METAL SCREW OIL LINE MOUNTING
265
LINE (FUEL LEAK LINE)
270
SEAL
272
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
274
SCREW PLUG
276
SEAL RING DELIVERY LINES
277
FITTED WASHER
277
WASHER , Replaced By: N000988008024
278
SCREW PLUG
280
LINE , Replaced By: A0089975482, +002A0009904088
285
LINE , Replaced By: A0089975482, +002A0009904088
290
LINE , Replaced By: A0089975482, +002N915052008000
999
PIN , Replaced By: A0000171574
999
NOZZLE , Replaced By: A0000177112
999
NOZZLE HOLDER , Replaced By: A0010172721
999
CLAMPING PIECE
999
VALVE , Replaced By: A0000740515
999
CAMSHAFT
999
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.10 MM
999
SPACER WASHER0.12 MM
999
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.14 MM
999
SPACER WASHER0.16 MM
999
SPACER WASHER AS REQUIRED 0.30 MM
999
SPACER WASHER AS REQUIRED 0.50 MM
999
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 1.00 MM
999
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.10 MM
999
SPACER WASHER0.12 MM
999
SPACER WASHER0.14 MM
999
SPACER WASHER0.16 MM
999
SPACER WASHER0.18 MM
999
SPACER WASHER0.50 MM
999
ELEMENT , Replaced By: A0000780129
999
CLAMPING JAW. CLAMPING PIECE , Replaced By: A0000781335, +001A0000781435
999
CLAMPING JAW WITH THREAD. CLAMPING PIECE , Replaced By: A0000781435, +001A0000781335
999
FITTING , Replaced By: A0000781069, +001A0000780129
999
VALVE , Replaced By: A0000910910
999
FILTER BOWL
999
HAND PUMP. FUEL PUMP , Replaced By: A0000904050
999
STUD
999
BALL SOCKET , Replaced By: A0009912422
999
FUEL PUMP
999
REPAIR KIT , Replaced By: A0000900210
999
SEAL RING , Replaced By: A0149976148
999
SEAL RING , Replaced By: A0119972948
999
SEAL RING , FROM ENGINE 077699-151056-999999 YEAR OF MANUFACTURE 1976-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990 TO INJECTION PUMP HAVING THE BOSCH DESIGNATION PES-4A-80D OR PES-4A-90D
999
SEAL RING , Replaced By: A0019972645
999
SEAL RINGTO 388 476 71 69
999
SPRING , Replaced By: A3529931910
999
GASKET , Replaced By: A3520760280
999
BALL PIVOT LEVER
999
SCREW PLUG , Replaced By: A3529971130
999
SCREW PLUG , Replaced By: A3529971230
999
SEAL RING , Replaced By: A3529970240
999
LINE ,035923, Replaced By: A0089975482, +002N915052008000
999
CLAMPING PIECE LINE MOUNTING, ON TRUCKS FROM CHASSIS 156442-263695,ON BUSES FROM CHASSIS 020034-263695,FROM CHASSIS 263696 SEE MICRO FICHE 723.0 ONLY FOR USE WITH HYDRAULIC MODULATOR
999
DRIVE GEAR , Replaced By: A3520700913
999
LEVER , Replaced By: A3520703421
999
INJECTION TIMING DEVICE , Replaced By: A3520700645, +001A3229900001, +001A3129941201
999
PIN , Replaced By: A3520750174
999
HOSE , Replaced By: A3550780086
999
COVER PLATE , Replaced By: A3520780086
999
BEARING BRACKET , FROM ENGINE 054057-054976 SEE SERVICE INFORMATION, Replaced By: A3220760235
999
LINE , Replaced By: A3520703133
999
LINE , Replaced By: A3520703233
999
LINE , Replaced By: A3520700235
999
LINE , Replaced By: A3520703333
999
INJECTION TIMING DEVICE , Replaced By: A3520701345
999
LINE , Replaced By: A3520703433
999
LINE , Replaced By: A3520703533
999
SEGMENT , Replaced By: A3520700557
999
LEVER ACCELERATOR CONTROL
999
LINE , Replaced By: A3520703633
999
SEGMENT , Replaced By: A3520700757
999
LINE , Replaced By: A3520703733
999
INJECTION TIMING DEVICE
999
INJECTION TIMING DEVICE , Replaced By: A3520701345
999
SEGMENT , Replaced By: A3520700957
999
LINE , Replaced By: A0089975482, +002A0009904088
999
LINE
999
LINE , Replaced By: A3520703233
999
LINE , Replaced By: A3520703333
999
LINE , Replaced By: A3520703433
999
LINE , Replaced By: A3520703533
999
LINE , Replaced By: A3520703633
999
LINE , Replaced By: A3520703733
999
PIN , INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
999
PIN , Replaced By: A3520750074
999
GASKET , Replaced By: A3520760280
999
LEVER EXHAUST BRAKE
999
SEAL RING , Replaced By: A3529970540
999
TAPERED ROLLER BEARING
999
TAPERED ROLLER BEARING
999
SCREW OIL TANK TO BRACKET
999
SCREW CAB FLOOR COVERING M 6X25
999
NUT BALL PIVOT TO LEVER
999
BALL PIVOT , Replaced By: A3129910120
