Поз.
Артикул
Описание

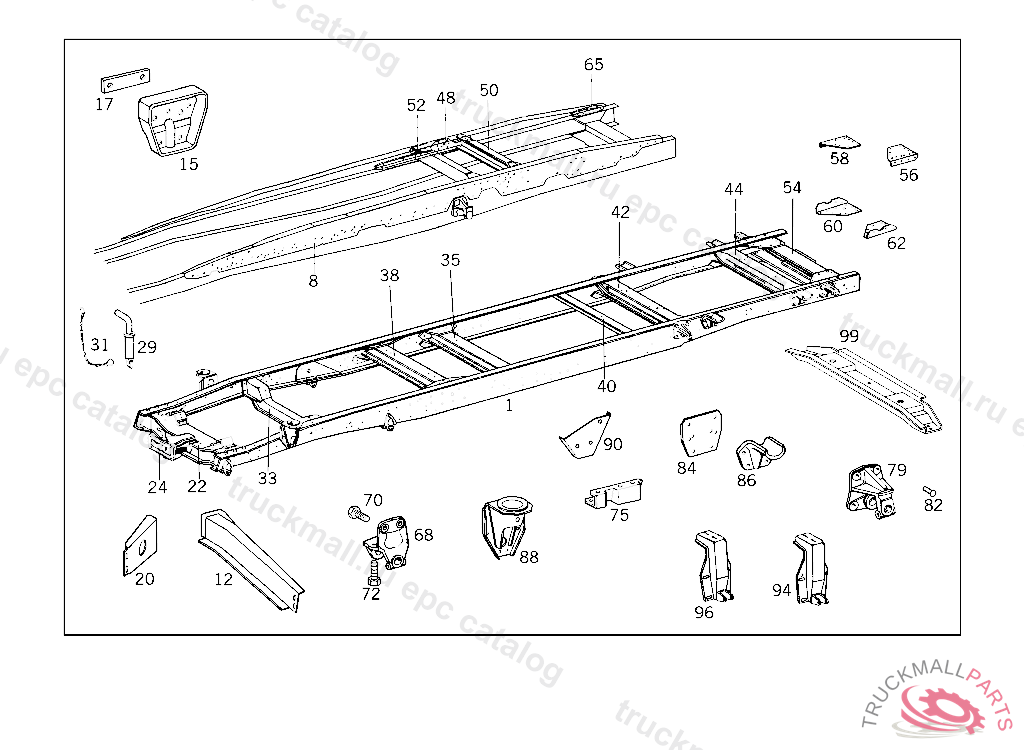

1
FRAME
8
REINFORCEMENT LEFT
8
REINFORCEMENT RIGHT
12
STRUT LEFT
12
STRUT RIGHT
20
BRACKET , ON CAB 331
20
BRACKET , ON CAB 331
22
ENGINE CROSS MEMBER FRONT
24
BRACKET WITH COUPLING MOUTH
29
COUPLING PIN
31
FASTENER TO SECURE PIN
33
ENGINE CROSS MEMBER REAR
38
CROSS MEMBERNO.3
42
CROSS MEMBER , Replaced By: A3813120017, +002A3833120360
48
ANGLE LEFT SIDE MEMBER
50
CROSS MEMBERNO.5,NO.6
52
REINFORCEMENT CROSS MEMBER TO FRAME
54
CROSS MEMBER (REAR CROSS MEMBER)
56
GUSSET PLATE RIGHT BOTTOM
58
GUSSET PLATE LEFT BOTTOM
60
GUSSET PLATE BOTTOM RIGHT
62
GUSSET PLATE BOTTOM LEFT
65
ANGLE AT SIDE MEMBER
68
FRONT SPRING BRACKET FRONT AND REAR
70
SCREW , Replaced By: A3229903101
70
SCREWM 14X14X18X32
72
SCREWM 14X14X27X45
75
CONSOLE LEFT
79
REAR SPRING BRACKET , Replaced By: A3533250101
79
REAR SPRING BRACKET FRONT
82
RIVET FRAME TRUSS TO SIDE MEMBER
94
BODY SUPPORT
999
SCREWM 12X13X35X52
999
SCREWM 14X15X35X52
999
SCREWM 14X15X31X48
999
SCREWM 10X11X26.5X46
999
SCREWM 12X12X10X25
999
SCREW , Replaced By: A3229903101
999
SCREW , Replaced By: N308676016020
999
SCREWM 16X16X22X40
999
SCREW , Replaced By: N000961016118
999
SCREWM 12X12X11X26
999
SCREWM 12X12X13X28
999
SCREWM 16X16X20X38
999
SCREWM 16X16X30X48
999
SCREWM 16X16X32X50
999
SCREWM 14X14X18X34
999
SCREWM 12X12X15X30
999
SCREWM 12X12X17X32
999
SCREWM 18X18X23X45
999
SCREW , Replaced By: N000961018043
999
SCREWM 16X18X63X85
999
SCREWM 16X16X20X45
999
SCREWM 12X13X13X30
999
SCREWM 12X13X23X40
999
SCREWM 16X18X26X48
999
SCREWM 12X13X12X29
999
SCREWM 16X18X38X60
999
SCREWM 12X13X25X42
999
SCREWM 16X16X38X90
999
SCREWM 14X15X18X35
999
SCREWM 16X17X24X44
999
SCREWM 12X13X63X85
999
SCREWM 12X13X58X80
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER
999
FITTED SCREWM 10X11X14X28
999
FITTED SCREWM 10X11X24X40
999
FITTED SCREWM 18X19X57X85
999
FITTED SCREWM 10X11X25X38
999
FITTED SCREWM 18X19X25X45
999
FITTED SCREWM 18X19X38X60
999
FITTED SCREWM 18X19X33X55
999
SCREW , Replaced By: N304017008023
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017010002
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010028
999
NUT , Replaced By: N304032010002
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO SUPPORT
999
NUT BRACKET TO SIDE MEMBER
999
SCREW CONSOLE TO SIDE MEMBER M 12X1.5X35, UP TO IDENT NO. 734559 EXCEPT FOR 500001-599999
999
SCREW BRACKET TO SIDE MEMBER M 12X28
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREWM 18X18X33X55
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
SCREW CABLE HARNESS MOUNTING
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW CLAMP TO EXHAUST PIPE
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
NUT
999
NUT BATTERY CABLE
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
HEXAGON HEAD BOLT , Replaced By: A0029902704
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW CONSOLE TO FRAME
999
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
999
RIVET REINFORCEMENT TO SIDE MEMBER
999
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X26 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REAR CROSS MEMBER 12X42 MM
999
RIVET BRACKET TO FRAME
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
NUT STEERING SUPPORT TO FRAME
999
NUT CONSOLE TO SUPPORT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER FITTING TO BRACKET
999
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
NUT , Replaced By: N910113012003
999
NUT , Replaced By: N910113014000
999
NUT , Replaced By: N910113016001
999
NUT TORSION BAR TO BEARING BRACKET,5 904661
999
SCREWM 16X17X28X48
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW , Replaced By: N308676012013
999
SCREW , Replaced By: A3959900501
999
SCREW , Replaced By: A0029908201
999
SCREWM 14X14X17X35
999
SCREW , Replaced By: A3169900014
999
SCREWM 14X14X22X40
999
MOUNTING CAB TO BODY SUPPORT, UP TO CHASSIS 708390
999
MOUNTING , Replaced By: A3358900101
999
CONSOLE , Replaced By: A3453107263
999
SCREWM 16X18X18X40
999
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
CONSOLE RIGHT
999
ANGLE LEFT FRONT SPRING REAR BRACKET
999
ANGLE RIGHT FRONT SPRING REAR BRACKET
999
SCREWM 12X13X18X35
999
SCREWM 12X14X13X35
999
SCREWM 14X14X24X42
999
ANGLE RIGHT
999
SCREWM 14X15X15X32
999
SCREWM 14X15X21X38
999
SCREW PLATE TO SIDE MEMBER
999
SCREWM 16X17X22X42
999
SCREWM 12X13X21X38
999
SCREWM 14X15X27X44
999
SCREWM 14X15X17X34
999
SCREWM 14X15X29X46
999
SCREWM 14X15X19X36
999
SCREWM 12X13X15X32
999
SCREW , Replaced By: A0009906314
999
SCREWM 14X14X32X50
