Поз.
Артикул
Описание

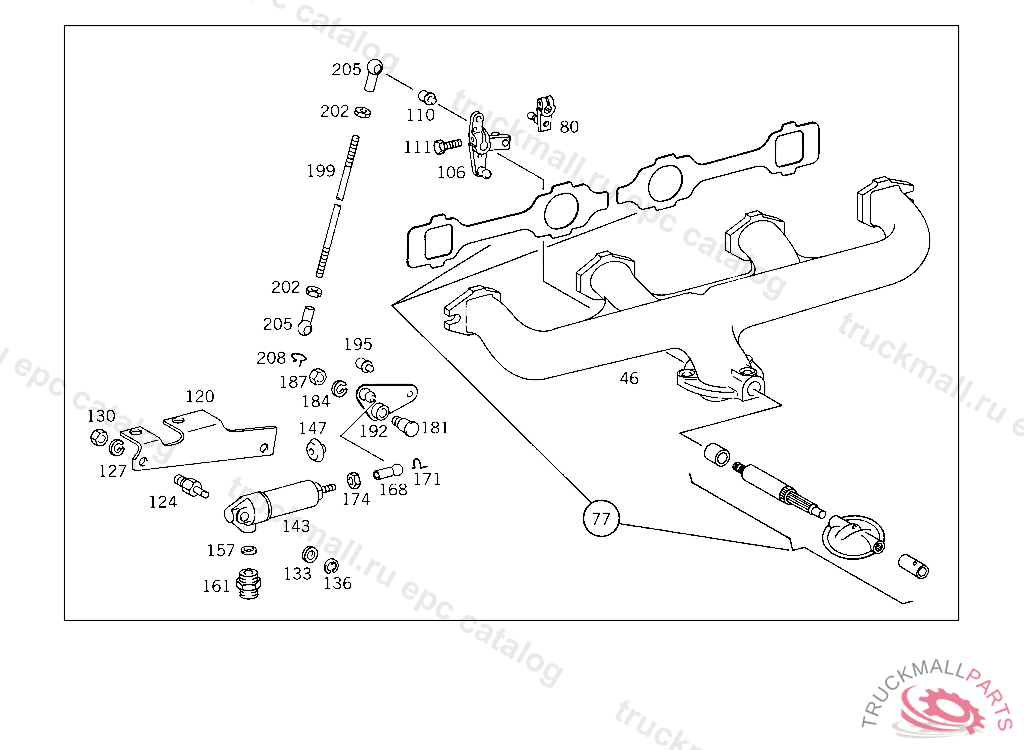

46
EXHAUST MANIFOLD , UP TO ENGINE 435602 ALSO INSTALLED ON 427634,429692,432512-432519,432957-432962,433029-433031,433078,433235-433237,433239-433241,433328, 433638-433641,433998-434000,434189-434191,434341-434343,434459-434461,434620-434623,434792-434795, 434888-434891.
77
VALVE PARTS KIT
77
REPAIR KIT , Replaced By: A3521400863
80
LEVER EXHAUST-BRAKE THROTTLE VALVE,371605
80
ELBOW
106
LEVER THROTTLE VALVE
110
BALL PIVOT
111
SCREW BOOT TO BATTERY CASE
120
BRACKET EXHAUST BRAKE COMPRESSED AIR CYLINDER
124
PIN COMPRESSED AIR CYLINDER TO BRACKET
127
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
130
NUT BRACKET TO SUPPORT AND TO END PIECE
133
WASHER EXHAUST MUFFLER TO STRAP
133
WASHER , Replaced By: N000125008443
136
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
143
CYLINDER COMPRESSED AIR CYLINDER
147
SLEEVE
157
SEAL RING LINE CONNECTION
161
FITTING , Replaced By: A0029906071
161
TS DOUBLE FITTING SOLENOID VALVE
168
BALL SOCKET ROD TO BALL PIVOT
171
SECURING CLIP. CIRCLIP
174
NUT , Replaced By: N304035008001
181
PIN LEVER TO BRACKET
184
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
187
NUT BRACKET TO SUPPORT AND TO END PIECE
192
LEVER EXHAUST BRAKE INTERMEDIATE LEVER
195
BALL PIVOT
199
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
199
PULL ROD , Replaced By: N900331008420
202
NUT , Replaced By: N304035008001
205
BALL SOCKET ROD TO BALL PIVOT
208
SECURING CLIP. CIRCLIP
999
CYLINDER , Replaced By: A0004301326, +001N900331008317
999
SLEEVE , Replaced By: A0007630553
999
BALL SOCKET , Replaced By: A0009912422
999
BALL SOCKET PULL ROD TO LEVER
999
BALL SOCKET ACCELERATOR CONTROL
999
FITTING , Replaced By: A0039979072
999
SPRING , Replaced By: A3529931910
999
CONTROL SHAFT
999
BALL PIVOT LEVER
999
SPACER TUBE CONTROL SHAFT
999
SPACER TUBE
999
LEVER EXHAUST BRAKE CONTROL, NOT USED
999
SHAFT , Replaced By: A3141440047
999
STOP
999
HINGE
999
SHAFT CONTROL, WITH DIESEL ENGINE
999
SPACER TUBE , Replaced By: A4070720353
999
EXHAUST MANIFOLD , Replaced By: A3521401809
999
BUSHING , Replaced By: A3521441350
999
BUSHING , Replaced By: A3521441250
999
ROD
999
BUSHING , Replaced By: A4039920001
999
SHAFT , UP TO ENGINE 435602 ALSO INSTALLED ON 427634,429692,432512-432519,432957-432962,433029-433031,433078,433235-433237,433239-433241,433328, 433638-433641,433998-434000,434189-434191,434341-434343,434459-434461,434620-434623,434792-434795, 434888-434891.
999
LEVER , Replaced By: A3520703721
999
SHAFT
999
LEVER , Replaced By: A3520709221
999
SHAFT , NOT USED
999
LEVER , Replaced By: A3960700121
999
ELBOW WITH THROTTLE VALVE FOR EXHAUST BRAKE
999
ELBOW , Replaced By: A3520902428, +001A4031400825, +001A3521405832, +001A3601440313, +001A3521441614, +001A3521440153, +002N000933006124, +002N000934006007
999
LEVER
999
EXHAUST MANIFOLD WITH THROTTLE VALVE,021790
999
BEARING
999
BEARING EXHAUST BRAKE
999
ROD EXHAUST BRAKE OPERATING MECHANISM
999
SHAFT , Replaced By: A3521400528
999
LEVER , Replaced By: A3521401325
999
EXHAUST MANIFOLD , Replaced By: A3521402311
999
EXHAUST MANIFOLD ,021789, Replaced By: A3521400111, +001A3521441047
999
EXHAUST MANIFOLD , Replaced By: A3521401811
999
BEARING ,519631
999
EXHAUST MANIFOLD WITH BUSHINGS
999
EXHAUST MANIFOLD , Replaced By: A3521402609, +001A3521401525, +001A3121440040, +001N000933005026, +001N000934005008
999
LEVER EXHAUST BRAKE
999
EXHAUST MANIFOLD , Replaced By: A3521402609, +001A3521401325, +001N000933005026, +001N000934005008
999
EXHAUST MANIFOLD
999
LEVER EXHAUST BRAKE
999
LEVER
999
LEVER
999
EXHAUST MANIFOLD
999
EXTENSION
999
BUSHING
999
BUSHING MOUNTING MATERIAL, TO BE ADAPTED DURING ASSEMBLY
999
BUSHING *** 13 MM
999
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
999
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
999
FLANGE
999
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
999
ROD CONTROL LEVER, WITH DIESEL ENGINE WITH OM 352 ENGINE
999
BRACKET
999
BALL PIVOT ,805185
999
BALL PIVOT , UP TO ENGINE 435602 ALSO INSTALLED ON 427634,429692,432512-432519,432957-432962,433029-433031,433078,433235-433237,433239-433241,433328, 433638-433641,433998-434000,434189-434191,434341-434343,434459-434461,434620-434623,434792-434795, 434888-434891.
999
SPRING CONTROL SHAFT,5 005403
999
LEVER CONTROL
999
BUSHING MOUNTING
999
SCREW
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER
999
NUT BATTERY CABLE TO CABLE CONNECTOR,5 193595
999
SCREW , UP TO ENGINE 435602 ALSO INSTALLED ON 427634,429692,432512-432519,432957-432962,433029-433031,433078,433235-433237,433239-433241,433328, 433638-433641,433998-434000,434189-434191,434341-434343,434459-434461,434620-434623,434792-434795, 434888-434891.
999
NUT BALL PIVOT TO LEVER
999
STUDTO 000 430 10 26
999
LOCK PLATE LEVER TO BRACKET
999
BALL PIVOT
999
BALL PIVOT , Replaced By: A3129910120
999
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
999
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
DOUBLE FITTING , Replaced By: A0019972872
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT BATTERY CABLE MOUNTING,5 193595
999
SCREW BRACKET TO CYLINDER CRANKCASE, 043962 WITH 100 PS DIN 035851 WITH 100 PS DIN 098925 WITH 100 PS DIN
999
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
