Mercedes N900331008419 - ТЯГА

OM 352 A MBSA 353.939

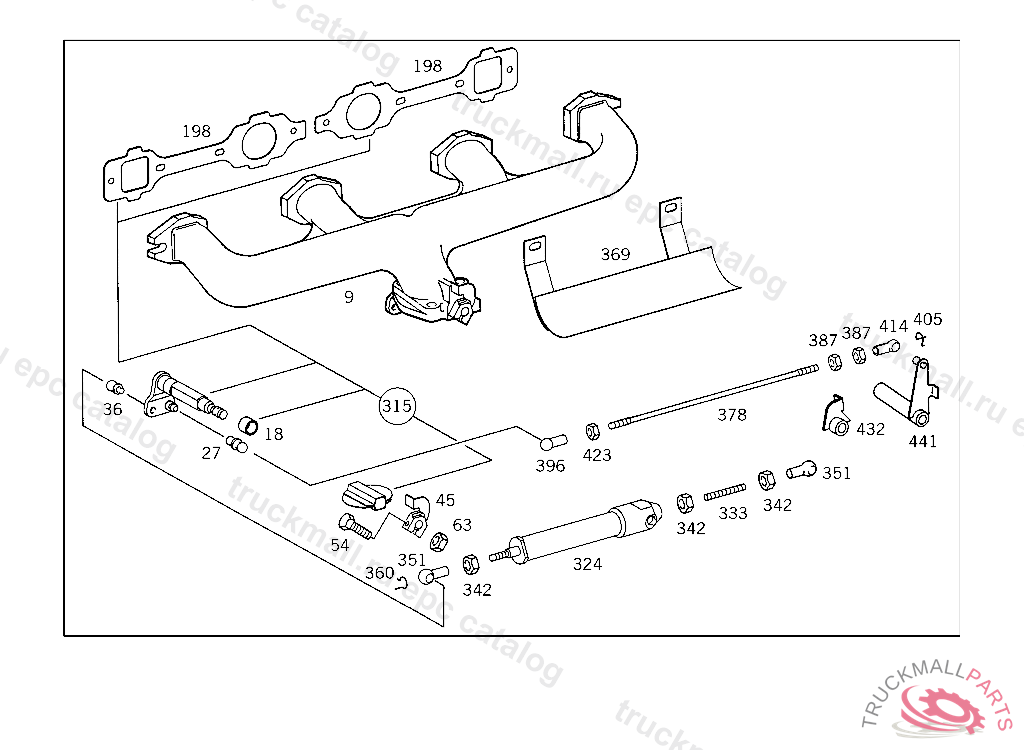

14 INTAKE AND EXHAUST MANIFOLDS - 001 INTAKE AND EXHAUST MANIFOLDS IL. 1

Поз.
Артикул
Описание
198
A3521420480
GASKET EXHAUST MANIFOLD
198
A3521420280
GASKET , Replaced By: A3521420480
324
A0004301326
CYLINDER LOCKING MECHANISM
333
N900331008419
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
342
N304035008001
NUT
351
N071805013203
BALL SOCKET ROD TO BALL PIVOT
360
N071805013402
SECURING CLIP. CIRCLIP
378
N900331006630
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
387
N000934006007
NUT BALL PIVOT TO LEVER
396
A0009915222
BALL SOCKET ACCELERATOR CONTROL
405
N071805010403
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
414
A0009912422
BALL SOCKET PULL ROD TO LEVER
423
N304032006005
NUT L.H. THREAD
441
A3521401129
BEARING
999
A3521420612
CLAMPING PIECE , Replaced By: A3521420912
