Поз.
Артикул
Описание

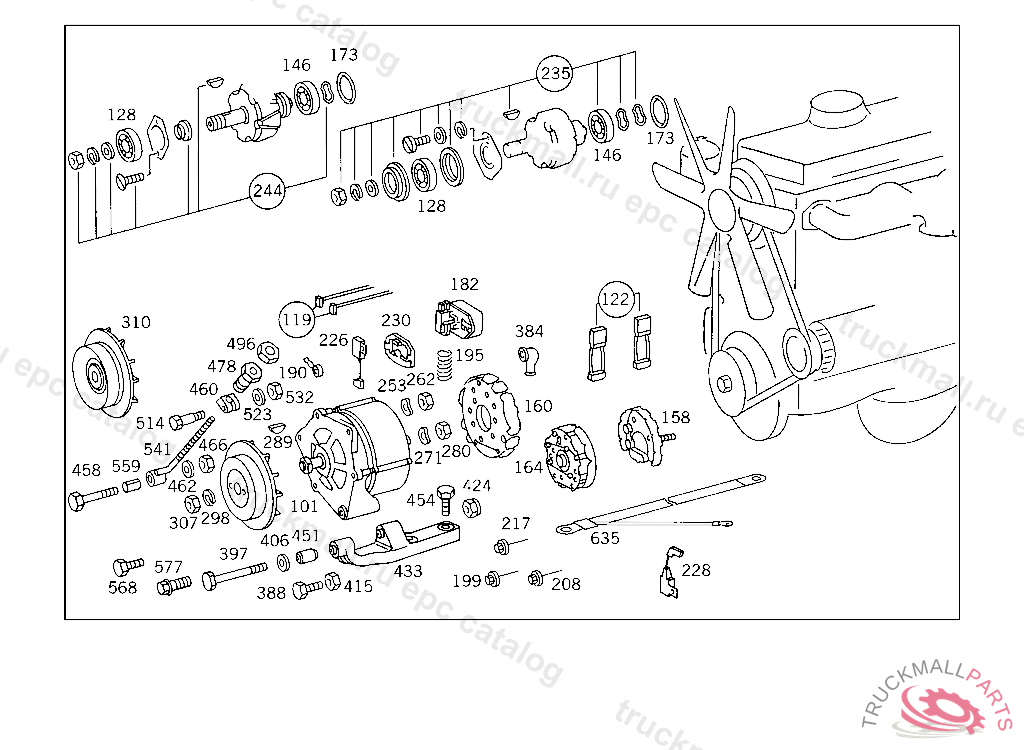

101
ALTERNATOR
101
ALTERNATOR
101
ALTERNATOR14V/65A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
ALTERNATOR THREE-PHASE, UP TO IDENT NO. 556499 EXCEPT 543411,543418,551148,551588,551771,552021,552392,552551,552654,552687,552694,552840,552846,553000, 553005,553105,553112,553185,553210,553226,553264,553332,553602,553651,553660,553795,554081,554103, 554107,554213,554266,554270,554333,554993,555186,555885,555902,555992,556045,556120,556138,556143, 556146,556169,556181,556184,556187,556189,556194-556197,556215. PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
ALTERNATOR , 74 KW(100PS/DIN) 031149 81 KW(110PS/DIN) 025865 94 KW(126PS/DIN) 068814 110 KW (150PS/DIN) 003727 LESS INDIVIDUAL PARTS, Replaced By: A0021543802, +001A0001552518
101
ALTERNATOR , Replaced By: A0041547102
101
ALTERNATOR , 74 KW(100PS/DIN) 031149 81 KW(110PS/DIN) 025865 94 KW(126PS/DIN) 068814 110 KW (150PS/DIN) 003727 LESS INDIVIDUAL PARTS, Replaced By: A0021549102, +001A0001554218
101
ALTERNATOR , Replaced By: A0031547502
101
ALTERNATOR
101
ALTERNATOR , LESS INDIVIDUAL PARTS, Replaced By: A0051546002
101
ALTERNATOR , MB PART NO.004 154 89 02BOSCH PART NO. 0 120 400 904,MB PART NO.005 154 60 02BOSCH PART NO. 0 120 489 757, Replaced By: A0041548802, +001A0001556318
101
ALTERNATOR , LESS INDIVIDUAL PARTS, Replaced By: A0061542402
101
ALTERNATOR , MB PART NO.003 154 39 02BOSCH PART NO. 0 120 400 700 MB PART NO.005 154 29 02BOSCH PART NO. 0 120 489 723 MB PART NO.005 154 33 02BOSCH PART NO. 0 120 489 725, Replaced By: A0051543302
101
ALTERNATOR , Replaced By: A0071542602
101
ALTERNATOR , Replaced By: A0071542302, +001A0001557118
101
ALTERNATOR , Replaced By: A0071542702
101
ALTERNATOR
101
ALTERNATOR , MB PART NO.004 154 89 02BOSCH PART NO. 0 120 400 904,MB PART NO.005 154 60 02BOSCH PART NO. 0 120 489 757, Replaced By: A0051543302
101
ALTERNATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 845546, Replaced By: A0071542302
101
ALTERNATOR , Replaced By: A0091540702
119
CARBON BRUSH SET
119
CARBON BRUSH SET , Replaced By: A0001548114
119
CARBON BRUSH SET
119
CARBON BRUSH SETTO 007 154 27 02
119
CARBON BRUSH SETTO 009 154 07 02
119
CARBON BRUSH SETTO 005 154 34 02
122
CARBON BRUSH SETTO 005 154 32 02
122
CARBON BRUSH SETTO 007 154 27 02
128
GROOVED BALL BEARING
128
BALL BEARINGTO 005 154 32 02
128
GROOVED BALL BEARING , TO 002 154 38 02 TO 003 154 67 02 TO 002 154 46 02 TO 004 154 46 02
128
GROOVED BALL BEARING
128
BALL BEARING , Replaced By: A0059812225
128
GROOVED BALL BEARING , Replaced By: N000625436303
146
BALL BEARING , Replaced By: A0059812225
146
BALL BEARING , Replaced By: A0079816625
146
BALL BEARING , Replaced By: A0089811225
146
BALL BEARINGTO 005 154 34 02
146
GROOVED BALL BEARING
146
BALL BEARINGTO 007 154 27 02, 009 154 07 02
146
GROOVED BALL BEARING
146
BALL BEARINGTO 005 154 32 02
146
BALL BEARINGTO 007 154 27 02, 009 154 07 02
158
RECTIFIER
158
RECTIFIERTO 005 154 34 02
158
RECTIFIER
158
RECTIFIER , Replaced By: A0001544716
158
RECTIFIER , Replaced By: A0011541516
158
RECTIFIER , Replaced By: A0011541116
158
RECTIFIER , Replaced By: A0011541616
158
RECTIFIER , Replaced By: A0011542116
158
RECTIFIER , Replaced By: A0011542716
158
RECTIFIER , Replaced By: A0011542116
160
RECTIFIER , Replaced By: A0001545716
160
RECTIFIER
160
RECTIFIERTO 005 154 29 02
160
RECTIFIERTO 005 154 83 02,006 154 67 02
164
RECTIFIER
164
RECTIFIERTO 005 154 52 02
164
RECTIFIER
164
RECTIFIERTO 344 150 73 50
173
SEAL RING005 154 60 02,006 154 24 02
173
SEAL RINGTO 005 154 34 02
173
RINGTO 007 154 27 02
182
REGULATORTO 007 154 27 02
182
REGULATOR AND CUT-OUT (ELECTRONIC FIELD REGULATOR) TO 005 154 32 02
182
REGULATORTO 007 154 26 02
182
REGULATOR AND CUT-OUTTO 005 154 32 06
182
REGULATOR AND CUT-OUTTO 005 154 34 02
182
REGULATOR AND CUT-OUT , Replaced By: A0021545806
182
REGULATOR AND CUT-OUT , Replaced By: A0001541805
182
REGULATOR AND CUT-OUT , Replaced By: A0001541805
182
REGULATOR AND CUT-OUT , Replaced By: A0001541705
190
SPRINGTO 004 154 75 02
190
SPRING
190
SPRINGTO 344 154 71 02
195
SPRINGTO 344 154 71 02
195
SPRING
195
SPRINGTO 004 154 75 02
195
SPRING , Replaced By: A0001541193
195
SPRING , Replaced By: A0001541193
199
DIODE , Replaced By: A0005485018
199
DIODE , Replaced By: A0015481018
199
DIODE POS.
199
DIODE
199
DIODE POS., TO 003 154 26 02
199
DIODE EXCITER TO 003 154 33 02
208
DIODE
208
DIODETO 003 154 33 02
208
DIODE
208
DIODETO 003 154 33 02
208
DIODE , Replaced By: A0015480018
208
DIODE , Replaced By: A0015481118
208
DIODE , Replaced By: A0015481418
208
DIODE , Replaced By: A0015481518
208
DIODE NEG.
217
DIODE NEG.
217
DIODE , Replaced By: A0005485018
217
DIODE , Replaced By: A0015481018
217
DIODE , Replaced By: A0015481118
217
DIODE , Replaced By: A0015481418
217
DIODE , Replaced By: A0015481518
217
DIODETO 003 154 33 02
217
DIODE POS.
217
DIODETO 003 154 33 02
217
DIODE
217
DIODE EXCITER TO 003 154 33 02
226
CONDENSER
228
CONDENSER
228
CONDENSERTO 004 154 75 02
228
CONDENSER
228
CONDENSER , Replaced By: A0011566901
230
GASKET
235
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
235
REPAIR KIT
235
REPAIR KIT , Replaced By: A0001500472
244
REPAIR KIT , Replaced By: A0001500372
244
REPAIR KIT
244
REPAIR KIT ROTOR TO 005 154 52 02
253
SPRING WASHER ALTERNATOR CONNECTION D+
262
NUT IN CASE OF SUBSEQUENT INSTALLATION
262
NUT , Replaced By: N304032005005
271
SPRING WASHER LICENSE PLATE TO BRACKET
280
NUT BALL PIVOT TO LEVER
289
WOODRUFF KEY POWER STEERING PUMP
289
WOODRUFF KEY
298
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
298
LOCK WASHER , Replaced By: N912004014100
307
NUT , Replaced By: N308675014000
307
NUT , Replaced By: N308675014002
307
NUT RELEASE BEARING LUBRICATION
310
FAN ALTERNATOR
384
BOOTTO 003 154 39 02
384
BOOT HEATER PLUGS
384
BOOT , Replaced By: A0005463335
388
SCREW BRACKET TO ALTERNATOR
397
SCREW ALTERNATOR MOUNTING
406
WASHER ELBOW TO TURBOCHARGER
406
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
406
WASHER , Replaced By: A6319900140
415
NUT , 002130
424
NUT AIR CLEANER ELEMENT
433
BRACKET
433
BRACKET
433
BRACKET ALTERNATOR
433
BRACKET ALTERNATOR
433
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 814959, Replaced By: A3661500473
433
BRACKET , Replaced By: A3661500773
451
BUSHING
451
BUSHING
451
BUSHING
451
BUSHINGTO 355 150 03 72,366 150 13 72
454
SCREW CONNECTOR TO REAR SHIFTING ROD
454
SCREW SHIFTING ROD TO JOINT
454
SCREW BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT M 10X40,4 338291
454
SCREW
454
SCREW CROSS MEMBER TO FRAME
454
SCREW , Replaced By: N304017010051
454
SCREW , Replaced By: N304017010047
458
SCREW ,5 903514, Replaced By: N000960012353
458
SCREW TORSION BAR TO SHACKLE,5 903514
460
CLAMPING PIECE TIGHTENER PULLEY
460
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
460
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
462
WASHER
466
NUT STRAP TO SUPPORT
478
NUT TIGHTENER PULLEY TO LEVER
478
NUT ALTERNATOR
496
NUT , Replaced By: N304035012002
496
NUT
514
SCREW CLAMPING BOLT TO BRACKET
523
WASHER ELBOW TO TURBOCHARGER
523
WASHER , Replaced By: A6319900140
532
NUT , Replaced By: N304032008006
532
NUT
541
CLAMPING BOLT (CLAMPING BOLT)
541
CLAMPING BOLT (CLAMPING BOLT)
541
CLAMPING BOLT
541
CLAMPING BOLT , Replaced By: A3551500372
541
CLAMPING BOLT , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3521503472
541
CLAMPING BOLT , Replaced By: A3661500872
541
CLAMPING BOLT , Replaced By: A3551500372
559
BUSHING
559
BUSHING
568
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
568
SCREW BRACKET TO LEFT SIDE MEMBER
568
SCREW , Replaced By: N304017010035
577
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X1.5X115
577
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
635
GROUND STRAP FROM ENGINE TO FRAME, FROM CHASSIS 018694,ALSO INSTALLED ON 018411,018469,018489,018529,018549,018589,018610,EXCEPT FOR 018709,018713,018731,018735,018752,018756,018777,018784,018805,018817,018839,018843,018859,018871, 018874,018883,018892,018901,018907,018911,018917,019001,019023,019044,019064,019085,019135,019157, 019180,019221,019243,019276,019319,019361,019403,019424,019488,019530.
635
ELECTRIC CABLE GENERATOR TO GENERATOR SUPPORT
635
GROUND STRAP ,396803
635
GROUND CABLE
635
GROUND CABLE , Replaced By: A3835400241
635
GROUND STRAP
635
GROUND CABLE GROUND TO ENGINE AND TO FRAME, UP TO CHASSIS 018693 EXCEPT FOR 018411,018469,018489,018529,018549,018589,018610 ALSO INSTALLED ON 018709,018713,018731,018735,018752,018756,018777,018784,018805,018817,018839,018843,018859,018871, 018874,018883,018892,018901,018907,018911,018917,019001,019023,019044,019064,019085,019135,019157, 019180,019221,019243,019276,019319,019361,019403,019424,019488,019530.
999
TERMINAL TERMINALS: B+, B-, D+, W
999
CONTROL LEVERTO 001 151 96 01
999
CONTROL LEVERTO 004 151 58 01/003 151 87 01
