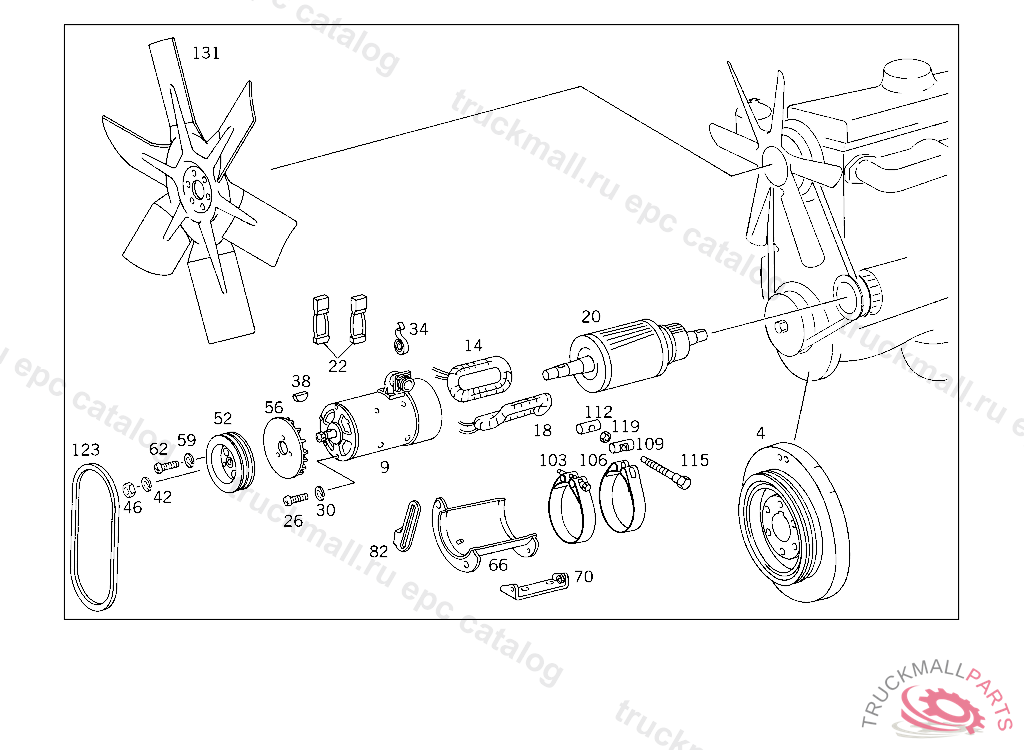

Поз.
Артикул
Описание
4
VIBRATION ABSORBER TWO-GROOVE
4
VIBRATION ABSORBER , Replaced By: A3520303103
4
VIBRATION ABSORBER , Replaced By: A3520304203
4
VIBRATION ABSORBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 408069YEAR OF MANUFACTURE 1995, Replaced By: A3520305903
9
ALTERNATOR600 W/12 V
14
COIL
18
COIL
20
ARMATURE
22
CARBON BRUSH SET
26
SCREW MAIN CABLE HARNESS
30
LOCK WASHER , ON SPECIAL REQUEST
30
LOCK WASHER BRACKET TO STEERING COLUMN END
34
SPRINGTO 004 154 75 02
34
SPRING , Replaced By: A0001541193
34
SPRING
38
WOODRUFF KEY POWER STEERING PUMP
42
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
46
NUT RELEASE BEARING LUBRICATION
46
NUT , Replaced By: N308675014000
46
NUT , Replaced By: N308675014002
52
PULLEY
56
FAN
59
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
62
SCREW
66
BEARING BRACKET BOTTOM
70
SUPPORT
82
CLAMP
103
STRAP
106
STRAP
109
PIN
112
PIN
115
SCREW
119
NUT
123
V-BELT12.5X1500
123
V-BELT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0039973192
131
FAN
131
FAN
131
FAN
999
SPRING , Replaced By: A0001541493
999
V-BELT
999
SCREW BRACKET TO APPARATUS SUPPORT
999
SCREW , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3271550723
999
PIN ,000032
999
SPRING
999
LOCK
999
BEARING BRACKET ,041978
999
RETAINER ,041978
999
PULLEY ,041978
999
PULLEY WATER PUMP
999
INTERMEDIATE PIECE
999
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
999
CYLINDRICAL PIN
999
WASHER
999
SCREW , Replaced By: A0069909301
999
SCREW , Replaced By: N304017010047
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NARROW V-BELT
999
NARROW V-BELT KIT
999
SCREW CONNECTOR TO REAR SHIFTING ROD
999
SCREW SUPPORT AND BRACKET TO CYLINDER CRANKCASE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
