Mercedes N304032006004 - Гайка / mutter

E 280 210.663 FROM MODELLJAHR CODE 800

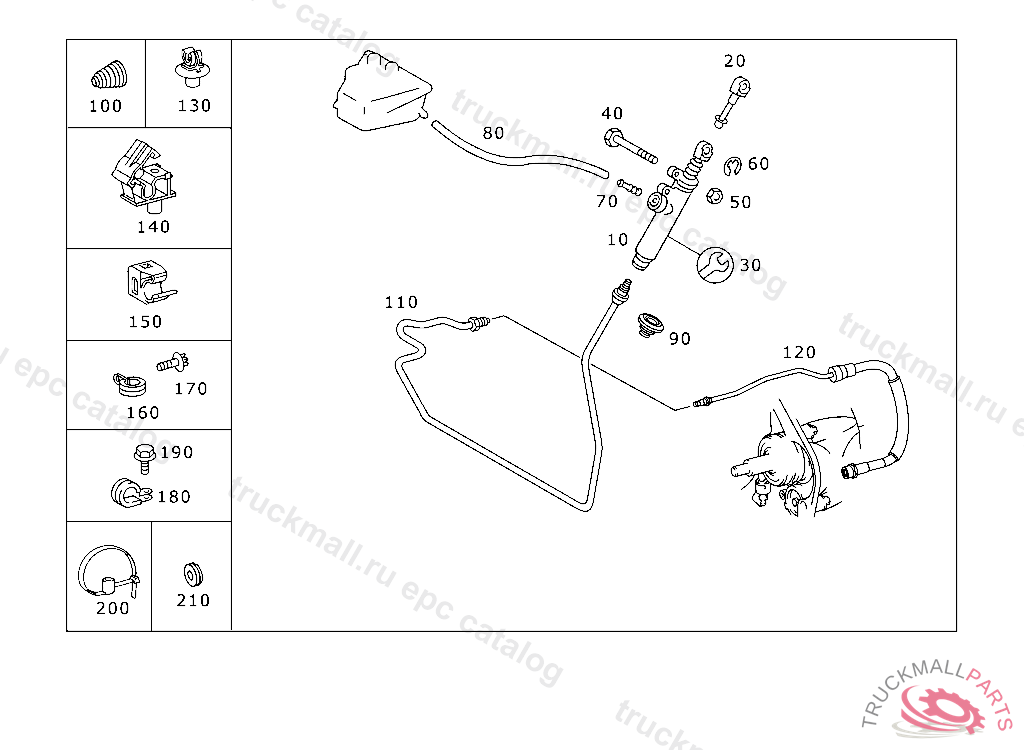

29 PEDAL ASSEMBLY - 030 PEDAL ASSEMBLY HYDRAULICS

Поз.
Артикул
Описание
10
A2022900112
MASTER CYLINDER. CYLINDER
50
N304032006004
NUT SPRING-LOADED PUSH ROD
70
A0002951036
INTERMEDIATE PIECE REFILLING LINE TO MASTER CYLINDER
90
A2012950383
BOOT
100
A1232950183
BOOT FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER
110
A2102902513
LINE FROM MASTER CYLINDER TO CONNECTION POINT, NO LONGER AVAILABLE
110
A2102902613
LINE FROM MASTER CYLINDER TO CONNECTION POINT
120
A2102901913
LINE CLUTCH LINE
130
A0009957165
CLAMP
140
A0019951165
CLAMP PEDAL ASSEMBLY HYDRAULICS, F 03089920000831 R 00225920001012 NO LONGER AVAILABLE
160
A0009954835
CLAMP LINE TO TRANSMISSION
170
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
180
N916016006208
CLAMP SENSOR CABLE TO BRACKET
190
N914145006400
SCREW CLUTCH LINE TO TRANSMISSION M 6X12
