Поз.
Артикул
Описание

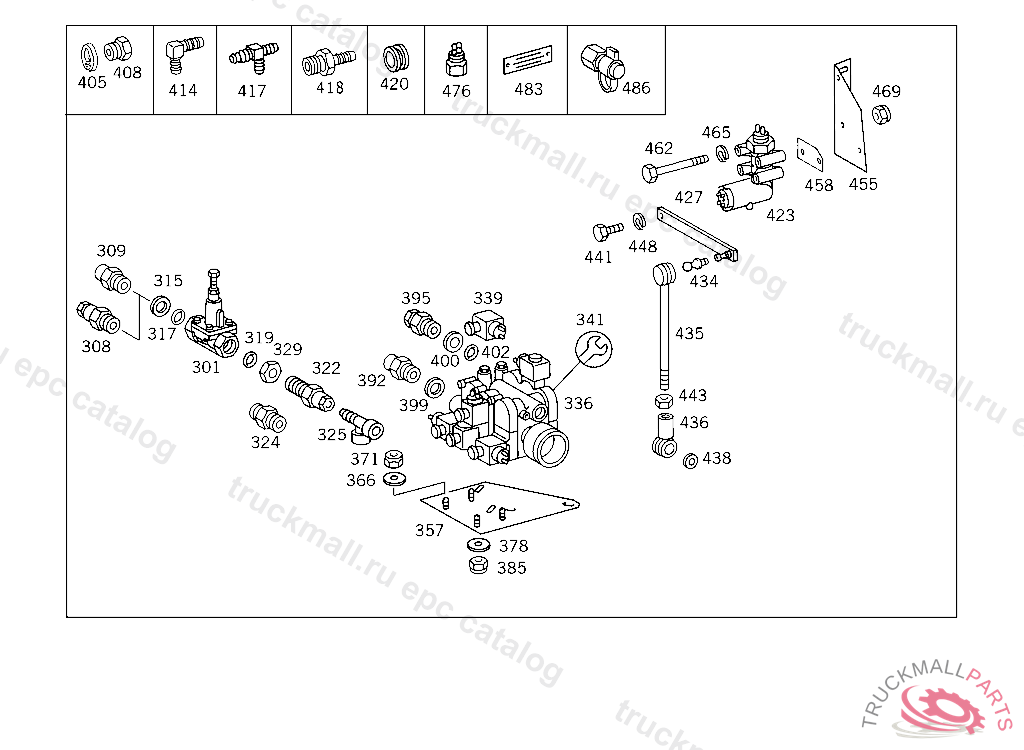

301
VALVE (OVERFLOW VALVE) WABCO
308
FITTING AIR RESERVOIR
308
FITTING CHECK VALVE
309
FITTING LINE CONNECTION
315
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
315
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
317
O-RING CHECK VALVE TO AIR RESERVOIR
319
SEAL RING LINE CONNECTION
322
FITTING LINE CONNECTION
324
FITTING ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
325
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
329
NUT CHECK VALVE TO AIR RESERVOIR
336
VALVE REAR AXLE
339
MAGNET
339
MAGNET
341
REPAIR KIT SOLENOID VALVE
357
BRACKET SOLENOID VALVE
366
WASHER BRACKET TO LEFT SIDE MEMBER
366
WASHER , Replaced By: N009021008213
371
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
371
NUT , Replaced By: N913004008001
378
WASHER BRACKET TO LEFT SIDE MEMBER
378
WASHER , Replaced By: N009021008213
385
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
385
NUT , Replaced By: N913004008001
392
FITTING LINE CONNECTION
395
FITTING CHECK VALVE
399
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
400
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
402
O-RING CHECK VALVE TO AIR RESERVOIR
405
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
408
SCREW. UNION SCREW LINE CONNECTION
414
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
417
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 12 MM
418
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
420
GROMMET
423
TRAVEL SENSOR REAR AXLE,K 186868
427
LEVER TRAVEL SENSOR
427
LEVER ACTUATION OF POSITION SENSOR
434
BALL PIVOT BOTTOM B13X5 MM
435
BALL SOCKET LEVEL ADJUSTMENT VALVE CONTROL
435
BALL SOCKET LINK TO RIGHT SIDE MEMBER
436
BALL SOCKET R.H. THREAD
438
SPACER WASHER LEVEL ADJUSTMENT VALVE TO SUPPORT
441
SCREW , Replaced By: N304017006018
441
SCREW COVER PLATE TO COVER PLATE M 6 X 12
443
NUT
443
NUT , Replaced By: N304035008001
448
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
455
BRACKET FRONT AXLE TRAVEL SENSOR,069 960077635
458
SHIM RIDE LEVEL SENSOR,CENTER AND REAR AXLE,ON BRACKET
462
SCREW MASTER CYLINDER TO BRACKET
462
SCREW FRONT AXLE REGULATING SOLENOID VALVE
462
SCREW , Replaced By: N304017008043
462
SCREW , Replaced By: N304017008053
462
SCREW , Replaced By: N000933008134
462
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
462
SCREW BRACKET TO BEARING BRACKET
462
SCREW VALVE TO BRACKET M 8X55
465
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
469
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
469
NUT , Replaced By: N913004008001
476
SWITCH5,7 BAR
483
GUIDE SIGN IN ENGLISH,SWITCH-OFF PRESSURE: 9.5 BAR
483
GUIDE SIGN IN GERMAN,SWITCH-OFF PRESSURE: 9.5 BAR
483
GUIDE SIGN IN ENGLISH,SWITCH-OFF PRESSURE: 9,5 BAR
483
GUIDE SIGN IN GERMAN,SWITCH-OFF PRESSURE: 9.5 BAR
486
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
486
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
486
TEST CONNECTION
486
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
486
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
BALL SOCKET LINK TO RIGHT SIDE MEMBER, NOT USED
999
COVERING AT RESERVOIR,TOP
999
T-FITTING PRESSURE REGULATOR ON GAS MIXER
999
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
999
T-FITTING
999
VALVE FRONT AXLE LEVEL ADJUSTMENT BOSCH
999
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
999
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
