Mercedes N304032006004 - Гайка / mutter

O 405 GN 2 357.552

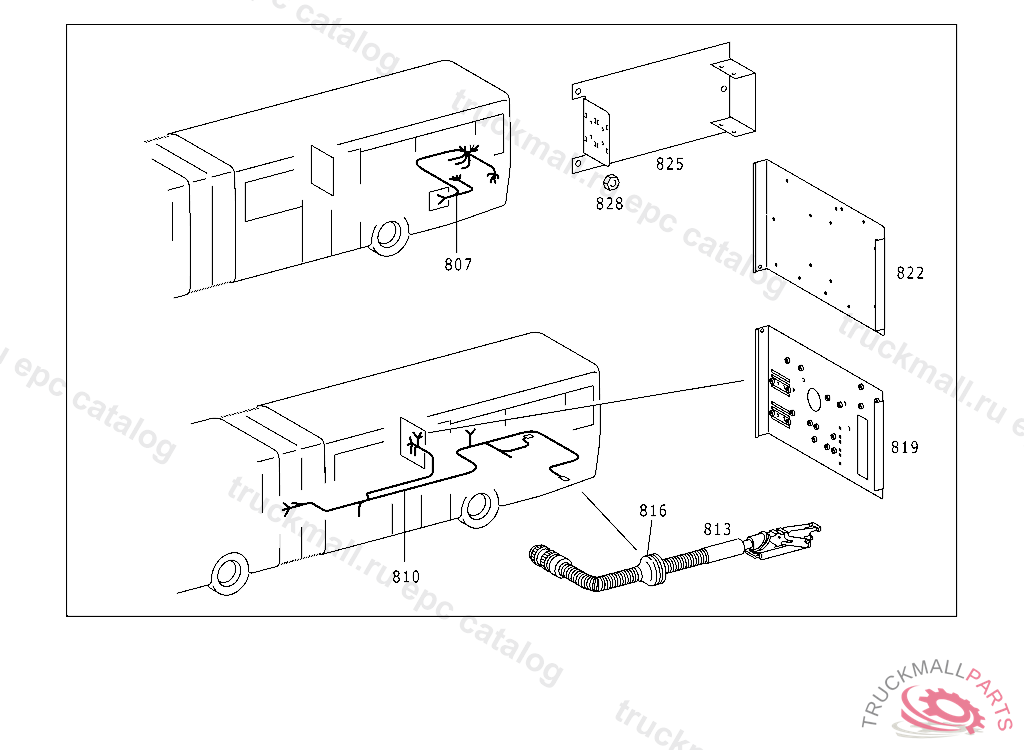

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 060 BATTERY,BATTERY MASTER SWITCH,AND CONNECTING CABLES IL. 1

Поз.
Артикул
Описание
807
A3574402705
CABLE HARNESS TANDEM ALTERNATOR
810
A3575409632
ELECTRIC CABLE REAR CARRIAGE FMR / EDC
813
A3215434310
CABLE HARNESS FROM CONTROL-UNIT PLUG-CONNECTION TO TRANSMISSION
816
A1079971581
GROMMET
819
A3575408942
PLATE
822
A3575426639
PLATE
825
A3575430340
BRACKET
828
N304032006004
NUT SPRING-LOADED PUSH ROD
999
A3575409732
ELECTRIC CABLE ELECTRIC MOTOR GEARING
999
A3575406206
CABLE HARNESS FROM ELECTR.COMPARTMT. PLUG-CONNECTION TO SWITCH & UNDERFLOOR PLUG-CONNECTION
999
A3574406134
CABLE HARNESS FROM REAR END PLUG-CONNECTION TO AUTOMATIC TRANSMISSION
999
A3215430031
CABLE HARNESS SECONDARY SWITCHBOARD
