Поз.
Артикул
Описание

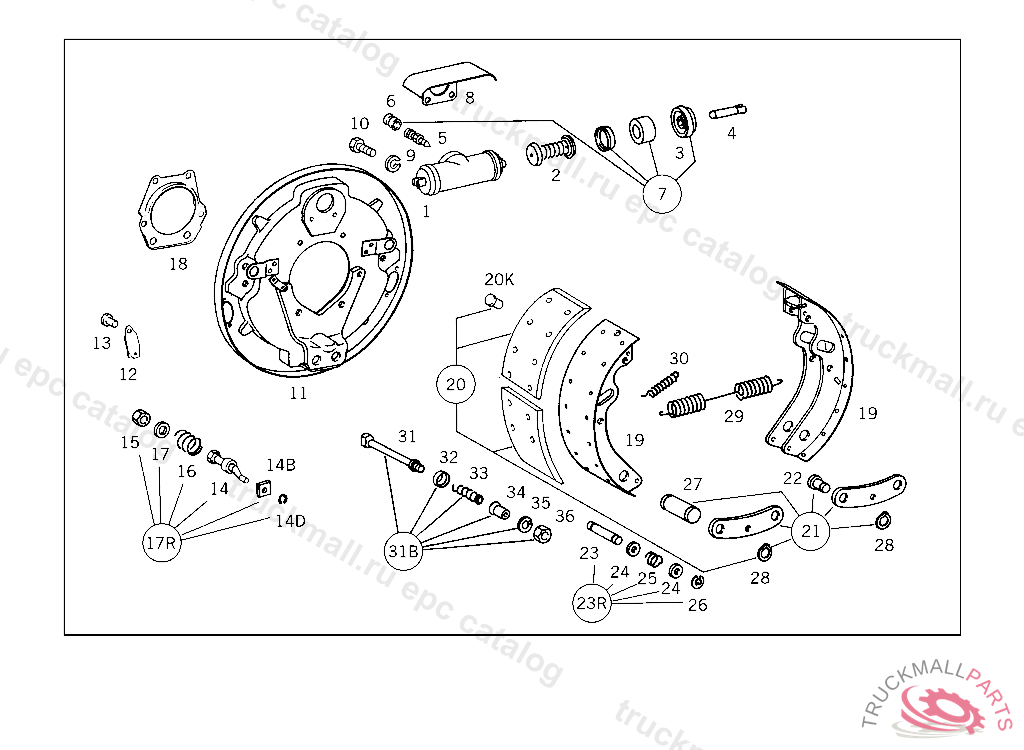

1
WHEEL BRAKE CYLINDER , Replaced By: A0034207718
1
WHEEL BRAKE CYLINDER ,A 006670
2
SPRING , FOR 002 420 76 18,003 420 77 18
3
PROTECTIVE CAPTO 002 420 76 18,003 420 77 18, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
3
PROTECTIVE CAP , Replaced By: A3164210087
4
THRUST PINTEVES
5
VALVE CLUTCH SLAVE CYLINDER
5
VALVE , Replaced By: A3075530107
6
PROTECTIVE CAP , Replaced By: A0004217187
6
PROTECTIVE CAP ,5 962906
7
REPAIR KITTO 002 420 76 18,003 420 77 18, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
8
PROTECTIVE PLATE , FOR 002 420 77 18,003 420 78 18
9
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
10
SCREW BRACKET TO SIDE MEMBER
11
BRAKE ANCHOR PLATE , Replaced By: A3524200516
11
BRAKE ANCHOR PLATE
12
INSPECTION HOLE COVER
13
RIVET
14
ADJUSTING PIN , Replaced By: A3024230619, +004A3024210329, +004A3124211073
14
ADJUSTING PIN , Replaced By: A3025860042
15
NUT , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
16
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
17
WASHER , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
18
OIL COLLECTOR , Replaced By: A3553340082
18
OIL COLLECTOR , 10/20 FROM IDENT NO. 796991,50/60 FROM IDENT NO. 790759 ALSO INSTALLED ON 500001-599999
19
BRAKE SHOE , Replaced By: A3534200019
19
BRAKE SHOE , Replaced By: A3534200819
19
BRAKE SHOE , Replaced By: A3534200819
19
BRAKE SHOE , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
20
BRAKE LINING (PARTS KIT) (BRAKE LINING 15.30 MM,8X 353 423 00 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
20
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 15.30 MM,8X 353 423 35 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
20
BRAKE LINING (PARTS KIT) (BRAKE LINING 16.30 MM,8X 353 423 01 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
20
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 16.30 MM,8X 353 423 36 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
20
BRAKE LINING (PARTS KIT) (BRAKE LINING 17.30 MM,8X 353 423 02 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
20
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 17.30 MM,8X 353 423 37 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
21
SHACKLE
21
REPAIR KIT , Replaced By: A3384200289
21
REPAIR KIT BRAKE SHOE SHACKLE, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
22
PIN SHACKLE TO BRAKE SHOE
23
PIN
24
SPACER WASHER
25
SPRING
26
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
27
PIVOT PIN SHACKLE TO BRAKE SHOE
28
LOCK RING TRANSMISSION CASE,TOP
29
SPRING , UP TO CHASSIS 910369EXCEPT FOR 501415-599999,FROM CHASSIS 910370,ALSO INSTALLED ON 501415-599999,SEE SPARE PARTS LIST 731. 3 OR 731.4
30
SPRING SHORT
31
PIN
32
FILLER
33
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
33
SPRING
34
FILLER
35
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
36
NUT
999
REPAIR KIT , Replaced By: A3024200067
999
REPAIR KIT , Replaced By: A3024202938
999
PIN FROM BRAKE SHAFT TO BRAKE LEVER
999
STUD , Replaced By: A3024230170
999
SLIDE BRAKE READJUSTMENT
999
SLIDE , Replaced By: A3024210329
999
SLIDE , Replaced By: A3024210229
999
THRUST PIN
999
SLIDE IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 302 421 01 29
999
ADJUSTER. REPAIR KIT READJUSTMENT OF REAR WHEEL BRAKE,1 239645
999
THRUST SHACKLE , UP TO REAR AXLE029311, Replaced By: A3024201419, +001A3024230874, +001A3024940109, +001N000933008106, +001N912004008102
999
REPAIR KIT BRAKE CAMSHAFT BEARING, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
DRUCKFEDER. SPRING , Replaced By: A3145860142
999
WASHER FRONT AXLE, NOT USED
999
SEAL RING101
999
HOSE , Replaced By: A0009872827
999
LOOM TIE
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RINGTO 000 431 24 14
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
SEAL RING , Replaced By: A0179974148
999
FITTING , Replaced By: A0029906171
999
SEAL RINGTO 000 431 24 14
999
SEAL RINGTO 000 431 86 14
999
FITTING AT DISTRIBUTOR,4 481289
999
SEAL RING42X21.5 MM
999
REPAIR KITTO 001 431 65 14,000 431 24 14
999
SEAL RING
999
FITTING (PARTS KIT),LINE RUPTURE
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT , FROM 626
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KIT , UP TO 625
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
VALVE
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
LOOM TIE LINE MOUNTING
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
SEAL CONE LINE CONNECTION
999
REPAIR KIT , Replaced By: A0004301407
999
REPAIR KIT , Replaced By: A0004301107
999
REPAIR KIT , Replaced By: A0034201724
999
REPAIR KITBOSCH
999
REPAIR KITTO 001 429 52 44
999
CUP101
999
CUPTO BOSCH-NR.0481 027 104
999
CUP , Replaced By: A0014312386
999
CUPTO 000 431 24 14
999
CUP
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 86 14
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
REPAIR KITTO 000 431 76 14
999
GROMMET
999
SEAL RING
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW. UNION SCREW LINE CONNECTION
999
SPRING , Replaced By: A0009935205
999
BANJO UNION , Replaced By: N915052006013
999
T-FITTING , Replaced By: N074317000100
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SLEEVE , Replaced By: N915062006000
999
GASKETTO 000 429 16 30
999
VALVE , Replaced By: A0004320807
999
CUPTO 000 431 76 14
999
PROTECTIVE CAPTO 000 431 24 14
999
CUP , Replaced By: A0015864342
999
PROTECTIVE CAP101
999
PISTONTO 000 431 86 14
999
PROTECTIVE CAP VALVE, 674067
999
VALVE104
999
STRAINER
999
STRAINER , Replaced By: A0004314334
999
STRAINERTO 000 431 86 14
999
BRAKE BOOSTER , Replaced By: A0004318814
999
CLAMPTO 000 431 58 02
999
FILTER BOTTOMTO 000 431 24 14
999
STRAINERTO 002 430 31 01
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
DISTRIBUTOR ,4 342862
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
DIAPHRAGM
999
DIAPHRAGM , Replaced By: A0004290745
999
LINE , Replaced By: A0005516456
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
BRACKET. LOCK , Replaced By: A6525040038
999
PROTECTIVE CAP SHEET METAL VERSION
999
CLAMP ,K 147121, Replaced By: N000000000319
999
SLEEVE LINE CONNECTION
999
SLEEVE LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
HOLLOW SCREW HEATING CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION
999
UNION NUT
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK RING. SPRING WASHER
999
SPRING WASHER PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
999
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
999
SCREW , Replaced By: N304017010055
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW PIPE CLAMP
999
SCREW APPARATUS PLATE M 6X45
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
FITTING ,4 667210
999
FITTING CONNECTION "2"
999
NUT CHECK VALVE TO AIR RESERVOIR
999
T-FITTING
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
999
SCREW LINE MOUNTING M 6X16
999
SHEET METAL SCREW LINE MOUNTING
999
SEAL RING LINE CONNECTION
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LINE CONNECTION
999
WASHER SPARE WHEEL CARRIER
999
WASHER BEARING BRACKET TO FRAME
999
RIVET
999
TOOTHED WASHER HANDLE TO RATCHET ROD
999
GLAND , Replaced By: A0019901967
999
GLAND LINE CONNECTION
999
TURNBUCKLE , Replaced By: A3859960034
999
PIN
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW CONSOLE TO SIDE MEMBER
