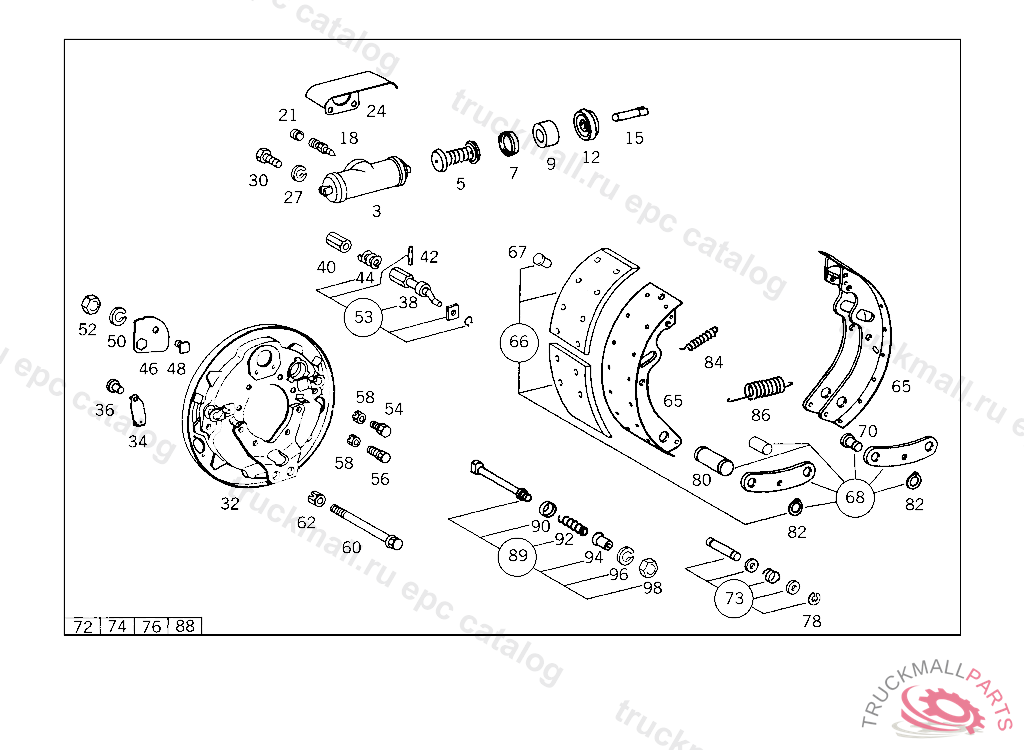

Поз.
Артикул
Описание
3
WHEEL BRAKE CYLINDER44.45 MM,TEVES
5
SPRING , FOR 002 420 77 18,003 420 78 18
7
CUP
9
PISTON TO 98 344 420 00 18,001 420 85 18,344 420 70 18
12
PROTECTIVE CAP , Replaced By: A3454237087
15
THRUST PINTEVES
18
VALVE , Replaced By: A3075530107
18
VALVE CLUTCH SLAVE CYLINDER
21
PROTECTIVE CAP , Replaced By: A0004217187
21
PROTECTIVE CAP , Replaced By: A0004210887
21
PROTECTIVE CAP ,5 962906
24
PROTECTIVE PLATE , FOR 002 420 77 18,003 420 78 18
27
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
30
SCREW BRACKET TO SIDE MEMBER
32
BRAKE ANCHOR PLATE , 10/20 UP TO IDENT NO 796990 EXCEPT FOR 500001-599999,50/60 UP TO IDENT NO 790758 EXCEPT FOR 500001-599999
34
INSPECTION HOLE COVER
36
RIVET
38
ADJUSTER , Replaced By: A3025860342
40
HEXAGONAL PIECE BRAKE SHOE ADJUSTMENT,1 239644
42
GROOVED PIN BRAKE READJUSTMENT
44
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
46
LOCK BRAKE ANCHOR PLATE TO REAR AXLE TUBE
48
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
50
LOCK WASHER FITTING TO BRACKET
52
NUT STRAP TO SUPPORT
53
REPAIR KIT BRAKE READJUSTMENT,1 239644
53
REPAIR KIT , Replaced By: A3024203038
54
SCREW , 10/20 FROM CHASSIS 796991, 50/60 FROM CHASSIS 790759 ALSO INSTALLED ON 500001-599999 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
56
SCREW , 10/20 FROM CHASSIS 796991, 50/60 FROM CHASSIS 790759 ALSO INSTALLED ON 500001-599999 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
58
NUT , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
60
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE, 10/20 FROM CHASSIS 796991, 50/60 FROM CHASSIS 790759 ALSO INSTALLED ON 500001-599999 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
62
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE, 10/20 UP TO CHASSIS 796990, 50/60 UP TO CHASSIS 790758 EXCEPT FOR, 500001-599999
65
BRAKE SHOE , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
66
BRAKE LINING , Replaced By: A3414230810
66
BRAKE LINING (PARTS KIT) (BRAKE LINING 16.30 MM)
66
BRAKE LINING (PARTS KIT) (BRAKE LINING 17.30 MM)
66
BRAKE LINING (PARTS KIT) 15.3 MM, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
66
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 15.30 MM,8X 341 423 42 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
66
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 17.30 MM
66
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 16.30 MM
67
RIVET BRAKE LINING 15 MM
68
REPAIR KIT BRAKE SHOE SHACKLE, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
68
REPAIR KIT , Replaced By: A3384200289
68
SHACKLE
70
PIN SHACKLE TO BRAKE SHOE
72
PIN
73
REPAIR KIT , Replaced By: A3384200082
73
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN
74
SPACER WASHER
76
SPRING
78
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
80
PIVOT PIN SHACKLE TO BRAKE SHOE
82
LOCK RING TRANSMISSION CASE,TOP
84
SPRING SHORT
86
SPRING LONG
88
PIN
89
REPAIR KIT , Replaced By: A3584200182
89
REPAIR KIT BRAKE SHOE MOUNTING BOLT
90
FILLER
92
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
94
FILLER
96
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
98
NUT
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW BRACKET TO SIDE MEMBER, 815770
999
SCREW , Replaced By: N000933008134
999
SCREW STRAP TO BRACKET
999
SCREW BRAKE DRUM TO WHEEL HUB AND TO WHEEL SPIDER,RESP.
999
SCREW DOUBLE LEVER TO CONSOLE, 698033
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW BRACKET TO SIDE MEMBER M 12X40
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT PULL ROD
999
NUT STRAP TO SUPPORT,5 149419
999
NUT , Replaced By: N308673012002
999
NUT , Replaced By: N308673016001
999
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE
999
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
999
SCREW , Replaced By: N000960016206
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N308676016005
999
TURNBUCKLE , Replaced By: A3859960034
999
GLAND , Replaced By: A0019901967
999
GLAND , Replaced By: A0019901167
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LINE CONNECTION
999
SHEET METAL SCREW LINE MOUNTING
999
SCREW , Replaced By: N000000001146
999
GREASE NIPPLE , Replaced By: N071412008102
999
GREASE NIPPLE
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0009970171
999
FITTING CONNECTION "2"
999
FITTING ,4 667210
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
999
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
999
CLAMP LINE CONNECTION
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION
999
UNION NUT LINE MOUNTING
999
SLEEVE LINE CONNECTION
999
CLAMP ,K 147121, Replaced By: N000000000319
999
LEVER LEFT, REAR AXLE I, ON 10/20 FROM CHASSIS 991843,ON 50/60 FROM CHASSIS 986144
999
LEVER BRAKE READJUSTMENT,RIGHT
999
LEVER LEFT,REAR AXLE II, ON 10/20 FROM CHASSIS 991843,ON 50/60 FROM CHASSIS 986144
999
LEVER BRAKE READJUSTMENT,RIGHT
999
ROD REAR, REAR AXLE I,4 272929
999
LEVER LEFT, 402,407 FROM CHASSIS 657000
999
NUT FROM BRAKE SHAFT TO BRAKE LEVER
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW ,374026
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREW BRAKE LINE MOUNTING
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW VALVE TO CAB, 682698
999
SCREW , 656999
999
SCREW BRACKET TO CAB
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN STRAP TO CONSOLE
999
COTTER PINROCKINGER TYP 260 G140
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER CLUTCH AND BRAKE PEDALS TO LEVER,4 282707
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER HORN TO ENGINE CROSS MEMBER
999
WASHER AIR RESERVOIR CONSOLE TO SIDE MEMBER
999
WASHER
999
WASHER , Replaced By: N000433010510
999
WASHER VIBRATION ABSORBER TO BRACKET
999
WASHER
999
LOCK RING SHACKLE TO BEARING BRACKET,965965
999
SCREW PLUG , Replaced By: N000908022011
999
LEVER , ONLY REPLACEABLE BY PAIRS, Replaced By: A3834261610
999
LEVER , Replaced By: A3834261510
999
LEVER , ONLY REPLACEABLE BY PAIRS, Replaced By: A3834261410
999
LEVER , Replaced By: A3834261310
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A3604300143
999
REPAIR KIT , Replaced By: A3604200241
999
PIPE LINE , Replaced By: A0004290701
999
PIPE LINE , Replaced By: A0004290701
999
PIPE LINE , Replaced By: A0004290701
999
PIPE LINE , Replaced By: A0004290701
999
BRACKET LINE MOUNTING
999
PIN , FROM CHASSIS 698033 ALSO INSTALLED ON, 500001-599999
999
CONSOLE
999
CLAMP , Replaced By: N916016008200
999
LINE , Replaced By: A0004290201
999
LINE , Replaced By: A0004290201
999
LINE , Replaced By: A0004290201
999
LINE , Replaced By: A0004290201
999
LINE , Replaced By: A0004290201
999
LINE , Replaced By: A0004290201
999
LINE , Replaced By: A0004290401
999
LINE , Replaced By: A0004290301
999
LINE , Replaced By: A0004290301
999
LINE , Replaced By: A0004290301
999
LINE , Replaced By: A0004290301
999
LINE , Replaced By: A0004290201
999
ANGLE LINE MOUNTING
999
BRAKE CAMSHAFT , ON 10/20 FROM CHASSIS 991843,ON 50/60 FROM CHASSIS 986144
999
STOP WASHER BRAKE SHAFT TO BEARING BRACKET
999
LINE FROM INTERMEDIATE PIECE TO REAR AXLE I
999
LINE FROM INTERMEDIATE PIECE TO REAR AXLE II
999
LINE , Replaced By: A3404205129
999
LINE , Replaced By: A3404201129
999
LINE , Replaced By: A3404202329
999
LINE , Replaced By: A3404201129
999
LINE , Replaced By: A3404202729
999
LINE , Replaced By: A3404204029
