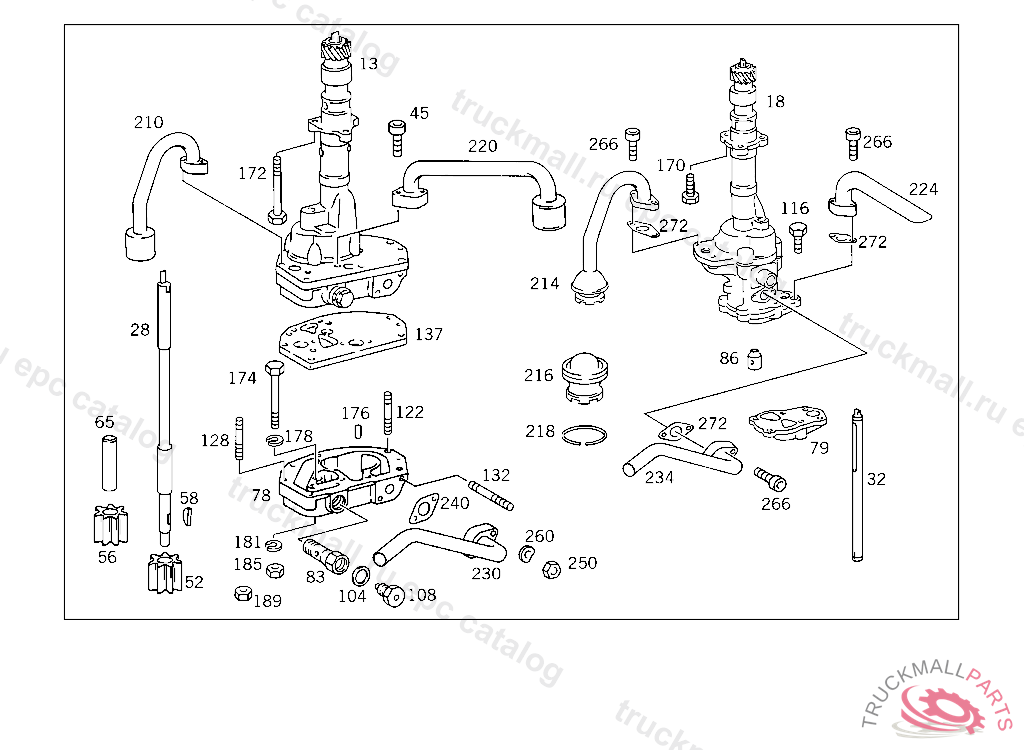

Поз.
Артикул
Описание
13
OIL PUMP LESS SUCTION PIPE
13
OIL PUMP , Replaced By: A3661800201
13
OIL PUMP , Replaced By: A3661800501, +001A3521805422, +001A3521801252, +001A3521801452, +006N007984008005
18
OIL PUMP , Replaced By: A3661800201
18
OIL PUMP , Replaced By: A3661800201
18
OIL PUMP , IF OIL PAN AS PER SA 082289/27 HAS BEEN INSTALLED ON 352.900-400, EXCHANGE COVER OF 366 180 05 01 OIL PUMP FOR 352 181 13 20 COVER, Replaced By: A3661800501, +001A3521805422, +001A3521801252, +001A3521801452, +006N007984008005
18
OIL PUMP LESS SUCTION PIPE
28
DRIVE SHAFT
32
DRIVE SHAFT
32
DRIVE SHAFT
45
SCREW BRACKET TO INTAKE MANIFOLD
52
GEAR DRIVEN
52
GEAR DRIVING
56
GEAR DRIVEN
58
WOODRUFF KEY
65
OIL PUMP SHAFT
78
COVER OIL PUMP
78
COVER OIL PUMP COVER
79
COVER
83
HOUSING OIL PRESSURE RELIEF VALVE
86
HOUSING OIL PRESSURE RELIEF VALEE
104
SEAL RING SOLENOID VALVE A 18X24
108
SCREW PLUG
116
SCREW CONNECTION OF OIL PUMPS M 8 X 125
116
SCREW BRACKET TO INTAKE MANIFOLD
116
SCREW BRACKET TO ALTERNATOR
116
SCREW , Replaced By: A0069909101
122
STUD BOLT
128
STUD BOLT
132
STUD BOLT , 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
137
CONNECTOR
170
SCREW BRACKET TO EXHAUST PIPE BRACKET
172
SCREW ,12/96
174
SCREW OIL PUMP COVER TO OIL PUMP HOUSING
176
CYLINDRICAL PIN HOUSING FRONT HALF
178
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
181
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
185
NUT BALL PIVOT TO LEVER
189
NUT
189
NUT , Replaced By: N304032008006
210
SUCTION PIPE BARREL I
210
SUCTION PIPE STAGE I
214
SUCTION PIPE BARREL I
216
SUCTION BASKET
218
SNAP RING
220
SUCTION PIPE STAGE II
220
SUCTION PIPE BARREL II
224
SUCTION PIPE BARREL II
230
SUCTION PIPE RETURN
234
OIL LINE RETURN
234
OIL LINE RETURN
240
GASKET SUCTION PIPES TO OIL PUMP
250
NUT BALL PIVOT TO LEVER
260
SPRING WASHER LICENSE PLATE TO BRACKET
266
SCREW , Replaced By: N007984008003
266
SCREW INTERMEDIATE FLANGE TO CYLINDER CRANKCASE,340.919 002-007,010-014 104743
266
SCREW BRACKET TO INTAKE MANIFOLD
272
GASKET SUCTION PIPES TO OIL PUMP
999
GEAR DRIVING
999
OIL PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 314 490329 352 835680 364 007948 366 038965, Replaced By: A3661800401
999
DRIVE SHAFT , Replaced By: A3521812105
999
COVER
999
HELICAL GEAR , Replaced By: A3521811108
999
OIL PUMP , Replaced By: A3521807501
999
OIL PUMP , IF OIL PAN AS PER SA 082289/27 HAS BEEN INSTALLED ON 352.900-400, EXCHANGE COVER OF 366 180 05 01 OIL PUMP FOR 352 181 13 20 COVER, Replaced By: A3661800101
999
OIL PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 110592, Replaced By: A3641800101
999
DRIVE SHAFT
999
COVER , Replaced By: A3141810520
999
DRIVE SHAFT , Replaced By: A3521801607
