Поз.
Артикул
Описание

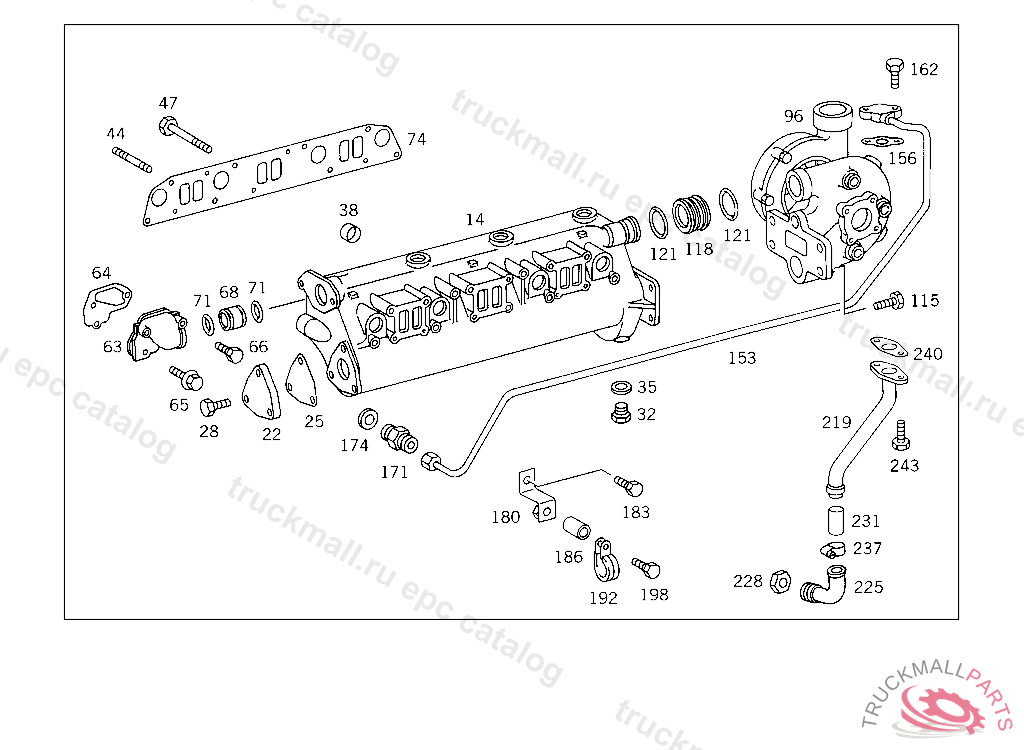

14
EXHAUST MANIFOLD
22
FLANGE
25
GASKET
25
GASKET , Replaced By: A3661420780
28
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
28
SCREW
32
SCREW PLUG
35
SEAL RING SOLENOID VALVE A 18X24
38
EXPANSION PLUG SHIFTING FORK
38
EXPANSION PLUG P.T.O. HOUSING
38
EXPANSION PLUG , Replaced By: A4039970620
38
EXPANSION PLUG , Replaced By: N000443040002
44
STUD BOLT EXHAUST MANIFOLD TO CYLINDER HEAD
47
SCREW FLANGE TO PIPE SOCKET
63
CONNECTOR
64
GASKET , Replaced By: A3662030280
64
GASKET THERMOSTAT HOUSING TO CYLINDER HEAD
65
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
66
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
68
PIPE THERMOSTAT HOUSING TO WATER PUMP
68
PIPE THERMOSTAT HOUSING TO WATER PUMP
71
SEAL RING
74
GASKET EXHAUST MANIFOLD
96
TURBOCHARGER MAKE KKK
96
TURBOCHARGER MAKE KKK
96
TURBOCHARGER , Replaced By: A3660964399
96
TURBOCHARGER MAKE KKK
115
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
118
CONNECTOR TURBOCHARGER TO EXHAUST MANIFOLD
121
SEAL RING BRAKE HOSE
153
OIL LINE OIL DELIVERY LINE, FROM ENGINE 351139 YEAR OF MANUFACTURE 1994
153
OIL LINE OIL DELIVERY LINE, UP TO ENGINE 351138 YEAR OF MANUFACTURE 1994
156
GASKET FLANGE TO TURBOCHARGER
156
GASKET , Replaced By: A4421870180
162
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
171
FITTING WATER SEPARATOR
174
SEAL RING
174
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
174
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
174
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
174
SEAL RING
180
BRACKET OIL DELIVERY LINE
180
BRACKET OIL DELIVERY LINE
183
SCREW BRACKET TO PLATE
183
COMBINATION BOLT OIL COOLER TO CYLINDER CRANKCASE M 8X45, FROM ENGINE 351139 YEAR OF MANUFACTURE 1994
183
SCREW , 973 10/50,20/60 004128 974 10/50,20/60 001111
186
SPACER TUBE BRACKET TO FRAME SIDE MEMBER
192
CLAMP , Replaced By: N916016010211
192
CLAMP , Replaced By: N000000001045
192
CLAMP CABLE HARNESS MOUNTING
192
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
192
CLAMP DE-AERATION LINE TO BRACKET
192
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
198
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
198
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
219
OIL LINE OIL RETURN LINE
219
OIL LINE OIL RETURN LINE
219
OIL LINE OIL RETURN LINE
225
PIPE BEND AT AIR COMPRESSOR
225
PIPE BEND ENGINE BREATHING
228
NUT 3/2-WAY VALVE TO CAB,4 685151
228
NUT , Replaced By: N080705026003
231
HOSE , Replaced By: A0005514156
231
HOSE , Replaced By: A4279971282
231
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
231
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, ORDER BY THE METER FROM ENGINE 230908 YEAR OF MANUFACTURE 1992 UP TO ENGINE 432713 YEAR OF MANUFACTURE 1996
231
HOSE FUEL COMPENSATING, ORDER BY THE METER
237
HOSE CLAMP LINE MOUNTING
237
LOOM TIE , Replaced By: N000000000668
237
CLAMP , Replaced By: A0059970190
237
CLAMP , Replaced By: A0069970490
237
CLAMP , Replaced By: A0069974290
237
CLAMP HOSE FASTENING 28-35 MM,V 207570
237
CLAMP25-40X13 MM
237
CABLE TIE. CLAMP GUIDE TUBE TO CYLINDER CRANKCASE
237
CLAMP PRESSURE REGULATOR
240
GASKET , Replaced By: A4421870080
240
GASKET OIL RETURN LINE TO TURBOCHARGER
243
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
999
VALVETO 364 096 45 99
999
VALVETO 364 096 42 99, 60 99
999
REPAIR KIT TURBOCHARGER FA. KKK
999
REPAIR KIT MAKE KKK
999
RUNNER PARTS KIT KKK
999
REPAIR KIT TURBOCHARGER,MAKE AIRESEARCH
999
REPAIR KIT TURBOCHARGER TO 366 096 72 99
999
REPAIR KIT TURBOCHARGER,MAKE AIRESEARCH
999
RUNNER PARTS KIT FA. KKK
999
TURBINE WHEEL MAKE AIRESEARCH
999
COMPRESSOR WHEEL MAKE AIRESEARCH
999
STUD MAKE AIRESEARCH
999
TURBINE WHEEL
999
COMPRESSOR WHEELAIRESEARCH
999
TURBINE WHEEL
999
THRUST WASHER MAKE AIRESEARCH
999
COMPRESSOR WHEEL
999
TURBINE WHEELGARRETT
999
COMPRESSOR WHEELGARRETT
999
TURBOCHARGER MAKE AIRESEARCH, NOT USED
999
TURBOCHARGERFA. SCHWITZER
999
TURBOCHARGER MAKE KKK, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CONNECTING PIPE OIL DELIVERY LINE TO TURBOCHARGER
999
OIL LINE OIL RETURN LINE
999
OIL LINE OIL RETURN LINE
999
OIL LINE OIL DELIVERY LINE
999
HOSE CONNECTION OF OIL LINES
999
TURBOCHARGER MAKE AIRESEARCH
999
TURBOCHARGER MAKE AIRESEARCH, NOT USED
999
TURBOCHARGER MAKE KKK, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
TURBOCHARGER MAKE KKK
999
TURBOCHARGER MAKE AIRESEARCH
999
TURBOCHARGER MAKE AIRESEARCH
999
OIL LINE OIL DELIVERY LINE, FROM ENGINE 351139 YEAR OF MANUFACTURE 1994
999
OIL LINE OIL DELIVERY LINE, FROM ENGINE 351139 YEAR OF MANUFACTURE 1994
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
