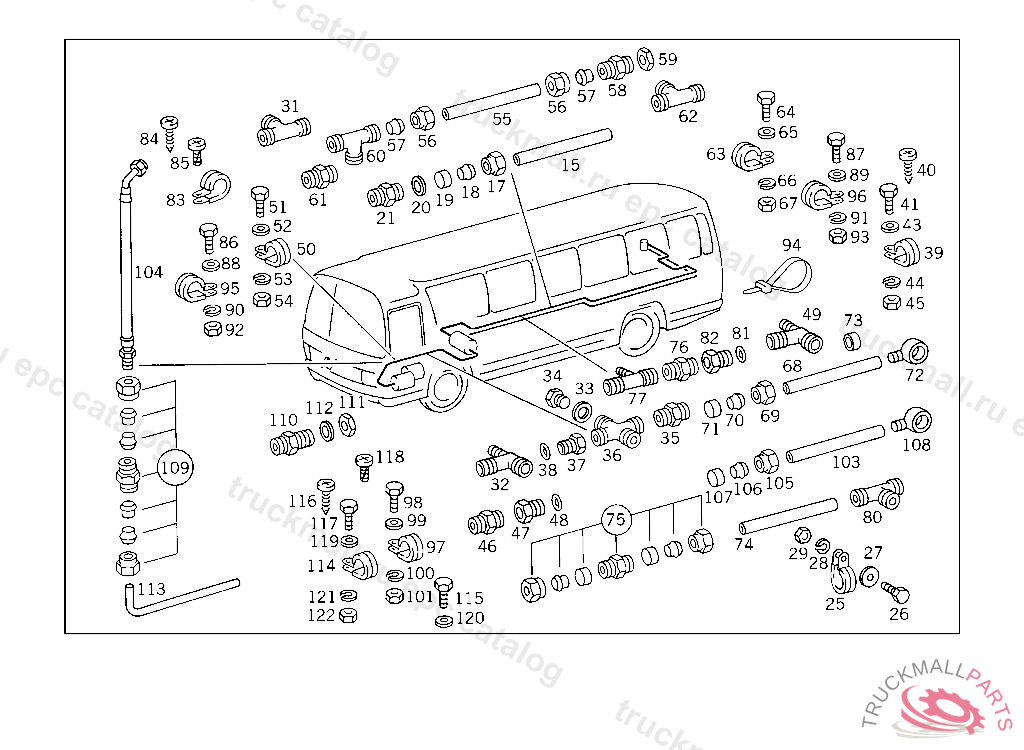

Поз.
Артикул
Описание
15
17
UNION NUT BUTT SCREW CONNECTION
18
GLAND LINE CONNECTION
19
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
20
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
39
CLAMP LINE MOUNTING
39
CLAMP LINE MOUNTING
39
CLAMP BREATHER LINE TO BRACKET
41
SCREW CAB FLOOR COVERING M 6X25
41
SCREW , Replaced By: N304017006020
43
WASHER , Replaced By: N009021006208
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
45
NUT COMPRESSED AIR LINE TO BRACKET
45
NUT SPRING-LOADED PUSH ROD
45
NUT BALL PIVOT TO LEVER
55
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
55
LINE FROM PRESSURE REGULATOR TO AIR RESERVOIR 1,5 L
56
UNION NUT LINE CONNECTION, Replaced By: N000000006239
57
GLAND , Replaced By: A0019901967
57
SEAL CONE LINE CONNECTION
58
FITTING (PARTS KIT),LINE RUPTURE
58
FITTING , Replaced By: A0029906171
58
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
58
FITTING DELIVERY LINE TO FRAME
59
NUT BRACKET TO SIDE MEMBER
60
T-FITTING CONNECTOR
62
T-FITTING
63
CLAMP LINES TO BRACKET
63
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
64
SCREW OVERLOAD PROTECTOR TO BRACKET
64
SCREW SWITCH TO BRACKET 8X16
64
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
WASHER , Replaced By: N009021006208
66
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
66
NUT , Replaced By: N913004008001
66
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
67
NUT COMPRESSED AIR LINE TO BRACKET
69
UNION NUT LINE CONNECTION
70
GLAND LINE CONNECTION
71
SLEEVE LINE CONNECTION
72
BANJO UNION HEATING CONNECTION,K 169122
74
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
75
FITTING (PARTS KIT),LINE RUPTURE
75
FITTING , Replaced By: A0029905971
77
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
80
T-FITTING
80
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
83
CLAMP ,K 147121, Replaced By: N000000000319
84
SHEET METAL SCREW GROUND CABLE CONNECTION
84
SHEET METAL SCREW COMPRESSED AIR LINE MOUNTING
85
SCREW , Replaced By: N000000001146
86
SCREW , Replaced By: N304017005002
87
SCREW PUMP TO BRACKET
87
SCREW OVERLOAD PROTECTOR TO BRACKET
87
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
87
SCREW , Replaced By: N304017006020
88
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
88
WASHER , Replaced By: N009021005205
89
WASHER COMPRESSED AIR LINE MOUNTING
90
LOCK WASHER BRACKET TO STEERING COLUMN END
91
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
91
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
NUT MODULE TO HOUSING
93
NUT BALL PIVOT TO LEVER
93
NUT SPRING-LOADED PUSH ROD
94
LOOM TIE , Replaced By: A0019978390
94
LOOM TIE
95
CLAMP ,K 147121, Replaced By: N000000000319
98
SHEET METAL SCREW GROUND CABLE CONNECTION
100
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
103
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
104
HOSE PRESSURE GAUGE
105
UNION NUT
106
SEAL CONE
106
GLAND , Replaced By: A0019901667
107
SLEEVE LEAK LINE
108
BANJO UNION , Replaced By: N000000000364
109
FITTING , Replaced By: A0029906071
109
TS DOUBLE FITTING SOLENOID VALVE
110
FITTING , Replaced By: A0009977172
110
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
111
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
112
WASHER ENGINE MOUNTING TO CONSOLE
114
CLAMP SENSOR CABLE TO FRONT AXLE
115
SCREW CAB FLOOR COVERING M 6X25
116
SHEET METAL SCREW OIL LINE MOUNTING
120
WASHER COMPRESSED AIR LINE TO BRACKET
120
WASHER , Replaced By: N009021006208
122
NUT , Replaced By: N910113006001
999
999
LINE FROM IN-LINE FILTER TO FOUR-CIRCUIT PROTECTIVE VALVE, ONLY APPLICABLE FOR TURKEY
999
999
999
LINE FROM DRAIN VALVE TO WET AIR RESERVOIR, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE FROM T-FITTING TO DRAIN VALVE, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE FROM LEFT BRAKE CYLINDER TO RIGHT BRAKE CYLINDER, ONLY APPLICABLE FOR TURKEY
999
LINE FROM 3/2-WAY VALVE TO COMPRESSED AIR HOSE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR TO RELAY VALVE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM T-FITTING TO CONNECTOR 1, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE FROM AIR RESERVOIR TO TEST CONNECTION 1/20 L
999
LINE FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22" R 25
999
LINE FROM RESERVOIR TO PUMP
999
LINE FROM TEST CONNECTION TO T-FITTING, ONLY APPLICABLE FOR TURKEY
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO T-FITTING
999
LINE FROM CONNECTOR TO DIAPHRAGM CYLINDER, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR TO DIAPHRAGM CYLINDER, ONLY APPLICABLE FOR TURKEY
999
LINE CHECK VALVE AT FOUR-CIRCUIT PROTECTIVE VALVE
999
LINE FROM AIR RESERVOIR TO T-FITTING, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE FROM CONNECTOR TO TWO-WAY VALVE, ONLY APPLICABLE FOR TURKEY
999
999
LINE FROM CONNECTOR TO TWO-WAY VALVE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR TO RELAY VALVE, CONNECTION 1, ONLY APPLICABLE FOR TURKEY
999
999
LINE FROM T-FITTING TO CONNECTOR
999
999
999
LINE LEFT,DIAPHRAGM CYLINDER
999
LINE FROM CONNECTOR TO TEST CONNECTION NO.3
999
LINE FROM CONNECTOR I TO CONNECTOR II
999
LINE FROM AIR RESERVOIR TO AIR RESERVOIR 1/10L-1B/10L
999
999
999
999
999
999
LINE FROM TWO-CIRCUIT BRAKE VALVE TO CONNECTOR I
999
999
LINE FROM AIR RESERVOIR TO TWO-CIRCUIT BRAKE VALVE,CONNECTION: 1B/10L - "12"
999
999
999
999
LINE CONNECTOR,WET AIR RESERVOIR NO.4
999
LINE FROM CONNECTOR I TO CONNECTOR II, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTION TO 3/2-WAY SOLENOID VALVE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR II TO CONNECTOR III, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR I TO CONNECTOR II, ONLY APPLICABLE FOR TURKEY
999
999
999
LINE FROM AIR COMPRESSOR TO COMPRESSED AIR HOSE, USED WITH HYDRAULIC BRAKE UP TO CHASSIS 209475 EXCEPT FOR 209273,209446,209461,209465,209471,209474.
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
999
VALVE , Replaced By: A0004322407
