Поз.
Артикул
Описание

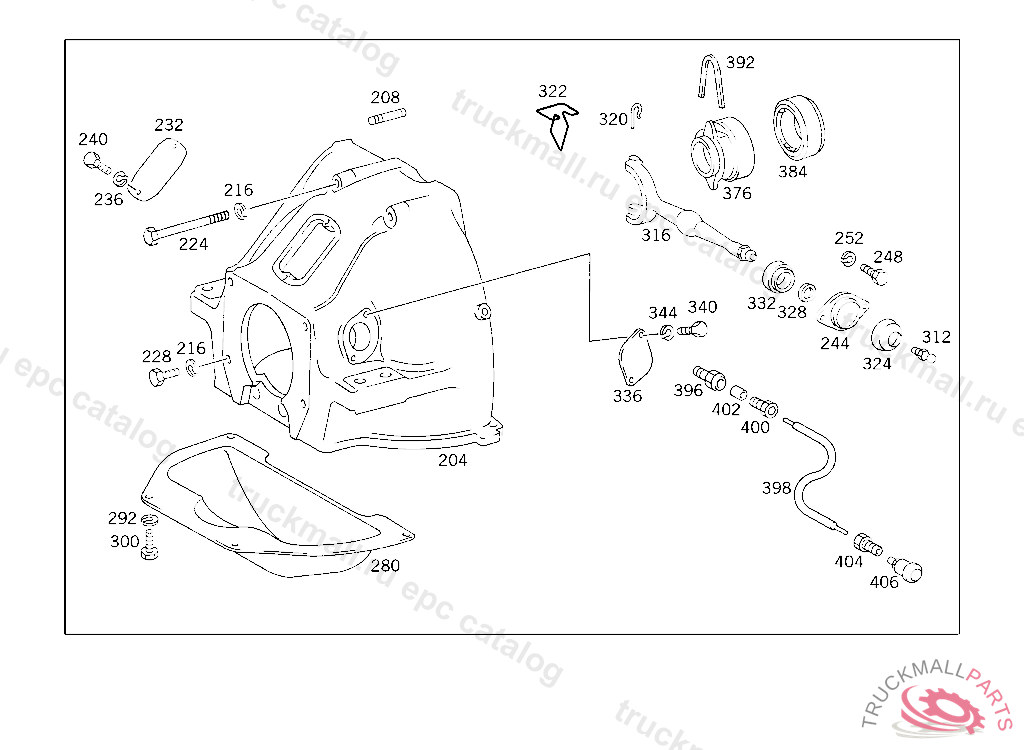

204
BELL HOUSING
216
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
228
SCREW STRAP TO CONSOLE M 10X40,20 L
232
END COVER TOP,4 696330
236
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
240
SCREW , Replaced By: N304017006018
244
FLANGE
248
SCREW CARRIER TO BRACKET
252
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
312
BALL PIVOT
316
322
SPRING
324
BOOT INSIDE
328
SNAP RING BEARING TO RELEASE YOKE
332
JOINT BEARING
336
COVER RELEASE YOKE TO BEARING BRACKET
340
SCREW CARRIER TO BRACKET
344
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
376
RELEASE BEARING
396
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
398
HOSE RELEASE COLLAR LUBRICATION 220 MM
400
UNION SCREW RELEASE COLLAR LUBRICATION
402
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
404
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
406
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
