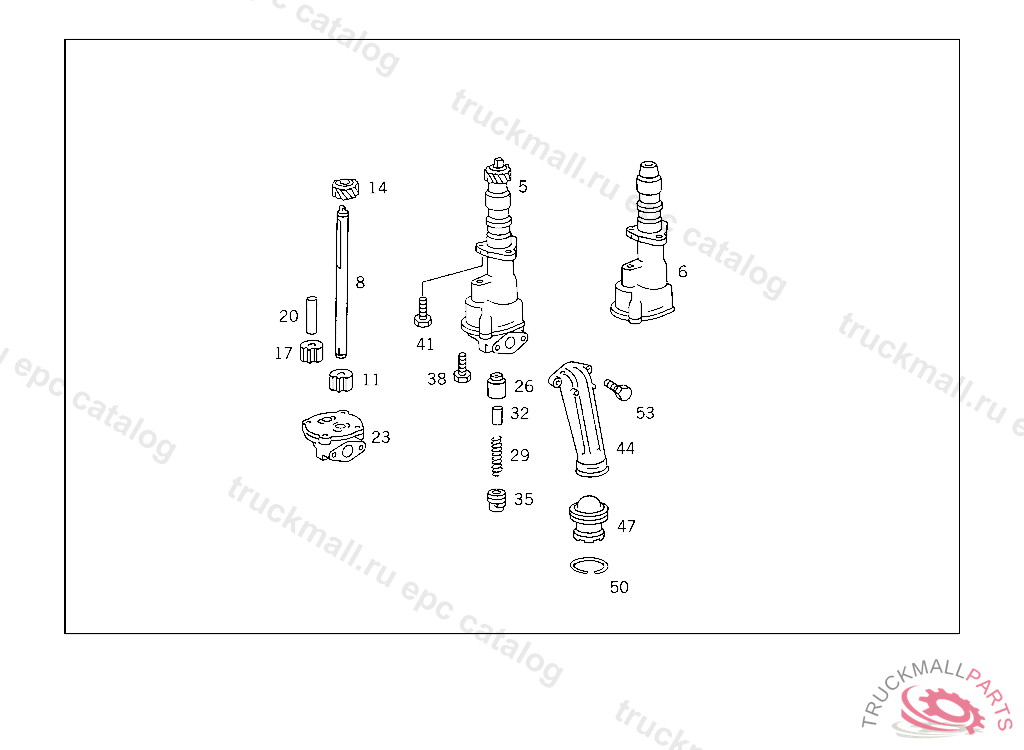

Поз.
Артикул
Описание
5
OIL PUMP LESS SUCTION BASKET
6
HOUSING
8
DRIVE SHAFT
11
GEAR
14
HELICAL GEAR OIL PUMP DRIVE, 314 484415 352 827575 353 827575 364 005097 366 028373
14
HELICAL GEAR , Replaced By: A3661810108
17
GEAR
20
OIL PUMP SHAFT
23
COVER
26
HOUSING OIL PRESSURE RELIEF VALEE
29
SPRING
32
PISTON , Replaced By: A3661810042
32
PISTON
35
SCREW PLUG OIL PRESSURE RELIEF VALEE
38
SCREW BRACKET TO INTAKE MANIFOLD
38
SCREW COVER TO HOUSING M8X45
38
SCREW COVER TO STEERING BOX, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
41
SCREW LINES TO BRACKET
44
SUCTION BASKET
44
SUCTION BASKET
44
SUCTION BASKET , Replaced By: A3641800255
44
SUCTION BASKET , 314 494528 364 026511, Replaced By: A3641860401, +001A3641810020
47
SUCTION BASKET
50
SNAP RING
53
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
