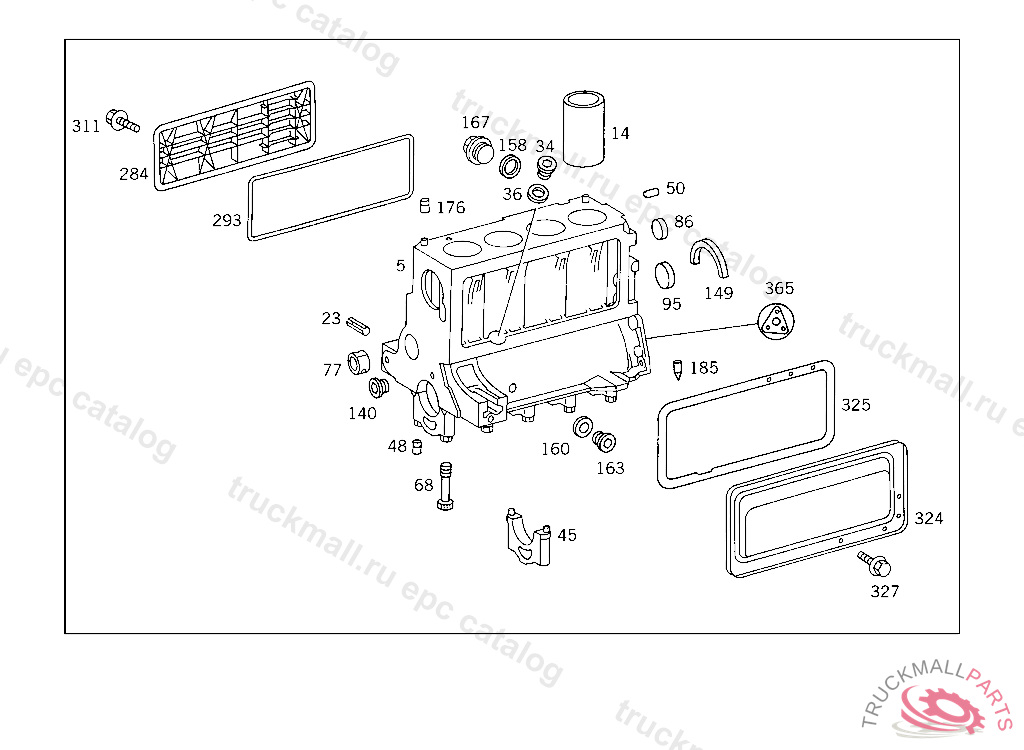

Поз.
Артикул
Описание
5
CRANKCASE
14
CYLINDER LINER
14
CYLINDER LINER
14
CYLINDER LINER
23
SLEEVE , UP TO ENGINE 289000 YEAR OF MANUFACTURE 1993
34
SCREW PLUG , Replaced By: A3149970032
36
SEAL RING , 001778
45
BEARING CAPNO.1,3,4
45
BEARING CAPNO.5,A 003512
45
BEARING CAPNO.2
45
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100123
45
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100323
45
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100223
48
DOWEL PIN CRANKSHAFT BEARING CAP TO 366 010 03 23, 02 23, 03 23
48
CYLINDRICAL PIN
50
CYLINDRICAL PIN
68
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE, WHEN INSTALLING MODIFIED CRANKSHAFT BEARING BOLT REPLACE ALL CRANKSHAFT BEARING BOLTS WITH THIS VERSION
68
SCREW
77
CAMSHAFT BEARINGNO.1
77
CAMSHAFT BEARINGNO.2,NO.3
77
CAMSHAFT BEARINGNO.2,NO.3
86
EXPANSION PLUG , Replaced By: A4039970620
86
EXPANSION PLUG P.T.O. HOUSING
95
EXPANSION PLUG
140
SCREW PLUG
149
SEAL RING CRANKSHAFT SEALING,REAR,A 003512
149
SEAL RING , Replaced By: A0019974141
149
SEAL RING , Replaced By: A0019973141
158
SEAL RING VALVE TO VALVE,K 025179
160
SEAL RING PREHEATER TO OIL PAN
163
SCREW PLUG
167
SCREW PLUG WATER DRAIN
176
CYLINDRICAL PIN CYLINDER HEAD TO CYLINDER CRANKCASE
185
SAFETY PIN. PIN ,A 003512
284
COVER PUSH ROD CHAMBER COVER,128243
284
COVER , Replaced By: A3640150504
293
SEAL RING , Replaced By: A3640150360
293
SEAL RING PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE,128243
311
SCREW PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE M8X40,128243
324
CYLINDER SIDE COVER
325
GASKET CYLINDER SIDE COVER
325
GASKET , Replaced By: A3640150180
327
COMBINATION BOLT CYLINDER SIDE COVER TO CYLINDER CRANKCASE M8X18
365
CRANKCASE CYLINDER CRANKCASE, ORDER ADDITIONALLY: 1X 364 010 00 80 OIL PAN GASKET KIT
365
GASKET KIT , Replaced By: A3740100005
365
CRANKCASE , Replaced By: A3740101005
999
SCREW PLUG
999
SEAL RING LINE TO OIL PUMP
999
SEAL RING HEAT EXCHANGER
999
SEAL RING COVER TO TIMING CASE
999
SHORT-BLOCK .
999
SHORT-BLOCK REDUCED SCOPE
999
ENGINE
999
SHORT-BLOCK , Replaced By: A3740102250
999
GASKET AS REQUIRED 0.65 MM
999
GASKET AS REQUIRED 0.90 MM
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
GASKET TIMING CASE COVER TO TIMING CASE,070205
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET OIL FILTER TO CYLINDER CRANKCASE, FROM ENGINE 923827-999999 YEAR OF MANUFACTURE 1988-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
999
SEAL RING , Replaced By: A3640150360
999
GASKET , Replaced By: A3642010280
999
GASKET , Replaced By: A3661310180
999
GASKET , Replaced By: A3661310280
999
GASKET , Replaced By: A3660150020
999
GASKET TIMING CASE LOCK
999
GASKET COVER TO TIMING CASE
999
SEAL RING
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3640150180
999
SCREW PLUG FUEL DISCHARGE
999
GASKET , Replaced By: A3641840280
999
GASKET , Replaced By: A3660150180
999
SEAL RING
999
SEAL RING , Replaced By: A0149971647
999
SEAL RING INJECTION PUMP SUPPORT TO TIMING CASE
999
SEAL RING , Replaced By: A0019974141
999
SEAL RING , Replaced By: A0019973141
