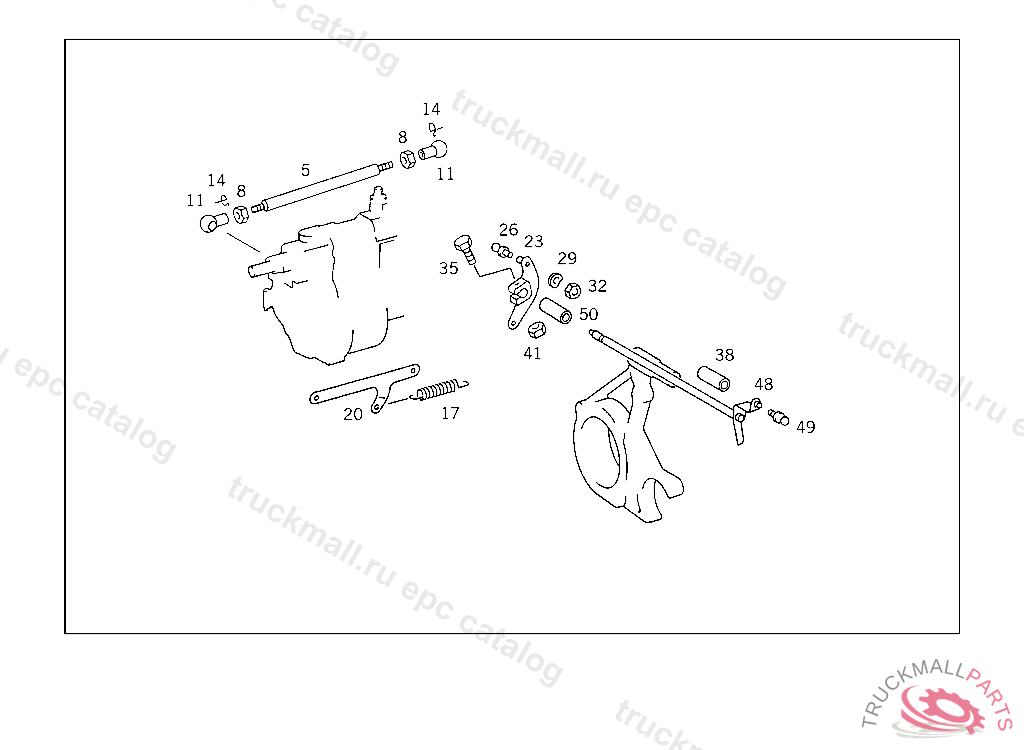

Поз.
Артикул
Описание
5
ROD FROM INTERMEDIATE LEVER TO THROTTLE VALVE LEVER
8
NUT
11
BALL SOCKET AT CONTROL LEVER
11
BALL SOCKET
14
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
17
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
20
BRACKET
23
LEVER , Replaced By: A3640702221, +001N913017006000, +001N914126006025
26
BALL PIVOT , Replaced By: A3129910120
26
BALL PIVOT INJECTION PUMP
29
SPRING WASHER CABLE TO ALTERNATOR
32
NUT
35
SCREW LEVER TO THROTTLE VALVE SHAFT
38
SPACER TUBE INTERMEDIATE CONTROL SHAFT
38
SPACER TUBE , Replaced By: A4070720353
41
NUT
48
SHAFT (CONTROL SHAFT)
49
BALL STUD. BALL PIVOT
50
SPACER TUBE CONTROL
