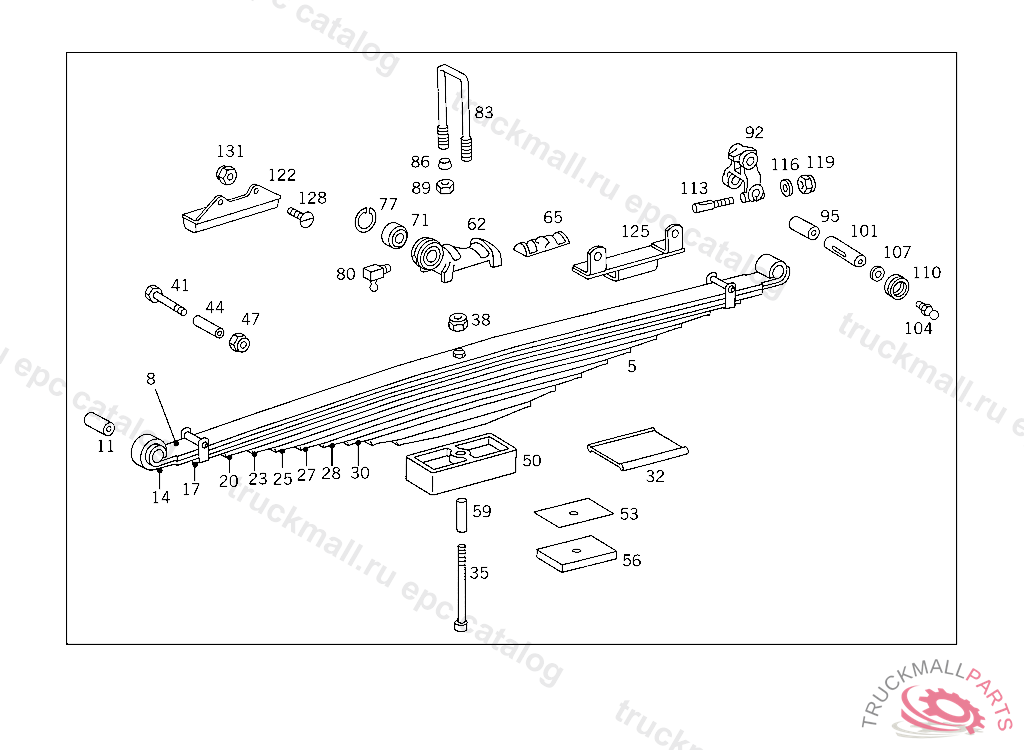

Поз.
Артикул
Описание
5
REAR SPRING
5
REAR SPRING 11-LEAF
8
SPRING LEAFNO.1,TO 345 320 75 06
8
SPRING LEAF NO.1 TO 382 320 70 06, FROM IDENT NO.B 890518 ALSO INSTALLED ON B 887915,B 887936,B 888020,B 888023,B 888026*
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2,TO 345 320 75 06
14
SPRING LEAFNO. 2
17
SPRING LEAFNO.3,TO 345 320 75 06
17
SPRING LEAFNO.3 - TO 382 320 70 06, FROM IDENT NO.B 890518 ALSO INSTALLED ON B 887915,B 887936,B 888020,B 888023,B 888026*
20
SPRING LEAFNO.4,TO 345 320 75 06
20
SPRING LEAFNO. 4
23
SPRING LEAFNO. 5
32
PLASTIC SECTION , ORDER BY THE METER
35
SPRING BOLTM 12X195,B 969046
38
NUT BRACKET TO SIDE MEMBER
41
SCREW
44
SPACER TUBE EXHAUST PIPE TO BRACKET
47
NUT SPRING CLAMP
50
PAD REAR SPRING TO REAR AXLE
59
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 38 MM
62
PLATE TORSION BAR TO REAR AXLE, 752309
71
JOINT BEARING TORSION BAR TO LINK,5 903513
71
JOINT BEARING TORSION BAR TO LINK,5 903513
77
LOCK RING TORSION BAR TO LINK,5 903513
80
GREASE NIPPLE
80
GREASE NIPPLE
83
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
83
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
86
WASHER FRONT SPRINGS TO FRONT AXLE
89
NUT STEERING SUPPORT TO FRAME
92
SHACKLE REAR SPRING SUSPENSION
95
BUSHING
95
BUSHING
101
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
104
GREASE NIPPLE PROTECTIVE TUBE
107
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
107
WASHER AS REQUIRED 4.0 MM
107
WASHER AS REQUIRED 4.2 MM
107
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
110
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
113
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
116
WASHER GROUND CABLE
119
NUT BRACKET TO SIDE MEMBER,XB209706
122
STOP , USED WITH AIR BRAKE,FROM CHASSIS 588186
122
STOP ,944378
128
SCREW STOP BUFFER TO FRAME M 10X30
131
NUT BRACKET TO SIDE MEMBER,XB209706
999
SPRING LEAFNO. 9
999
SPRING LEAFNO. 8
999
SPRING LEAFNO. 7
999
SPRING LEAFNO. 6
999
SPRING LEAFNO.7,TO 345 320 75 06
999
SPRING LEAFNO.6,TO 345 320 75 06
999
SPRING LEAFNO.5,TO 345 320 75 06
999
SPRING LEAFNO.8,TO 345 320 75 06
999
SPRING LEAFNO.10,TO 345 320 75 06
999
SPRING LEAFNO.9,TO 345 320 75 06
