Поз.
Артикул
Описание

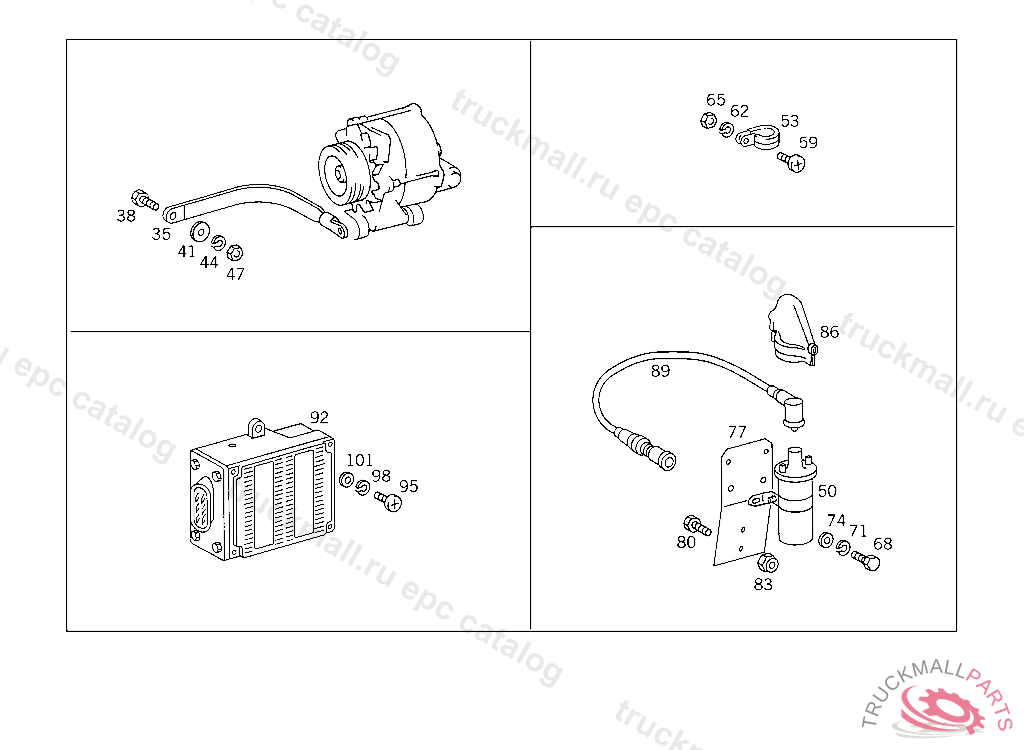

35
ELECTRIC CABLE GROUND CABLE TO GENERATOR
35
GROUND STRAP FROM ALTERNATOR TO FRAME SIDE MEMBER,774713
38
SCREW GROUND CABLE
38
SCREW CROSS MEMBER TO SIDE MEMBERS
41
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
44
LOCK WASHER , Replaced By: N912004010102
47
NUT BRACKET TO RETARDER
50
IGNITION COIL , Replaced By: A0001502480
50
IGNITION COIL
53
CLAMP DELIVERY AND SUCTION LINES TO FRAME
53
CLAMP ,K 147121, Replaced By: N000000000319
59
SCREW FUSE BOX TO APPARATUS PLATE
62
LOCK WASHER CABLE TO FUSE BOX
65
NUT
68
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
71
LOCK WASHER RAIL TO BATTERY SUPPORT
74
WASHER TRAILER PLUG SOCKET TO BRACKET
77
BRACKET IGNITION COIL,B 772678
80
SCREW , Replaced By: N304017010002
83
NUT SPRING CLAMP
86
SUPPRESSOR HOUSING IGNITION COIL
89
IGNITION CABLE IGNITION COIL
92
CONTROL UNIT ELECTRICAL COMPARTMENT 24 V
95
SCREW CABLE TO FUSE BOX M 6X12
98
LOCK WASHER CABLE TO FUSE BOX
101
WASHER PLUG SOCKET TO BRACKET
999
LOOM TIE BATTERY TO BATTERY SUPPORT
999
LOOM TIE BATTERY TO BATTERY SUPPORT
