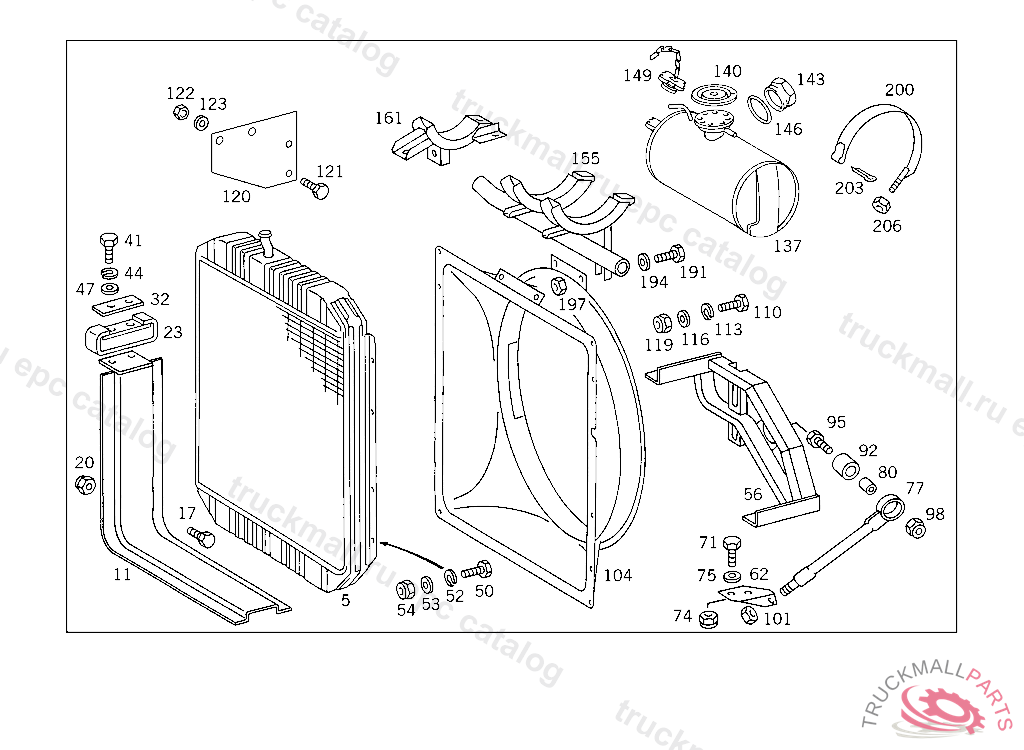

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR
11
SUPPORT
17
SCREW BEARING BRACKET TO SIDE MEMBER
20
NUT BRACKET TO SIDE MEMBER
23
RUBBER MOUNTING RADIATOR
23
RUBBER MOUNTING RADIATOR
32
SHIM RADIATOR TO SUPPORT
41
SCREW RUBBER MOUNTING TO CONSOLE
44
LOCK WASHER , Replaced By: N912004010102
47
WASHER (ARTICULATED ROD)
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW ANGLE TO CROSS MEMBER M 10X30
52
LOCK WASHER , Replaced By: N912004010102
53
WASHER GROUND CABLE
56
SUPPORT
62
BRACKET
71
SCREW , Replaced By: N304017010040
74
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
75
WASHER RUBBER BUFFER TO BASE FRAME AND TO CONSOLE
77
RADIATOR STRUT
77
RADIATOR STRUT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT-NR.: B 948111, Replaced By: A6845007045
80
SPACER TUBE
92
JOINT RUBBER BRACKET TO SUBSTRUCTURE
95
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
98
NUT ALTERNATOR TO SUPPORT
101
NUT LEAF SPRING
104
FAN SHROUD FAN SHROUD TO RADIATOR
110
SCREW PLUG SOCKET TO FRAME
113
LOCK WASHER RAIL TO BATTERY SUPPORT
116
WASHER TRAILER PLUG SOCKET TO BRACKET
119
NUT BRACKET TO SIDE MEMBER
137
TANK COOLING WATER EXPANSION,C 069707
137
TANK COOLING WATER EXPANSION,C 069722
137
TANK COOLING WATER EXPANSION,C 069722
140
VALVE
140
VALVE , Replaced By: A3505017239
149
RADIATOR CAP
149
RADIATOR CAP FILLER NECK
149
RADIATOR CAPTO 364 500 77 49
155
SUPPORT
191
SCREW PLUG SOCKET TO FRAME
194
WASHER TRAILER PLUG SOCKET TO BRACKET
197
NUT
200
STRAP
203
COTTER PIN6.3X63 MM
206
NUT BATTERY CASE
999
RUBBER STRIP EXPANSION TANK TO SUPPORT
