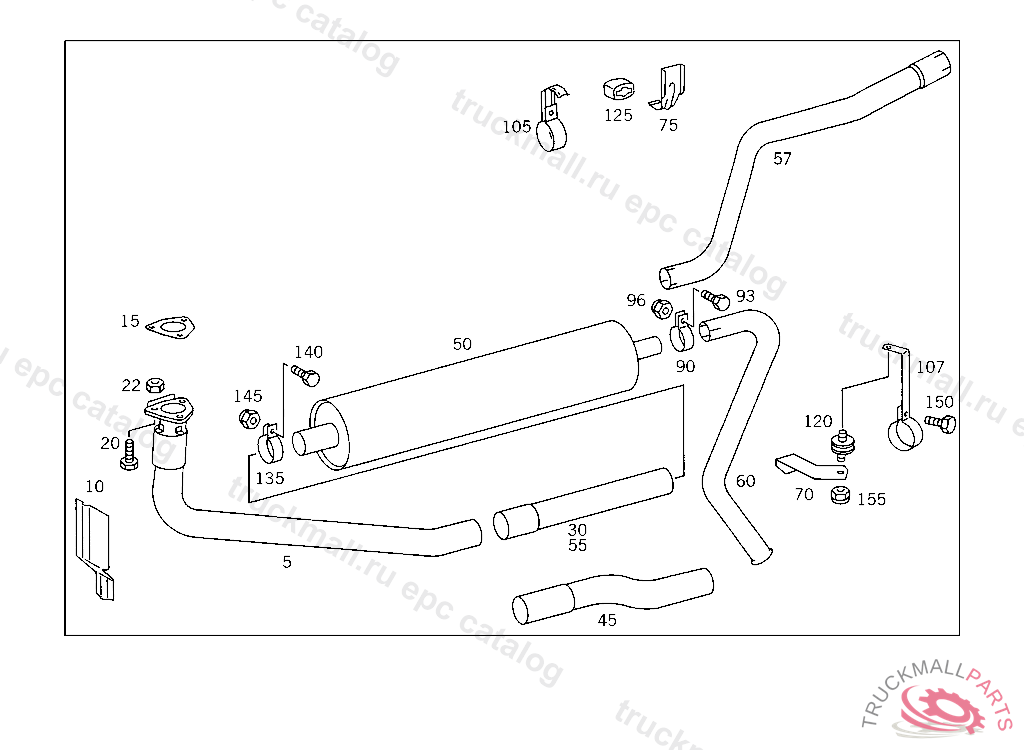

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
10
PROTECTIVE PLATE FRONT EXHAUST PIPE
15
FLANGE GASKET , Replaced By: A4424920080
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
20
SCREW CONNECTOR TO EXHAUST MANIFOLD
22
NUT STRAP TO SUPPORT,5 149419
30
CONNECTOR INTERMEDIATE PIECE,FRONT
45
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER
50
EXHAUST MUFFLER
57
REAR EXHAUST PIPE CENTRAL PART,4 613840
60
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
70
SUPPORT EXHAUST PIPE TO SIDE MEMBER
75
SUPPORT EXHAUST
90
CLAMP CENTRAL EXHAUST PIPE,4 613840
93
SCREW SUPPORT TO CROSS MEMBER M 10X28
96
NUT , Replaced By: N910113010000
96
NUT STRAP TO BRACKET
105
BRACKET TAIL PIPES TO BRACKET
120
RUBBER BUFFER BRACKET TO SUPPORT
125
DAMPING PAD PARTICLE FILTER
135
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
140
SCREW , Replaced By: N304017008034
140
SCREW BRACKET TO CROSS CONNECTION STRUT
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
145
NUT , Replaced By: N913004008001
150
SCREW SUPPORT TO CROSS MEMBER M 10X28
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
999
RUBBER BUFFER EXHAUST MUFFLER
999
CONNECTOR , Replaced By: A3024920509
999
EXHAUST PIPE , Replaced By: A3814900319
999
SUPPORT , Replaced By: A3604910016
999
REAR EXHAUST PIPE , Replaced By: A3814926304
999
BRACKET , Replaced By: A3814923841, +001N071555075502
