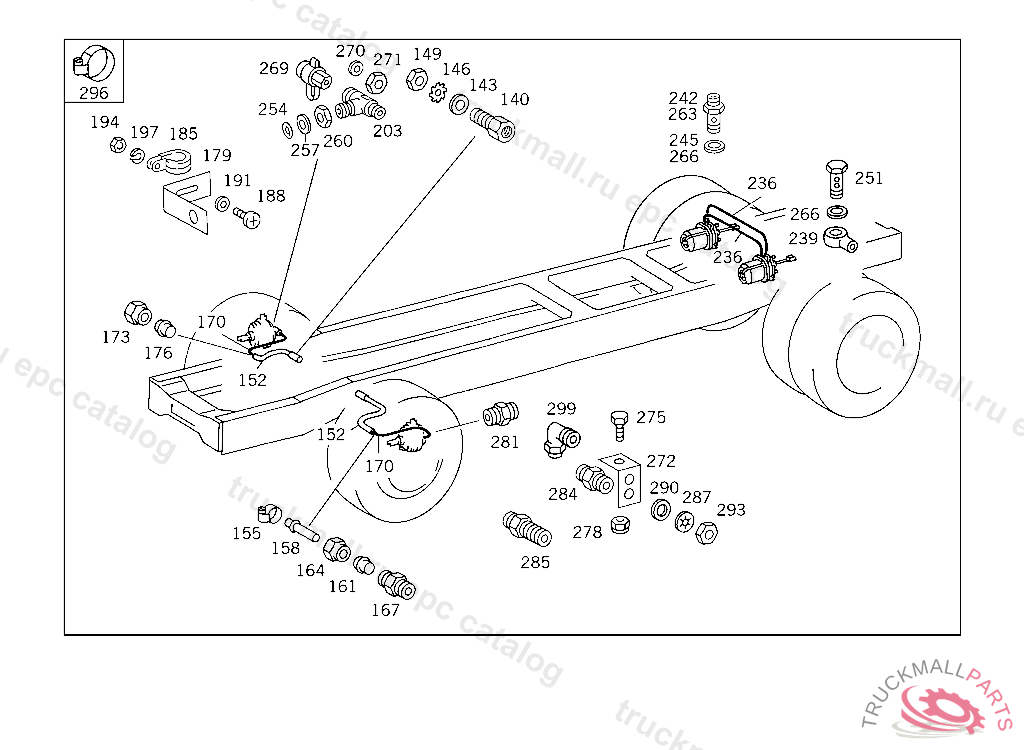

Поз.
Артикул
Описание
140
ADAPTER FITTING COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER
140
ADAPTER FITTING THROUGH SIDE MEMBER
143
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
146
TOOTHED WASHER SENDER UNIT TO BRACKET
149
NUT BRACKET TO SIDE MEMBER
152
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
152
BRAKE HOSE , Replaced By: A3844207248
152
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
152
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
152
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
155
CLAMP HOSE TO FITTING AND TO OIL TANK
155
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
155
LOOM TIE. CLAMP HOSE TO HEATING PIPE
158
FITTING DIAPHRAGM CYLINDER,CONNECTION:
158
FITTING
161
GLAND , Replaced By: A0019901967
164
UNION NUT LINE CONNECTION, Replaced By: N000000006239
167
CONNECTION FITTING , Replaced By: A0049971772
170
LINE LEFT FRONT WHEEL BRAKE CYLINDER 12X1 MM
170
LINE RIGHT FRONT WHEEL BRAKE CYLINDER 12X1 MM
173
UNION NUT LINE CONNECTION, Replaced By: N000000006239
176
GLAND , Replaced By: A0019901967
179
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
185
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
185
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
185
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
188
SCREW CAP TO BRACKET
191
WASHER PLUG SOCKET TO BRACKET
194
NUT
197
LOCK WASHER CABLE TO FUSE BOX
203
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
203
T-FITTING DIAPHRAGM CYLINDER,CONNECTION "1"
245
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
251
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
263
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
263
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
269
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
269
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
269
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
269
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
269
TEST CONNECTION
272
BRACKET
275
SCREW BRACKET TO SIDE MEMBER
278
NUT , Replaced By: N910113014001
281
CONNECTION FITTING
284
BULKHEAD FITTING FROM BRAKE VALVE,CONNECTION "21",TO FITTING
287
TOOTHED WASHER SENDER UNIT TO BRACKET
290
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
293
NUT BRACKET TO SIDE MEMBER
296
CLAMP LINE MOUNTING
296
CLAMP HOSE TO FITTING AND TO OIL TANK
296
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
CLAMP , Replaced By: A3129952420
