Поз.
Артикул
Описание

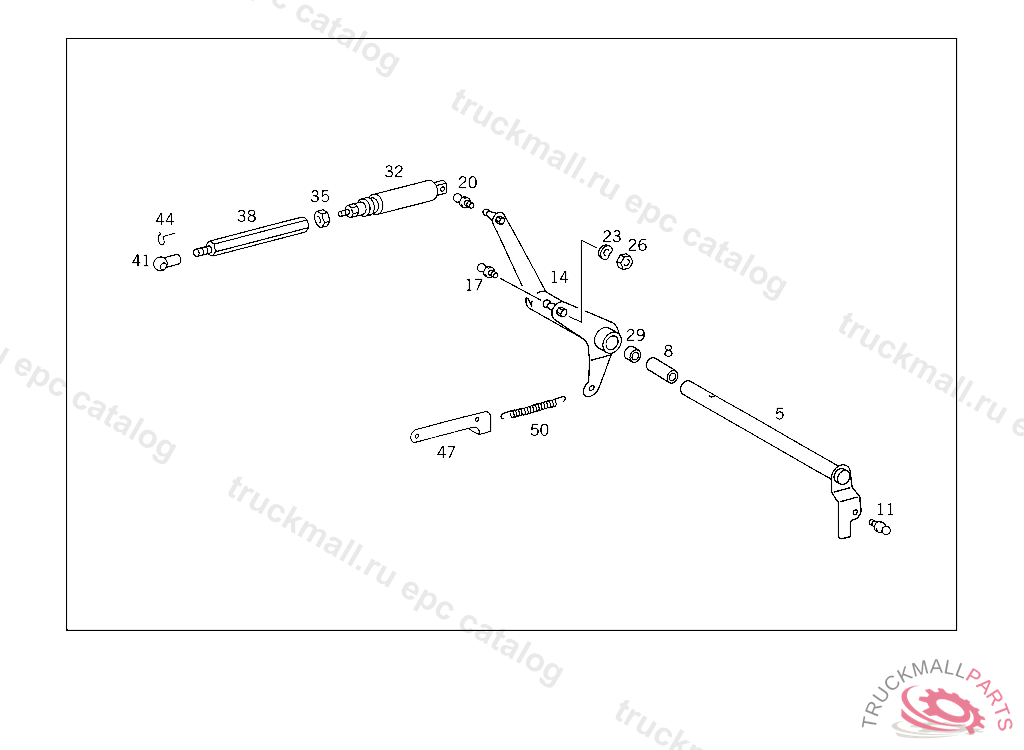

5
SHAFT (CONTROL SHAFT), NOT USED
8
SPACER TUBE CONTROL SHAFT
11
BALL PIVOT GOVERNOR SHAFT LEVER
14
LEVER (CONTROL LEVER),INJECTION PUMP
17
BALL PIVOT INJECTION PUMP
20
BALL PIVOT ACCELERATOR PEDAL,4 859026
23
SPRING WASHER COVER TO THERMOSTAT HOUSING, ELIMINATED NO LONGER REQUIRED
26
NUT
29
CLAMPING SLEEVE
32
CYLINDER (OPERATING CYLINDER)
32
CYLINDER INJECTION PUMP CONTROL
32
CYLINDER , Replaced By: A0000721512
35
NUT SPRING-LOADED PUSH ROD
38
ROD
41
BALL SOCKET
41
BALL SOCKET PULL ROD TO LEVER
44
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
47
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 906,911-915880304 YEAR OF MANUFACTURE 1988 950-981027726, Replaced By: A3640720940, +001A3529930710
50
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
50
SPRING
