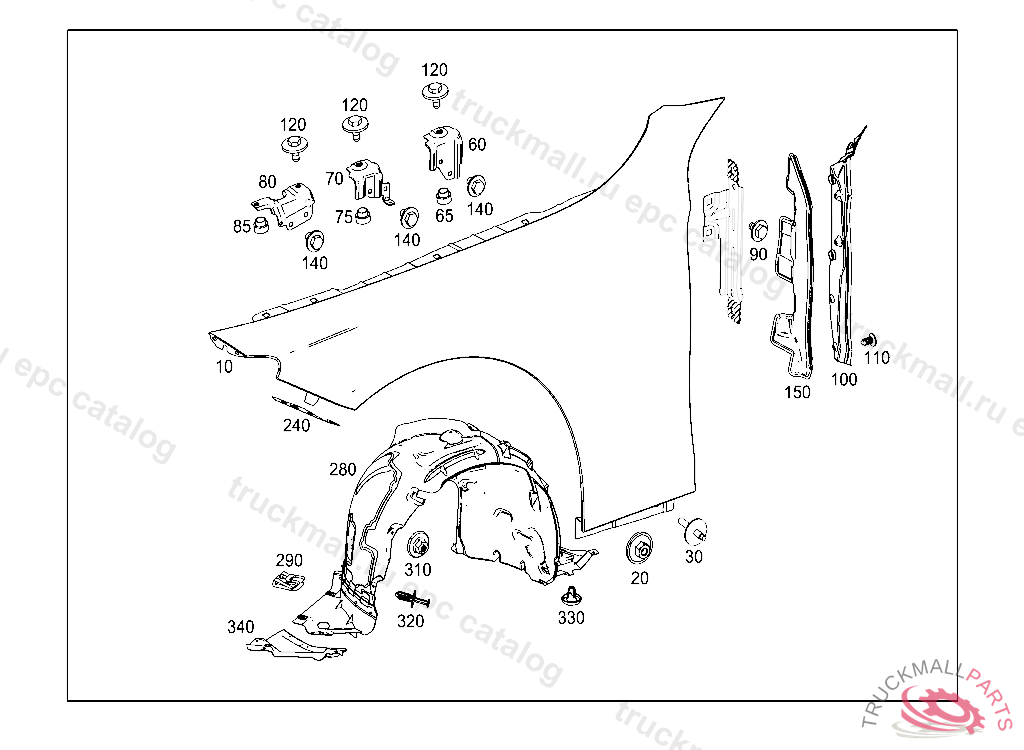

Поз.
Артикул
Описание
10
FRONT FENDER LEFT
10
FRONT FENDER RIGHT
20
NUT FENDER ON SIDE PANEL M6
30
ADJUSTING SCREW FENDER BOTTOM RIGHT MOUNTING M6X44.5
60
BRACKET FENDER TOP REAR RIGHT
60
BRACKET FENDER TOP REAR LEFT
65
RIVET NUT RAIL TO BRACKET, FROM IDENT NO.: 234549
70
BRACKET FENDER CENTRAL TOP LEFT
70
BRACKET FENDER CENTRAL TOP RIGHT
75
RIVET NUT RAIL TO BRACKET, FROM IDENT NO.: 234549
80
BRACKET FENDER FRONT TOP LEFT
80
BRACKET FENDER FRONT TOP RIGHT
85
RIVET NUT RAIL TO BRACKET, FROM IDENT NO.: 234549
90
SCREW-AND-WASHER ASSEMBLY BASS BOX FASTENING M6X12
100
COVER, FENDER GAP FENDER,INSIDE LEFT
100
COVER, FENDER GAP FENDER,INSIDE RIGHT
110
STOP PLUG BRAKE CABLE
120
BOLT SUPPORT TO CROSS MEMBER M6X16
140
SCREW-AND-WASHER ASSEMBLY BASS BOX FASTENING M6X12
150
ABSORBER FENDER,INSIDE LEFT
150
ABSORBER FENDER,INSIDE RIGHT
240
INTERMEDIATE LAYER LEFT FRONT FENDER
240
INTERMEDIATE LAYER RIGHT FRONT FENDER
280
WHEEL HOUSE COVERING FRONT, RIGHT
280
WHEEL HOUSE COVERING FRONT, RIGHT
280
WHEEL HOUSE COVERING FRONT, LEFT
280
WHEEL HOUSE COVERING FRONT, LEFT
290
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
310
PLASTIC NUT WHEELHOUSE COVERING LEFT
310
PLASTIC NUT COVER AT LOAD COMPARTMENT WELL
320
EXPANSION RIVET UNDERBODY SHIELD, J 06837520041130MJ 064877J 064880
330
EXPANSION RIVET BRACKET MOUNTING
