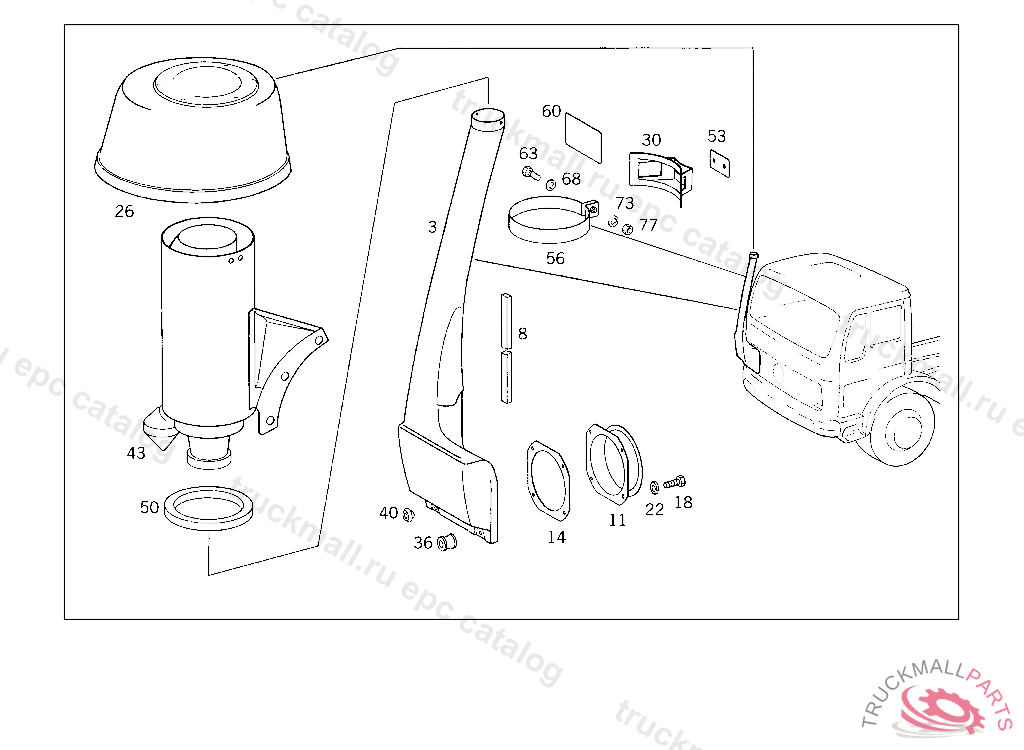

Поз.
Артикул
Описание
3
AIR INTAKE PIPE FRONT RIGHT
8
SEALING RUBBER,. RUBBER SECTION
8
SHIM , Replaced By: A0009872835
11
PIPE
14
INTERMEDIATE PIECE
14
GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 897760, Replaced By: A3818310028
18
SCREW COVER PLATE TO COVER PLATE M 6 X 12
18
SCREW , Replaced By: N304017006018
22
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
26
ANTINOISE CAPSULE AIR INTAKE
30
BRACKET AIR DUCT TO CAB
36
RUBBER MOUNTING AIR DUCT TO CAB
40
PLUG AIR DUCT TO CAB
43
AIR CLEANER ,4 338444
43
AIR CLEANER ,4 338444
43
AIR CLEANER ,4 338444
43
AIR CLEANER ,4 338444
50
GASKET CYCLONE AIR TRAP TO AIR DUCT
53
SHIM BRACKET TO CAB
56
STRAP AIR INTAKE
60
SHIM AIR INTAKE
63
SCREW COVER PLATE TO BRACKET
63
SCREW COVER PLATE TO BRACKET
63
SCREW COVER PLATE TO BRACKET
63
SCREW COVER PLATE TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET
68
WASHER , Replaced By: N009021006208
73
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
73
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
77
NUT
999
VALVE CYCLONE
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944602, +001A4030940941
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944802, +001A4030940941
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944702, +001A4030941041
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944902, +001A4030941041
999
AIR INTAKE PIPE COWL,RIGHT
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE FRONT LEFT
999
AIR INTAKE PIPE FRONT RIGHT, NO LONGER AVAILABLE
999
AIR INTAKE PIPE
999
BRACKET AIR DUCT TO CAB
999
BRACKET AIR CLEANER TO CAB,4 338444
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
NUT
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
