Mercedes
CAR
S 500 4-MATIC
217.385

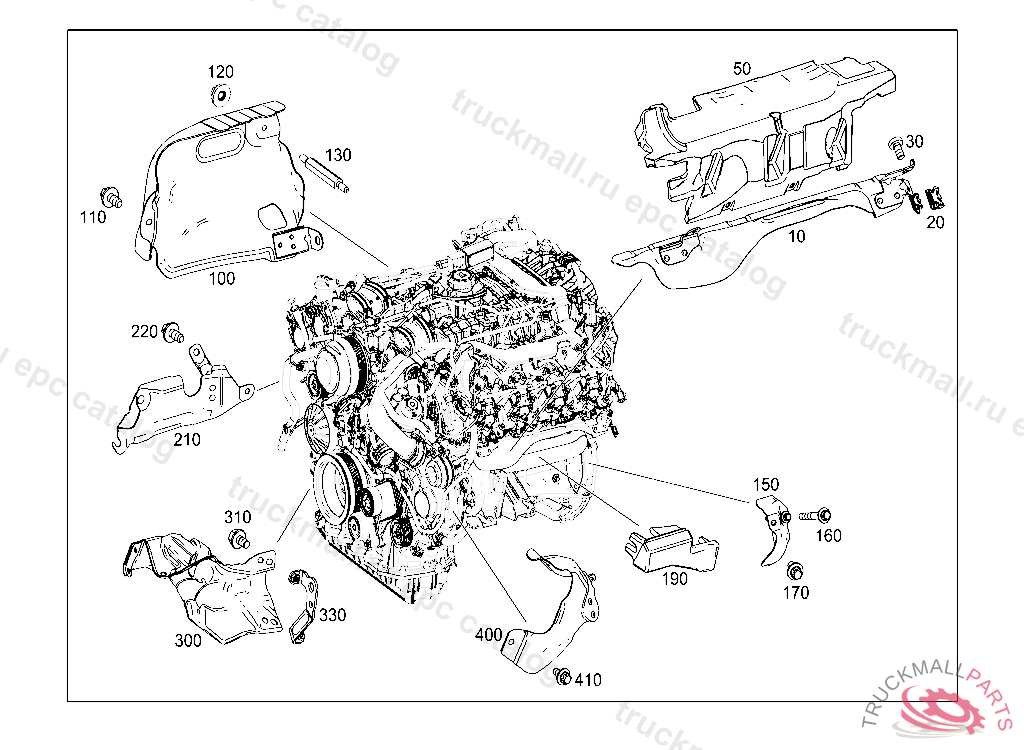

21 MAJOR ASSEMBLY DETACHABLE BODY COMP.
300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION

Mercedes A2213320388 - Кулак поворотный

S 500 4-MATIC 217.385

21 MAJOR ASSEMBLY DETACHABLE BODY COMP. - 300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION

Поз.
Артикул
Описание
10
A2780940720
SCREENING PLATE RIGHT
10
A2780944920
SCREENING PLATE LEFT, A 20130508
20
A0009910271
RETAINING CLAMP18X19 MM
30
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
30
N000000001145
SCREW BRACKET TO COVERING
50
A2782262085
SOUNDPROOFING TOP RIGHT
50
A2782262185
SOUNDPROOFING TOP LEFT
100
A2781503375
SCREENING PLATE STARTING MOTOR, A 02963420111029
110
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
300
A2213320388
SCREENING PLATE FRONT AXLE GEAR, A 87291020130328 G 20130328 R 29354120130423
310
N000000004310
HEXAGON HEAD BOLT LINE MOUNTING M6X10
330
A2213350440
BRACKET SHIELDING AT FRONT AXLE GEAR, A 09213020130328
