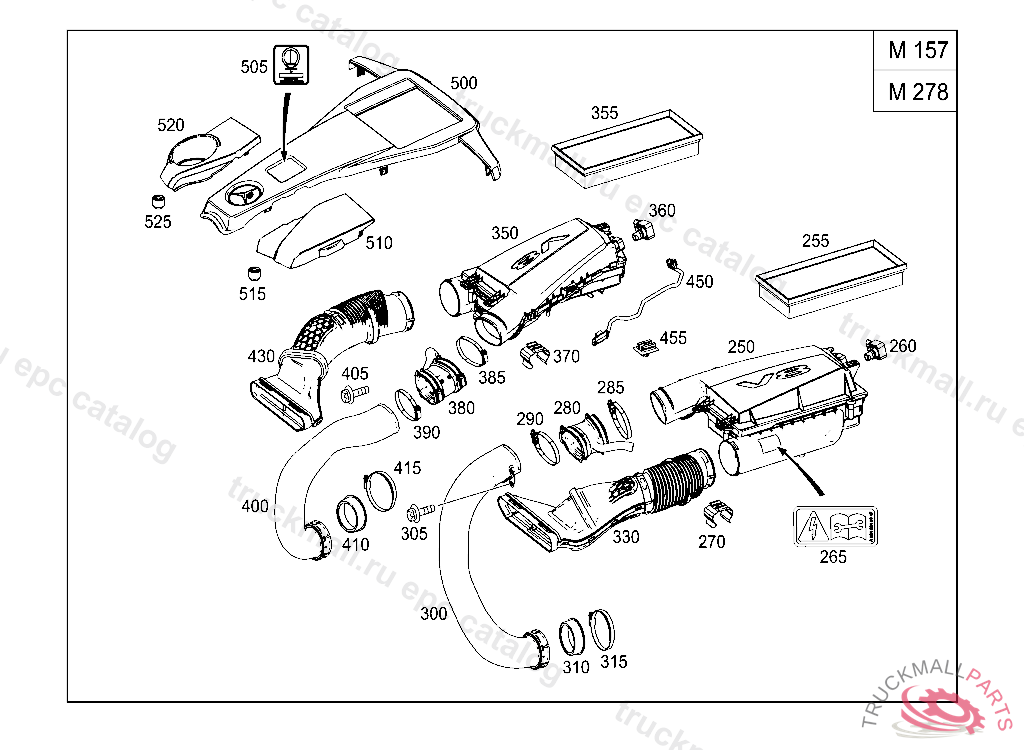

Поз.
Артикул
Описание
250
DAMPER FILTER AIR FILTER HOUSING LEFT
250
DAMPER FILTER AIR FILTER HOUSING LEFT
255
AIR FILTER INSERT
260
PRESSURE SENSOR ON AIR CLEANER
280
BOOT LEFT
285
CLAMP W WORM DRIVE BOOT TO AIR FILTER HOUSING
290
CLAMP W WORM DRIVE BOOT TO CLEAN AIR LINE
300
CLEAN AIR LINE LEFT AIR INTAKE
305
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
310
SEAL RING
315
LOOM TIE LINE MOUNTING
330
AIR INTAKE HOSE LEFT
350
DAMPER FILTER AIR FILTER HOUSING RIGHT
350
DAMPER FILTER AIR FILTER HOUSING RIGHT
355
AIR FILTER INSERT
360
PRESSURE SENSOR ON AIR CLEANER
380
BOOT RIGHT WITH VENT LINE
380
BOOT RIGHT WITHOUT VENT LINE
385
CLAMP W WORM DRIVE BOOT TO AIR FILTER HOUSING
390
CLAMP W WORM DRIVE BOOT TO CLEAN AIR LINE
400
CLEAN AIR LINE RIGHT AIR INTAKE
405
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
410
SEAL RING
415
LOOM TIE LINE MOUNTING
430
AIR INTAKE HOSE RIGHT
450
ENGINE WIRING HARNESS TO PRESSURE SENSOR, A 02688320101027
455
BRACKET CABLE HARNESS PLUG-CONNECTION
500
ENGINE COVER CENTRAL, A 02991020111222
510
COVER LEFT
520
COVER RIGHT
