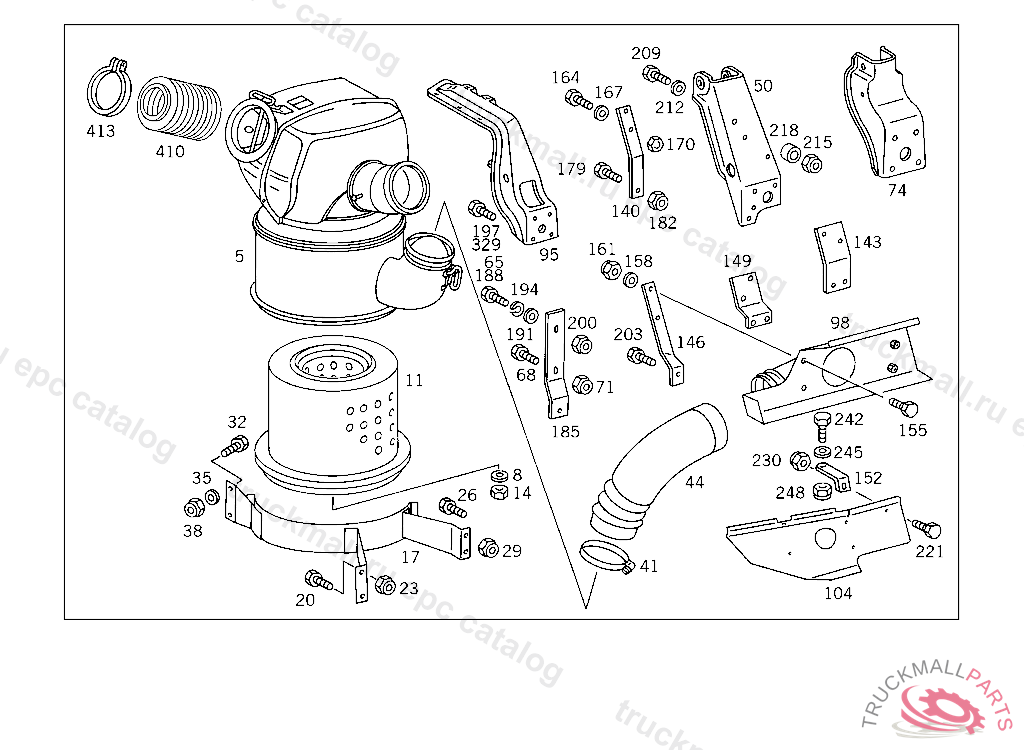

Поз.
Артикул
Описание
5
AIR CLEANER AIR INTAKE
5
AIR CLEANER AIR INTAKE
5
AIR CLEANER AIR INTAKE
5
AIR CLEANER AIR INTAKE
8
WASHER FELT
11
FILTER ELEMENT
11
FILTER ELEMENTT0 010 094 15 02
11
FILTER ELEMENT
11
FILTER ELEMENTT0 010 094 15 02
11
FILTER ELEMENT
11
FILTER ELEMENTT0 010 094 15 02
14
NUT
17
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
17
SUPPORT AIR CLEANER,K 000844
17
SUPPORT AIR CLEANER
20
SCREW , Replaced By: N308676014020
20
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
20
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
23
NUT , Replaced By: N910113014001
23
NUT BRACKET TO SIDE MEMBER
23
NUT COMBINATION CYLINDER TO BEARING BRACKET
26
SCREW , Replaced By: N308676012026
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
29
NUT SUPPORT TO SIDE MEMBER
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
35
WASHER , Replaced By: N000125010532
35
WASHER RADIATOR TO RUBBER MOUNTING
38
NUT , Replaced By: N910113010000
38
NUT STRAP TO BRACKET
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
50
CONSOLE RIGHT SHOCK ABSORBER
65
SCREW BRACKET TO AIR INTAKE SCOOP
68
SCREW , Replaced By: N304017008016
68
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
NUT , Replaced By: N913004008001
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
BRACKET , Replaced By: A6203230040
74
BRACKET RIGHT SHOCK ABSORBER
74
BRACKET , Replaced By: A6243230340
74
BRACKET RIGHT SHOCK ABSORBER
95
BRACKET FENDER AND SHOCK ABSORBER,RIGHT
98
SCOOP AIR INTAKE
98
SCOOP AIR INTAKE
98
SCOOP AIR INTAKE
98
SCOOP RIGHT FRONT WHEEL ARCH
104
SCOOP AIR INTAKE
104
SCOOP AIR INTAKE
140
BRACKET CABLE TO TRANSMISSION
143
BRACKET INTAKE SCOOP
146
BRACKET INTAKE SCOOP
149
BRACKET INTAKE SCOOP
152
BRACKET INTAKE SCOOP
155
SCREW , Replaced By: N304017008021
155
SCREW PIPE CLAMP
158
WASHER BRACKET TO AIR INTAKE SCOOP
161
NUT , Replaced By: N913004008001
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
SCREW , Replaced By: N304017010002
164
SCREW BRACKET TO SIDE MEMBER
167
WASHER , Replaced By: N007349010007
167
WASHER STRUT TO CROSS MEMBER
170
NUT , Replaced By: N910113010000
170
NUT STRAP TO BRACKET
179
SCREW BRACKET TO LEFT SIDE MEMBER
182
NUT SUPPORT TO SIDE MEMBER
185
BRACKET INTAKE SCOOP, TO BE ADAPTED DURING ASSEMBLY
185
BRACKET INTAKE SCOOP
185
BRACKET INTAKE SCOOP
185
BRACKET COMPRESSED AIR LINES,K 168169
185
BRACKET , Replaced By: A6555280940
185
BRACKET OIL DIPSTICK GUIDE TUBE
185
BRACKET INTAKE SCOOP, TO BE ADAPTED DURING ASSEMBLY
188
SCREW , Replaced By: N304017008021
188
SCREW PIPE CLAMP
188
SCREW PIPE CLAMP
188
SCREW PIPE CLAMP
191
WASHER , Replaced By: N009021008213
191
WASHER BRACKET TO LEFT SIDE MEMBER
194
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
197
SCREW , Replaced By: N308676016020
197
SCREW CONSOLE TO FRAME
200
NUT , Replaced By: N913004008001
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
203
SCREW BRACKET TO FRAME M 12X35
209
SCREW , Replaced By: N304017008021
209
SCREW PIPE CLAMP
212
WASHER BRACKET TO AIR INTAKE SCOOP
215
NUT , Replaced By: N913004008001
215
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
218
SPACER TUBE , Replaced By: A3805410053
218
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
221
SCREW REAR EXHAUST PIPE TO MUFFLER
221
SCREW REAR EXHAUST PIPE TO MUFFLER
230
NUT , Replaced By: N910113010000
230
NUT STRAP TO BRACKET
242
SCREW , Replaced By: N304017010002
242
SCREW BRACKET TO SIDE MEMBER
242
SCREW BRACKET TO SIDE MEMBER
245
WASHER , Replaced By: N007349010007
245
WASHER STRUT TO CROSS MEMBER
245
WASHER STRUT TO CROSS MEMBER
248
NUT , Replaced By: N910113010000
248
NUT STRAP TO BRACKET
248
NUT STRAP TO BRACKET
329
SCREW , Replaced By: N308676016020
329
SCREW CONSOLE TO FRAME
410
BOOT AIR INTAKE
410
BOOT AIR INTAKE
413
CLAMP BOOT TO INTAKE PIPE
413
CLAMP BOOT TO INTAKE PIPE
999
CLAMP , Replaced By: A0059971490
999
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW SUPPORT TO FENDER
999
SCREW VALVE TO BRACKET
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: N071555100501
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , Replaced By: N304014008002
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008018
999
SCREW BRACKET ON LOAD SENSOR
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
999
HOSE , Replaced By: A9415281182
999
BRACKET FENDER AND SHOCK ABSORBER,RIGHT
999
ANTINOISE CAPSULE RIGHT CENTRAL WHEEL ARCH
999
ANTINOISE CAPSULE , Replaced By: A6565200004
999
SCOOP RIGHT FRONT WHEEL ARCH
999
CONSOLE RIGHT SHOCK ABSORBER
999
BRACKET AIR CLEANER,FRONT RIGHT
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
BRACKET
999
BRACKET
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
999
MUFFLER AIR CLEANER
999
BRACKET MUFFLER TO SIDE MEMBER
999
BRACKET MUFFLER TO SIDE MEMBER
999
HOSE FROM AIR CLEANER TO INTAKE FITTING
999
BRACKET ANTINOISE CAPSULE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET ANTINOISE CAPSULE,LEFT
999
BRACKET ANTINOISE CAPSULE
999
ANTINOISE CAPSULE RIGHT FRONT WHEEL ARCH
999
ANTINOISE CAPSULE , Replaced By: A6525200104
999
ENGINE HOOD RIGHT CENTRAL
999
BRACKET ANTINOISE CAPSULE
999
ANTINOISE CAPSULE RIGHT CENTRAL
999
AIR INTAKE PIPE
999
ANTINOISE CAPSULE RIGHT FRONT
999
SCOOP RIGHT FRONT WHEEL ARCH
999
SCOOP RIGHT FRONT WHEEL ARCH
999
BRACKET ANTINOISE CAPSULE
999
ANTINOISE CAPSULE RIGHT FRONT
999
BOOT
999
BRACKET AIR CLEANER,REAR RIGHT
999
BRACKET ,K 000843K 000844, Replaced By: A6555282340, +002N000961016009, +002N913004016004
999
BRACKET AIR CLEANER,REAR
999
CLAMP BOOT TO INTAKE PIPE
999
BOOT FROM AIR CLEANER TO INTAKE FITTING,5 946572
999
BRACKET , Replaced By: A6215280440
999
HOSE FROM AIR CLEANER TO CLEAN AIR INTAKE PIPE
999
BRACKET , Replaced By: A3875205841
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
BRACKET , Replaced By: A3464310440
999
COVERING
999
AIR INTAKE PIPE AIR INTAKE
999
AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
SCOOP AIR INTAKE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
SCOOP AIR INTAKE, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
