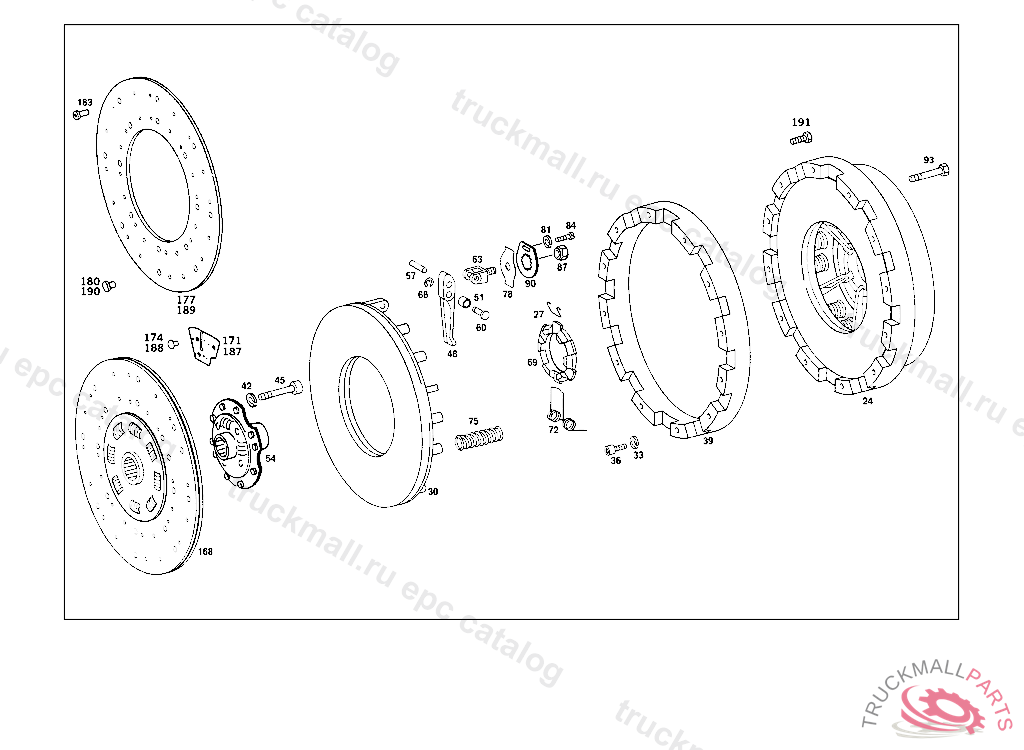

Поз.
Артикул
Описание
24
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
24
CLUTCH PRESSURE PLATE ,4 372223, Replaced By: A0022508804, +001A4030301005, +001A0062507603, +012N000931010135
24
CLUTCH PRESSURE PLATE
24
CLUTCH PRESSURE PLATE
24
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
27
CLAMP RELEASE FLANGE TO RELEASE LEVER
27
CLAMP , Replaced By: A0002523227
27
CLAMP RELEASE FLANGE TO RELEASE LEVER
30
PRESSURE PLATE
30
PRESSURE PLATE
30
PRESSURE PLATE
33
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
36
SCREW
39
SPACER RING
39
SPACER RING
39
SHIM CLUTCH PRESSURE PLATE TO FLYWHEEL
39
SHIM CLUTCH PRESSURE PLATE TO FLYWHEEL
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
45
SCREW NMV FOLLOWER TO CLUTCH PRESSURE PLATE
45
SCREW , Replaced By: N000912008072
45
SCREW , Replaced By: N000000001448
45
HEXALOBULAR BOLT. SCREWM 8X45
45
SCREW RELEASE LEVER,BRACKET
45
SCREW RELEASE LEVER,BRACKET
45
SCREW , Replaced By: N000912008062
45
SCREW NMV FOLLOWER TO CLUTCH PRESSURE PLATE
48
RELEASE LEVER CLUTCH ACTUATION
51
BUSHING RELEASE LEVER
54
TORS. VIBRATION ABSORBER
54
TORS. VIBRATION ABSORBER
54
DAMPER SPRING
54
DAMPER SPRING
57
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
57
SPINDLE , Replaced By: A0002520616
60
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
63
BRACKET RELEASE LEVER
66
LOCK PLATE RELEASE LEVER TO SHAFT
69
FLANGE CLUTCH RELEASE
69
FLANGE CLUTCH RELEASE
69
FLANGE
69
FLANGE
72
SPRING , Replaced By: A0002522927
72
SPRING RELEASE LEVER
72
SPRING RELEASE FLANGE TO RELEASE LEVER
72
SPRING RELEASE FLANGE TO RELEASE LEVER
72
SPRING RELEASE LEVER
72
SPRING RELEASE LEVER
75
PRESSURE SPRING
75
PRESSURE SPRING
75
PRESSURE SPRING
75
PRESSURE SPRING
75
PRESSURE SPRING
75
PRESSURE SPRING ,4 372223
75
PRESSURE SPRING
78
LEAF SPRING FOR BRACKETS
81
LOCK WASHER BRACKET TO STEERING COLUMN END
81
LOCK WASHER BRACKET TO STEERING COLUMN END
84
SCREW
87
NUT FOR BRACKETS
87
NUT , Replaced By: A0002523072
90
LOCK FOR BRACKETS
93
SCREW CLUTCH TO FLYWHEEL
93
SCREW CLUTCH TO FLYWHEEL
168
CLUTCH DISC , Replaced By: A0102504803
168
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
168
CLUTCH DISC , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 070890, Replaced By: A0062505503
168
CLUTCH DISC , Replaced By: A0102504703
168
CLUTCH DISC , Replaced By: A0102504703
168
CLUTCH DISC ,4 372223, Replaced By: A0032508803, +001A4030301005, +001A0022508804, +012N000931010135
168
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
168
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
168
CLUTCH DISC , Replaced By: A0062507603
168
CLUTCH DISC ,4 372224
168
CLUTCH DISC ,4 372224
168
CLUTCH DISC ASBESTOS-FREE LINING
171
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523919, +002A0002523975
171
LEAF SPRING
171
LEAF SPRING ,5 563495
171
LEAF SPRING , Replaced By: A0002523319
171
LEAF SPRING
174
RIVET LEAF SPRING TO CLUTCH DISC
174
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
174
RIVET , Replaced By: A0002522075
174
RIVET LEAF SPRING TO CLUTCH DISC
174
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
177
CLUTCH LINING ASBESTOS-FREE, 240-MM-I.D. LINING
177
CLUTCH LINING ASBESTOS-FREE
177
CLUTCH LINING ASBESTOS-FREE,4 372223
177
CLUTCH LINING , Replaced By: A0002527510
177
CLUTCH LINING
177
CLUTCH LINING ASBESTOS-FREE
177
CLUTCH LINING ASBESTOS-FREE
177
CLUTCH LINING , Replaced By: A0022520010
177
CLUTCH LINING , Replaced By: A0012528310
177
CLUTCH LINING , Replaced By: A0012522010
177
CLUTCH LINING , Replaced By: A0012522010
177
CLUTCH LINING
180
RIVET , Replaced By: A0002523775
180
RIVET , Replaced By: A0002524675
180
RIVET , Replaced By: A0002524875
180
RIVET LINING WITH CLUTCH DISC
180
RIVET LINING WITH CLUTCH DISC
180
RIVET LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING,4 372223
180
RIVET , Replaced By: A0002523375
180
RIVET LINING WITH CLUTCH DISC
180
RIVET LINING WITH CLUTCH DISC
183
RIVET , Replaced By: A0002524875
183
RIVET LINING WITH CLUTCH DISC
183
RIVET LINING WITH CLUTCH DISC
187
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
187
LEAF SPRING
188
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
188
RIVET LEAF SPRING TO CLUTCH DISC
189
CLUTCH LINING ASBESTOS-FREE
189
CLUTCH LINING
190
RIVET LINING WITH INTERMEDIATE SPRING
190
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
190
RIVET LEAF SPRING TO CLUTCH DISC
190
RIVET LINING WITH CLUTCH DISC,5 563495
191
SCREW REAR EXHAUST PIPE TO MUFFLER
999
RELEASE BEARING CLUTCH ACTUATION
999
PLUG , Replaced By: A0002510183
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
HOUSING CLUTCH PRESSURE PLATE, FROM IDENT NO. 650281 EXCEPTO SEE FOOTNOTE 9
999
HOUSING
999
VALVE , Replaced By: A0002608157
999
VALVE , Replaced By: A0012602457
999
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
BUSHING , Replaced By: N915062002000
999
ROD END CLUTCH ACTUATION
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SWITCH , Replaced By: A0025458114
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING LEVER TO RELEASE SHAFT,5 285575
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH PRESSURE PLATE CLUTCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH DISC
999
CLUTCH DISC ASBESTOS-FREE LINING
999
CLUTCH DISC , Replaced By: A0072501303
999
CLUTCH DISC ASBESTOS-FREE LINING
999
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
999
PIN CLUTCH ACTUATION
999
LEVER CLUTCH ACTUATION,4 601610
999
WASHER AS REQUIRED 0.80 MM
999
WASHER AS REQUIRED 1.20 MM
999
WASHER AS REQUIRED 1.3 MM
999
SPRING RELEASE BEARING TO RELEASE LEVER
999
SCREW SHIFTING ROD TO TRANSMISSION
999
SEAL RING BOTTOM
999
SPACER RING BRACKET TO REAR AXLE HOUSING,5 244591
999
SPACER WASHER RELEASE SHAFT,BOTTOM
999
WASHER CONSOLE TO FRAME
999
SHIFTING ROD REAR
999
LINE , Replaced By: A3812901614
999
JOINT SHIFTING ROD TO TRANSMISSION
999
SUPPORTING ARM BELL HOUSING,4 753305
999
PLUG BELL HOUSING
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
999
WASHER , Replaced By: A6202540176
999
VALVE (SHIFT LEVER VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
999
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
999
BRACKET , Replaced By: A3072950840
999
BRACKET HYDRAULIC HOSE TO TRANSMISSION CASE TOP COVER,4 483474
999
BRACKET HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER,4 653180
999
BRACKET
999
HOSE RELEASE COLLAR LUBRICATION 220 MM
999
ENGINE SUPPORT REAR LEFT,4 743986
999
ENGINE SUPPORT REAR RIGHT,4 743986
999
SHIFTING ROD REAR,4 817018
999
BRACKET SOLENOID VALVE,4 411810
999
BRACKET LINE MOUNTING,4 411811
999
SHIFTING ROD REAR
999
BRACKET , NOT USED
999
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
999
HOUSING ,5 285575, Replaced By: A6202501105, +001A6202500155
999
PLUG , Replaced By: A0002510283
999
ENGINE SUPPORT LEFT REAR,4 743986
999
ENGINE SUPPORT RIGHT REAR,4 743986
999
ENGINE SUPPORT LEFT REAR
999
ENGINE SUPPORT RIGHT REAR
999
RELEASE LEVER CLUTCH ACTUATION
999
SHIFTING ROD REAR,4 8557044 921176
999
SHIFTING ROD REAR
999
HANDLE , Replaced By: A6202680142, +001A6202680157
999
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
BOOT SHIFTING ROD
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
LINE , Replaced By: A3812901514
999
CAP RELEASE BEARING LUBRICATION
999
GREASE NIPPLE RELEASE COLLAR LUBRICATION
