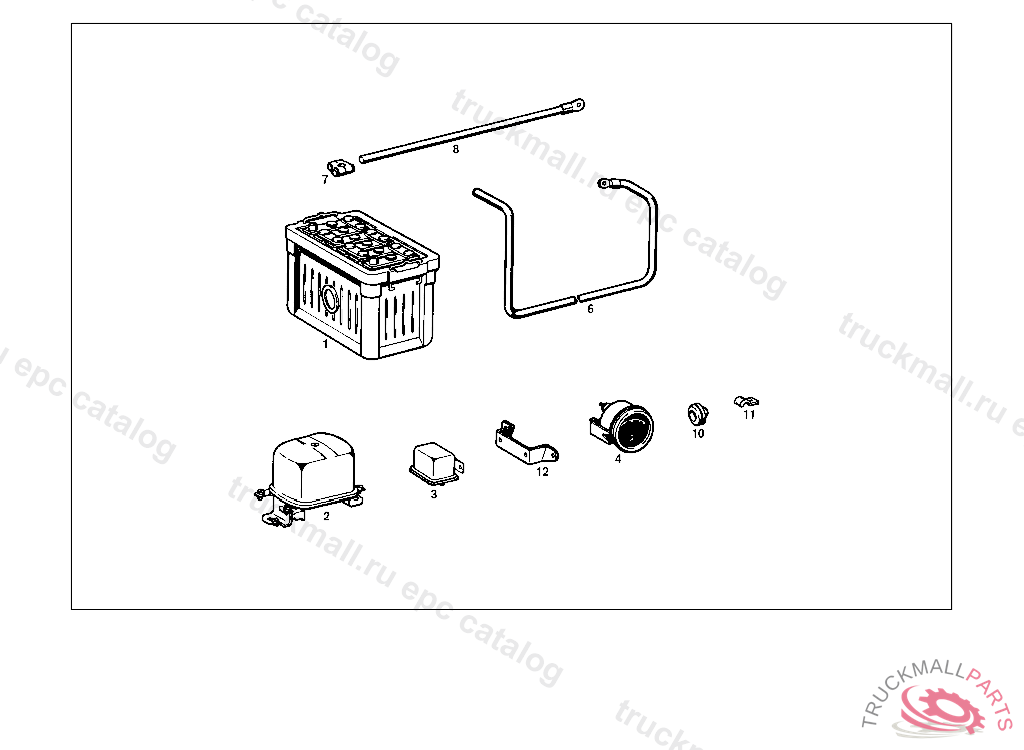

Поз.
Артикул
Описание
1
BATTERY , Replaced By: A0035410001
1
BATTERY , Replaced By: A0005418301
1
BATTERY12 V/100 AH
2
RELAY12 V
3
RELAY , Replaced By: A0005423419
3
RELAY
4
AMMETER , UP TO CHASSIS: 108.016 049941 108.018,019 053705 109.016 UNTIL PRODUCTION STOP 109.018 004013 109.056 000865
6
ELECTRIC CABLE (FROM BATTERY TO AMMETER)
7
SCREW TERMINAL BATTERY POS.POLE
8
NEG. CABLE
10
GROMMET 34 MM
11
CLAMP
11
CLAMP FLEXIBLE SHAFT
12
BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
BULB2W
999
SCREW CONTROL UNIT TO CAB
999
SHEET METAL SCREW , Replaced By: N000000000459
999
SHEET METAL SCREW , Replaced By: N007981004339
999
NUT BALL PIVOT TO LEVER
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017006018
999
LOCK WASHER TAIL LAMP TO BRACKET
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
WASHER MOUNTING PLATE TO BODY FLOOR
999
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
999
CABLE HARNESS HARNESS FOR SECOND BATTERY
999
ELECTRIC CABLE
