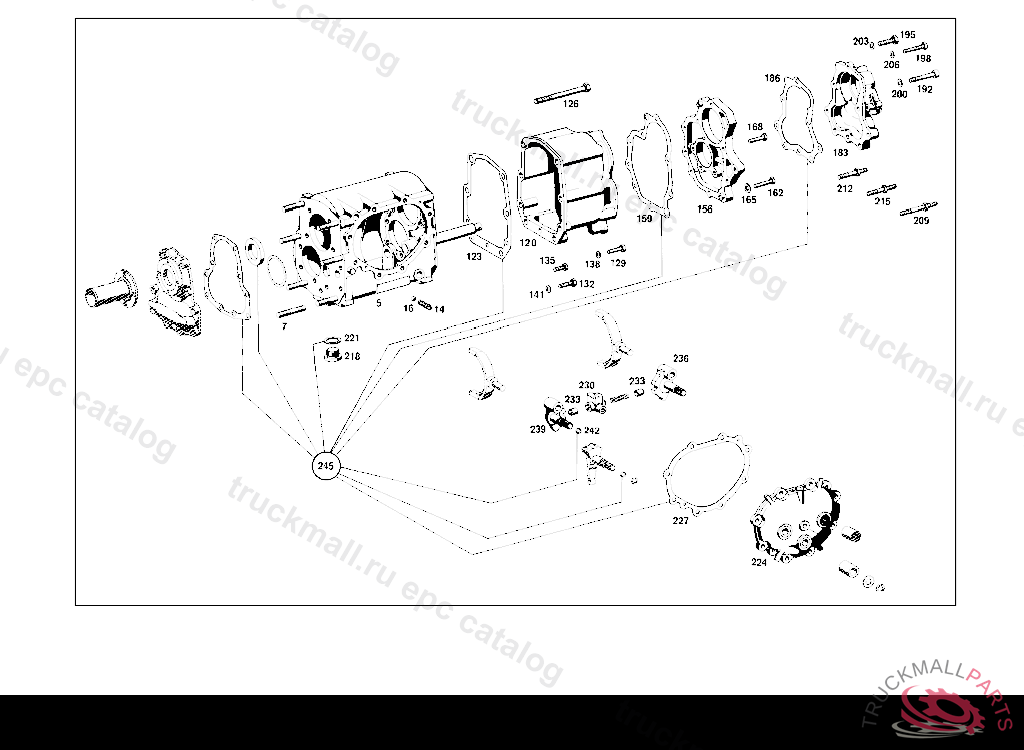

Поз.
Артикул
Описание
5
TRANSMISSION CASE
7
STUD BOLT
14
SPRING
16
BALL SHIFTING ROD
120
TRANSMISSION CASE
123
GASKET
126
SCREW
129
SCREW REAR EXHAUST PIPE TO MUFFLER
132
SCREW
135
SCREW
138
WASHER , Replaced By: N000125010532
138
WASHER RADIATOR TO RUBBER MOUNTING
141
WASHER COVER PLATE TO COVER PLATE
156
BRACKET
159
GASKET
162
SCREW
165
WASHER COVER PLATE TO COVER PLATE
168
SCREW
183
TRANSMISSION CASE COVER
186
GASKET
192
SCREW NMV FOLLOWER TO CLUTCH PRESSURE PLATE
195
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
195
SCREW , Replaced By: N000933008337
195
SCREW , Replaced By: A0099900101
198
SCREW
200
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
203
WASHER , Replaced By: N000125008443
203
WASHER EXHAUST MUFFLER TO STRAP
206
WASHER COVER PLATE TO COVER PLATE
209
SCREW
212
SCREW
215
SCREW
218
SCREW PLUG
218
SCREW PLUG , Replaced By: A2109970132
218
SCREW PLUG , Replaced By: A1159970032
221
SEAL RING OIL FILLING AND OIL DRAIN
224
TRANSMISSION CASE COVER
224
TRANSMISSION CASE COVER , Replaced By: A1172603113, +001A1152603873
227
GASKET
230
DETENT
233
PIN
236
DETENT , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
239
DETENT 3RD AND 4TH SPEED
239
DETENT , Replaced By: A1152603873, +001A0049815510
242
SEAL RING , Replaced By: A0119976548
242
SEAL RING , Replaced By: A0079970348
242
SEAL RING
245
GASKET KIT
245
REPAIR KIT , Replaced By: A1142600068
999
TRANSMISSION CASE COVER , Replaced By: A1172602416
999
TRANSMISSION CASE COVER , Replaced By: A1172602516
999
SYNCHRONIZER BODY , Replaced By: A1172602845, +001A1152623034
999
SYNCHRONIZER BODY , Replaced By: A1172603345
999
TRANSMISSION
999
SPACER WASHER3,9 MM
999
SPACER WASHER4.0 MM
999
SLIDING COLLAR , UP TO TRANSMISSION 005925, Replaced By: A1172621023
999
SPACER WASHER4.1 MM
999
SPACER WASHER4.2 MM
999
MAIN SHAFT , 114.010 035376 114.015 039338 114.021 002070 114.022 003026 114.023 002070, Replaced By: A1172621405, +001A1239900060
999
DRIVE GEAR , Replaced By: A1172640130
999
KEY
999
CYLINDRICAL PIN
999
GROOVED BALL BEARING FRONT DRIVE SHAFT
999
SCREW STRAP TO BRACKET
999
BALL BEARING , Replaced By: A0019812025
999
BALL BEARING , Replaced By: A0029810625
999
BALL BEARING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0029810625
999
BALL BEARING , Replaced By: A0019813525
999
BALL BEARING , Replaced By: A0019814125
999
BALL BEARING
999
NEEDLE BEARING , Replaced By: A0049810710
999
BALL BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
BALL BEARING
999
BALL BEARING
999
NEEDLE BEARING , Replaced By: A0049812310
999
NEEDLE BEARING 1ST SPEED GEAR
999
NEEDLE BEARING 3RD SPEED, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
999
NEEDLE BEARING 3RD SPEED, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
999
NEEDLE BEARING , Replaced By: A0049812310
999
BALL BEARING
999
NEEDLE BEARING 3RD SPEED
999
TRANSMISSION
999
AUTOMATIC TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 114.011 110834 114.015 260734 114.023 101154 115.015 298934 115.110 461754 115.115 329264, Replaced By: A1152604201
999
SYNCHRONIZER BODY , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359, Replaced By: A1152604445, +002A1152623034
999
SYNCHRONIZER BODY , Replaced By: A1152604945
999
SLIDING COLLAR , Replaced By: A1152621823
999
SYNCHRONIZER RING 3RD AND 4TH SPEED, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
LINE
999
SPINDLE , UP TO TRANSMISSION 006170
999
TRANSMISSION CASE , USE UP THE OLD PARTS STILL CARRIED IN STOCK UP TO TRANSMISSION 006170, Replaced By: A1172601411
999
SYNCHRONIZER BODY , UP TO TRANSMISSION 005925, Replaced By: A1172602445, +001A1172602745
999
GEAR , UP TO TRANSMISSION 005925, Replaced By: A1172602744, +001A1172621023
999
SYNCHRONIZER BODY , Replaced By: A1172603045, +002A1152622934
999
TRANSMISSION , Replaced By: A1172603701
