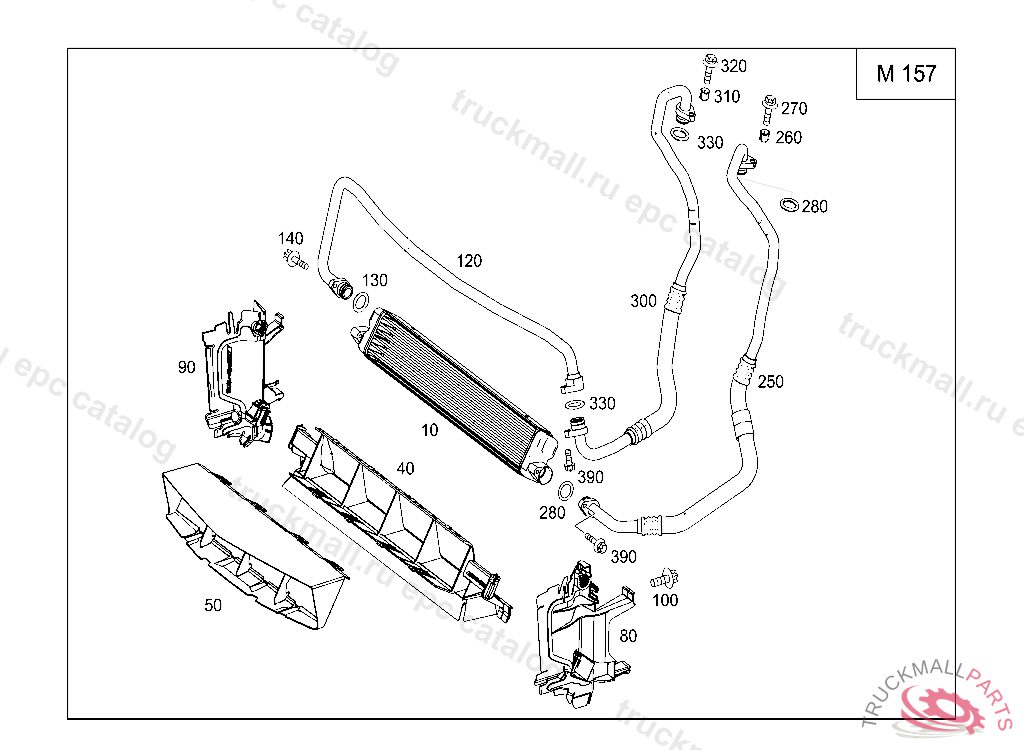

Поз.
Артикул
Описание
10
OIL COOLER
40
AIR DUCT EXHAUST AIR, OIL COOLER
50
AIR DUCT SUPPLY AIR, OIL COOLER
50
AIR DUCT SUPPLY AIR, OIL COOLER
80
BRACKET LEFT
80
BRACKET LEFT
90
BRACKET RIGHT
90
BRACKET RIGHT
100
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
120
OIL LINE SEPARATION POINT TO OIL COOLER
120
OIL LINE SEPARATION POINT TO OIL COOLER
130
SEAL RING OIL LINE TO OIL FILTER
140
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
250
OIL LINE OIL FILTER HOUSING AT OIL COOLER, FEED LINE
260
PILOT BUSHING OIL LINE
270
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
280
SEAL RING OIL LINE TO OIL FILTER
300
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING
300
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING
310
PILOT BUSHING OIL LINE
320
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
330
SEAL RING OIL LINE TO OIL FILTER
390
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
