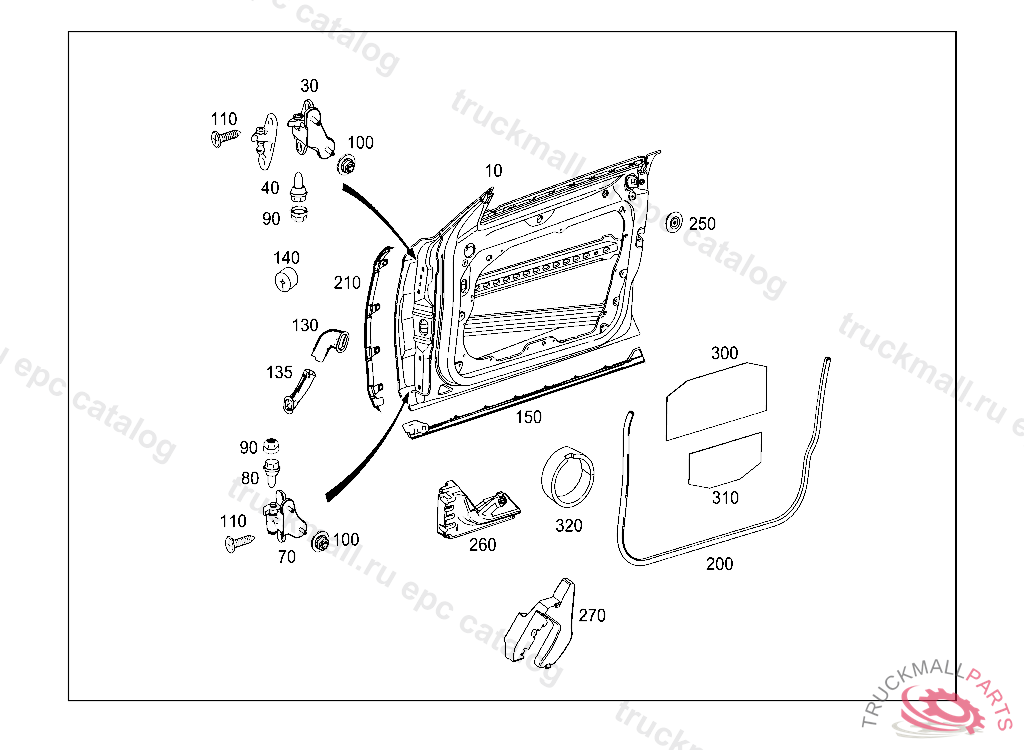

Поз.
Артикул
Описание
10
DRIVER'S DOOR RIGHT
10
DRIVER'S DOOR LEFT
30
HINGE LEFT TOP
30
HINGE RIGHT TOP
40
BOLT W FLANGE HINGE TO A-PILLAR LEFT
70
HINGE LEFT BOTTOM
70
HINGE RIGHT BOTTOM
80
BOLT W FLANGE HINGE TO A-PILLAR LEFT
90
CAP TO RIGHT DOOR HINGE SCREW
100
MULTIPLE NUT FOR HINGE TO B-PILLAR AT LEFT M8
110
HEXAGON HEAD BOLT FOR HINGE TO DOOR M8X32,5
130
GUIDE RAIL DOOR AT RIGHT, TOP
130
GUIDE RAIL LEFT DOOR,TOP
135
GUIDE RAIL LEFT DOOR,BOTTOM
135
GUIDE RAIL RIGHT DOOR, BOTTOM
140
INTERMEDIATE LAYER CABLE RETAINER IN RIGHT DOOR
150
DEFLECTOR STRIP RIGHT DOOR, BOTTOM
150
DEFLECTOR STRIP LEFT DOOR,BOTTOM
200
CIRCUMFERENTIAL DOOR SEAL LEFT DOOR SEAL, TO BE ADAPTED DURING ASSEMBLY
210
SEALING FRAME LEFT DOOR
210
SEALING FRAME RIGHT DOOR
250
PLUG TO BODY 10 MM, J 78221020091022
250
STOP PLUG CROSS MEMBER 20 MM
260
REINFORCEMENT LEFT
260
REINFORCEMENT RIGHT
270
REINFORCEMENT LEFT
270
REINFORCEMENT RIGHT
300
INSULATION DRIVER DOOR RIGHT FRONT DOOR,TOP
310
INSULATION DRIVER DOOR RIGHT FRONT DOOR, BOTTOM
320
ABSORBING DOOR RIGHT
