Поз.
Артикул
Описание
1

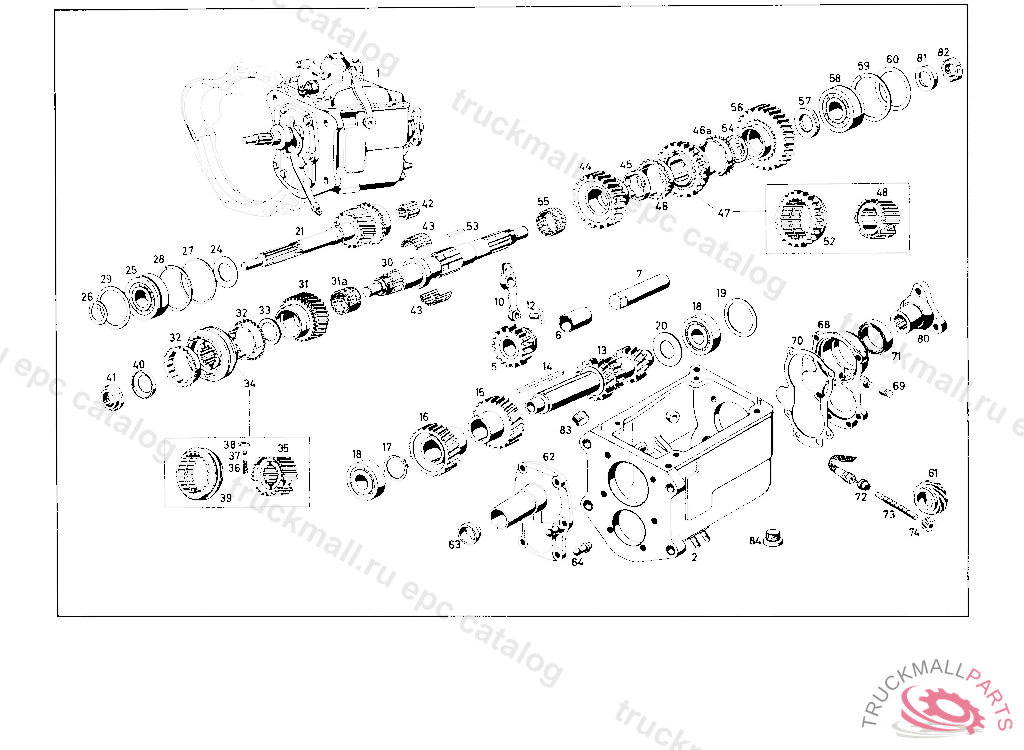

TRANSMISSION WITHOUT CLUTCH HOUSING, BUT WITH RELEASE PARTS
2
TRANSMISSION CASE. TRANSMISSION HOUSING
5
GEAR
6
BUSHING
7
REVERSE IDLER SHAFT
10
LEVER
12
SCHALTKLAUE. COLLAR
13
COUNTERSHAFT , 024406
14
KEY
15
COUNTERSHAFT GEAR,. COUNTERSHAFT GEAR 27 TEETH FOR 3RD GEAR
16
GEAR 32 TEETH, 3RD SPEED, 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12
19
SPACER WASHER , Replaced By: A6022630352
20
WASHER
21
DRIVE SHAFT. REPLACED BY 120 260 12 20 TOGETHER WITH 1 SLIDING SLEEVE 111 262 04 23, UP TO TRANSMISSION 040847 FOR TYPE 180 B
24
OIL RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
26
SNAP RING , Replaced By: A1232620494
27
SPACER RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
28
SNAP RING 2.05 MM
29
SPACER WASHER AS REQUIRED 0.1 MM
30
MAIN SHAFT FROM TRANSMISSION NO. 75 02182
31
WORM GEAR. HELICAL GEAR FOR 3RD GEAR
32
SYNCHRONIZING RING FOR THIRD SPEED AND FOURTH SPEED
33
THRUST WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
34
SYNCHRONIZER BODY FOR THIRD SPEED AND FOURTH SPEED FROM TRANSMISSION NO. 02750/53
35
SYNCHRONIZER BODY. SYNCHRONIZER
36
SPRING
38
FOLLOWER
39
SLIDING SLEEVE FOR 3RD AND 4TH GEAR
40
LOCK
41
GROOVED NUT
42
ROLLER ASSEMBLY
43
ROLLER ASSEMBLY
44
WORM GEAR. REPLACED BY 110 262 00 12 TOGETHER WITH 1 SYNCHRONIZER BODY 111 260 07 45, UP TO TRANSMISSION 047840 FOR TYPE 180 B
45
THRUST WASHER 7.90 MM
46
SYNCHRONIZING RING FOR THIRD SPEED AND FOURTH SPEED
47
SYNCHRONIZER BODY. , Replaced By: A1112600745
48
SYNCHRONIZER BODY. REPLACED BY 111 262 03 35 TOGETHER WITH 1 SLIDING SLEEVE 111 262 03 23, UP TO TRANSMISSION 047840 FOR TYPE 180 B
52
SLIDING SLEEVE. REPLACED BY 111 262 03 23 TOGETHER WITH 1 SYNCHRONIZER BODY 111 262 03 35, UP TO TRANSMISSION 184635 FOR TYPE 180 DB
53
KEY
54
THRUST WASHER 4.40 MM
55
ROLLER ASSEMBLY , Replaced By: A0019816910
56
WORM GEAR. REPLACED BY 110 262 01 11 TOGETHER WITH 1 SYNCHRONIZER BODY 111 260 07 45, UP TO TRANSMISSION 047840 FOR TYPE 180 B
57
THRUST WASHER 3.80 MM
58
BALL BEARING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359, Replaced By: A0029810625
60
SPACER WASHER 0.10 MM
61
DRIVE GEAR , Replaced By: A1101640030
62
TRANSMISSION HOUSING. TRANSMISSION CASE COVER, FRONT
63
SEAL RING
64
BALL PIN FOR RELEASE FORK, CLUTCH
68
TRANSMISSION CASE. GEAR CASE COVER, REAR
69
PLUG
70
GASKET FOR TRANSMISSION HOUSING COVER, REAR
71
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
72
GASKET , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
73
SHAFT FOR TACHOMETER DRIVE
74
DRIVE GEAR SEE FIG. NO.: 115
80
THREE-ARM FLANGE. THREE-WAY FLANGE, 90-MM HOLE CIRCLE ON MAIN SHAFT, Replaced By: A1112620045
81
LOCK
82
GROOVED NUT
83
SCREW PLUG , Replaced By: A0009972632
84
SCREW PLUG , Replaced By: A1159970032
999
ROLLER ASSEMBLY
999
ROLLER ASSEMBLY
999
TRANSMISSION WITHOUT CLUTCH HOUSING, BUT WITH RELEASE PARTS
999
THRUST WASHER , Replaced By: A1202621362
999
THRUST WASHER 4.50 MM
999
THRUST WASHER , Replaced By: A1202621562
999
THRUST WASHER , NOT USED
999
THRUST WASHER , Replaced By: A1202621862
999
THRUST WASHER AS REQUIRED
999
THRUST WASHER , Replaced By: A1202622062
999
THRUST WASHER AS REQUIRED
999
SPACER WASHER INTERMEDIATE BEARING
999
SPACER WASHER , Replaced By: A6022630252
999
SPACER WASHER , Replaced By: A6022630452
999
SPACER WASHER 0.20 MM
999
SPACER WASHER 0.2 MM
999
SPACER WASHER 0.3 MM
999
SPACER WASHER 0.30 MM
999
SNAP RING AS REQUIRED 1.9 MM
999
SNAP RING , Replaced By: A1369940935
999
TRANSMISSION HOUSING COVER, FRONT
999
THRUST WASHER 3.90 MM
999
THRUST WASHER 4.00 MM
999
THRUST WASHER 4.10 MM
999
THRUST WASHER AS REQUIRED 4.20 MM
999
THRUST WASHER AS REQUIRED 4.30 MM
999
THRUST WASHER 4.40 MM
999
THRUST WASHER 4.50 MM
999
SYNCHRONIZING RING FOR FIRST GEAR
