Mercedes A0005010171 - Болт

280 E 123.007

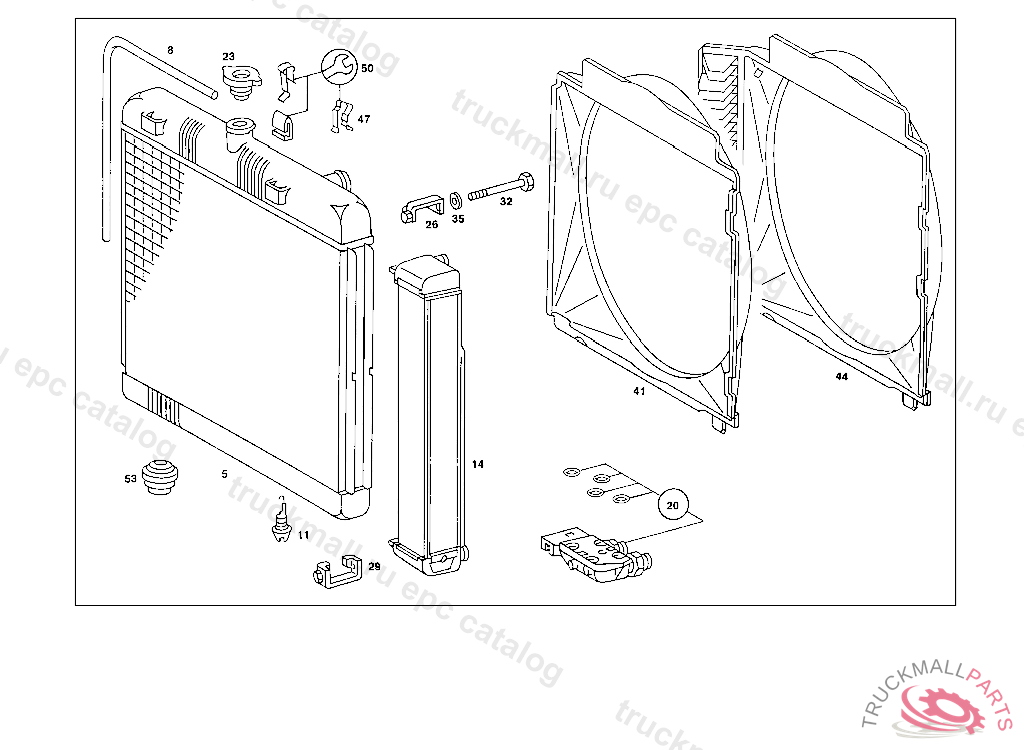

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING

Поз.
Артикул
Описание
5
A1235013301
RADIATOR NOT FOR USE WITH AIR CONDITIONER, NOT FOR AUSTRALIA,SWEDEN
8
A0219977682
HOSE
8
A0079972682
HOSE , Replaced By: A0219977682
11
A0005010171
SCREW WATER DRAIN
23
A1235010215
RADIATOR CAP
29
A0005010620
BRACKET BOTTOM
32
N000931006191
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
35
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
44
A1235051755
FAN SHROUD ONLY FOR USE WITH AIR CONDITIONER
47
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
50
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
53
A1235040412
RUBBER MOUNTING RADIATOR TO SUPPORT
