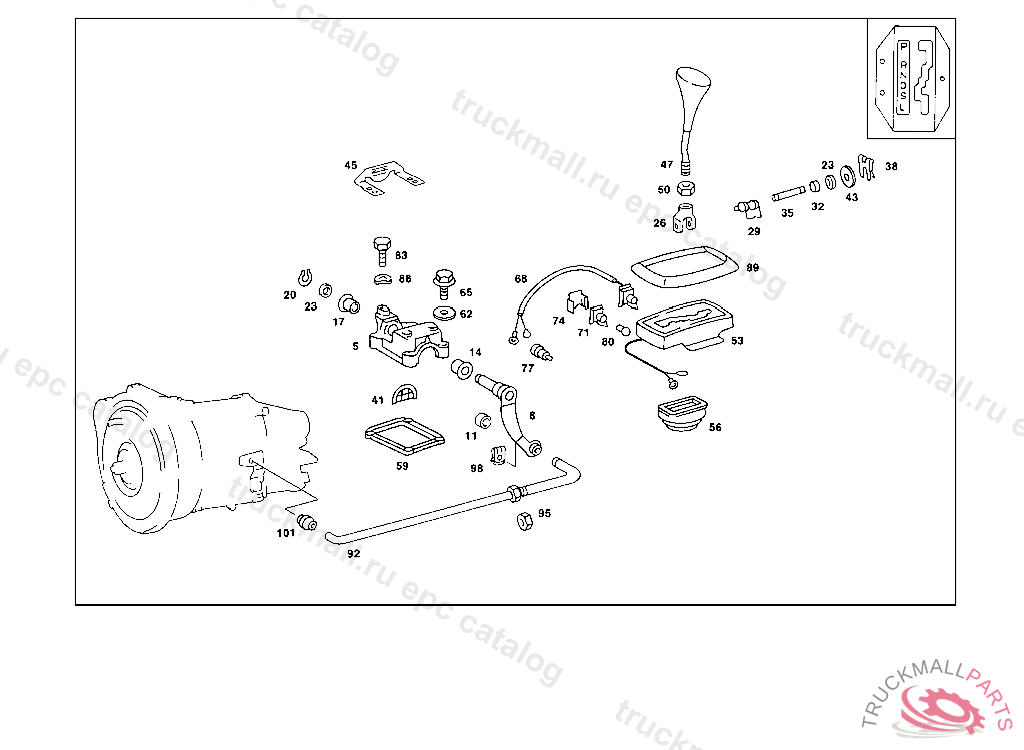

Поз.
Артикул
Описание
5
BEARING
5
BEARING
8
SHAFT
8
SHAFT
11
BUSHING GEAR SELECTOR LEVER
14
BUSHING SHIFT LEVER TO BRACKET, DISCONTINUED,PART IS NO LONGER REQUIRED
17
BUSHING SHIFT LEVER TO BRACKET, DISCONTINUED,PART IS NO LONGER REQUIRED
20
LOCK RING , Replaced By: A0079942041
20
LOCK STOP TO BEARING BRACKET
23
SPACER WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732670052
26
YOKE
29
SPRING BRACKET TO SHIFT LEVER,K 032407
32
BUSHING BRACKET TO SHIFT LEVER,K 032407
35
PIN BRACKET TO SHIFT LEVER,K 032407
38
LOCK BRACKET TO SHIFT LEVER,K 032407
41
WASHER
43
WASHER , Replaced By: N009021006208
43
WASHER COMPRESSED AIR LINE TO BRACKET
47
HANDLE
50
NUT
53
SHIFT CASE , 108.016 079492 108.018,019 085596 108.057,058 002416 109.056 007193 111.026,027 004404 108.067,068 000001 109.057 000001
56
BOOT , 108.016 066058 108.018,019 071884 ALSO INSTALLED ON 071802,071873 108.057,058,067,068 000001 109.057 000001 109.056 003759 111.024,025 005066 111.026,027 002942
59
GASKET
62
WASHER , Replaced By: N009021006208
62
WASHER COMPRESSED AIR LINE TO BRACKET
65
SCREW BEARING BRACKET TO TUNNEL
68
CABLE HARNESS SLOTTED GATE LIGHTING
71
LAMP SOCKET SLOTTED GATE LIGHTING
74
COVER SLOTTED GATE LIGHTING
77
PLUG , Replaced By: A1265401081
77
PLUG SOCKET UNIPOLAR
80
BULB , ON CAB 344
83
SCREW , Replaced By: N304017006018
83
SCREW COVER PLATE TO COVER PLATE M 6 X 12
86
SPRING WASHER LICENSE PLATE TO BRACKET
89
BOOT
92
SHIFTING ROD
92
SHIFTING ROD
95
NUT
98
LOCK
101
BUSHING GEAR SELECTOR LEVER
