Mercedes N000125006421 - КРЕПЕЖ

280 E 123.007

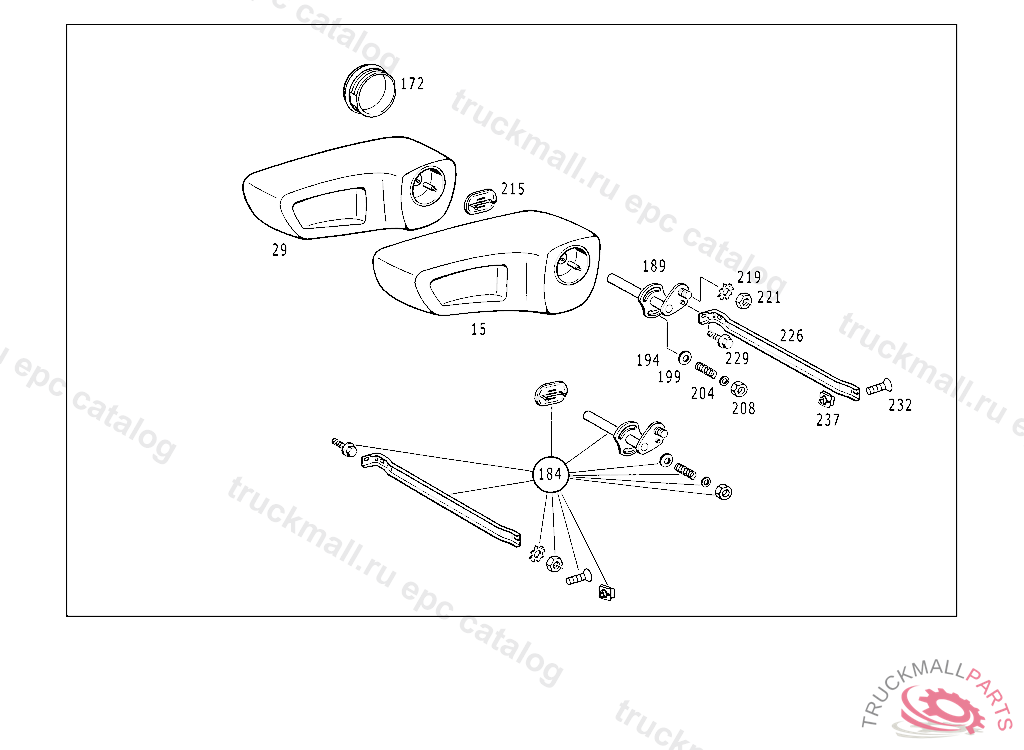

26 TRANSMISSION - 015 FLOOR SHIFT USED WITH MANUAL FOUR-SPEED TRANSMISSION IL. 1

Поз.
Артикул
Описание
15
A1239700530
FOLDING ARMREST FRONT SEAT, IMITATION LEATHER, 123 297291 ALSO INSTALLED ON 306113-347407 133 002318 ALSO INSTALLED ON 004116-012658 NO.9045 INO.5070 INO.8320 INO.8330 INO.6080 INO.3070 I I
29
A1239700220
SUPPORT WITH MOLDED PART
172
A1169870441
RUBBER RING
184
A1239700000
MOUNTING MATERIAL
189
A1239700020
SUPPORT
194
A1239870141
RUBBER RING RESERVOIR TO MOUNTING PLATE
199
A1239730134
SPRING
204
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
208
N000934006007
NUT BALL PIVOT TO LEVER
215
A1239730511
PLATE
219
N006797019101
TOOTHED WASHER SENDER UNIT TO BRACKET
221
N000439018200
NUT USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
226
A1239730027
RAIL
229
N914114006000
SCREW HORN TO COOLING WATER EXPANSION TANK BRACKET
232
N000965006001
SCREW
237
A0009908891
NUT RETAINER USED WITH IMITATION LEATHER TRIM, 123 297291 ALSO INSTALLED ON 306113-347407 133 002318 ALSO INSTALLED ON 004116-012658
