Поз.
Артикул
Описание

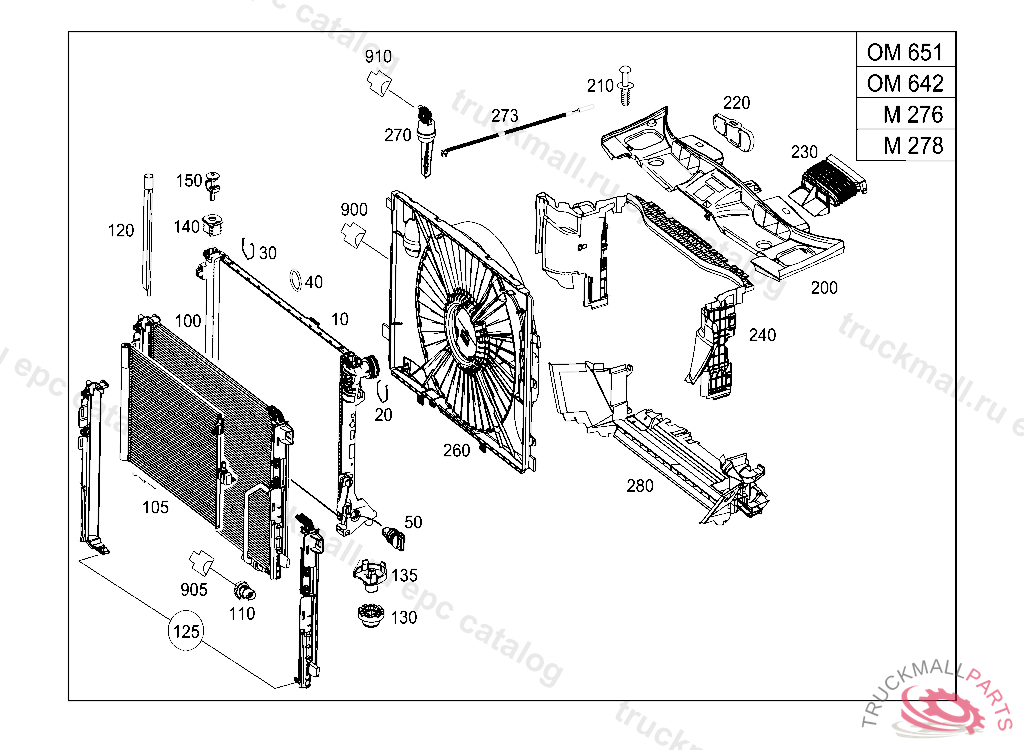

10
WATER COOLER
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
30
DETENT SPRING OIL LINE
40
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
50
DRAIN PLUG DRAIN PLUG
100
CAPACITOR
110
PRESSURE SENSOR
120
REFRIGERANT DRIER F AC
125
BRACKET LEFT AND RIGHT CONDENSER
130
ELASTOMER BEARING RADIATOR BOTTOM
135
RADIATOR BEARING REPAIR SOLUTION, COOLER, BOTTOM LEFT AND RIGHT
140
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
CLIP RADIATOR TOP
200
COLD AIR INDUCTION TOP
210
EXPANSION RIVET MOUNTING, COVER
230
AIR DUCT ON FAN SHROUD
240
AIR DUCT TOP, A 11386820131109
240
AIR DUCT SEGMENT TOP, A 11386920131109
260
BLOWER600W, Replaced By: A2049066802
260
BLOWER
270
VACUUM BOX
273
HOSE ASSEMBLY FROM VACUUM BOX TO INTAKE MANIFOLD
280
AIR DUCT BOTTOM, A 11386820131109
280
AIR DUCT SEGMENT BOTTOM, A 11386920131109
900
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
905
CLUTCH. PIN BUSHING HOUSING SIREN
910
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
