Mercedes N000933006124 - Болт

300 CD TURBODIESEL USA 123.153

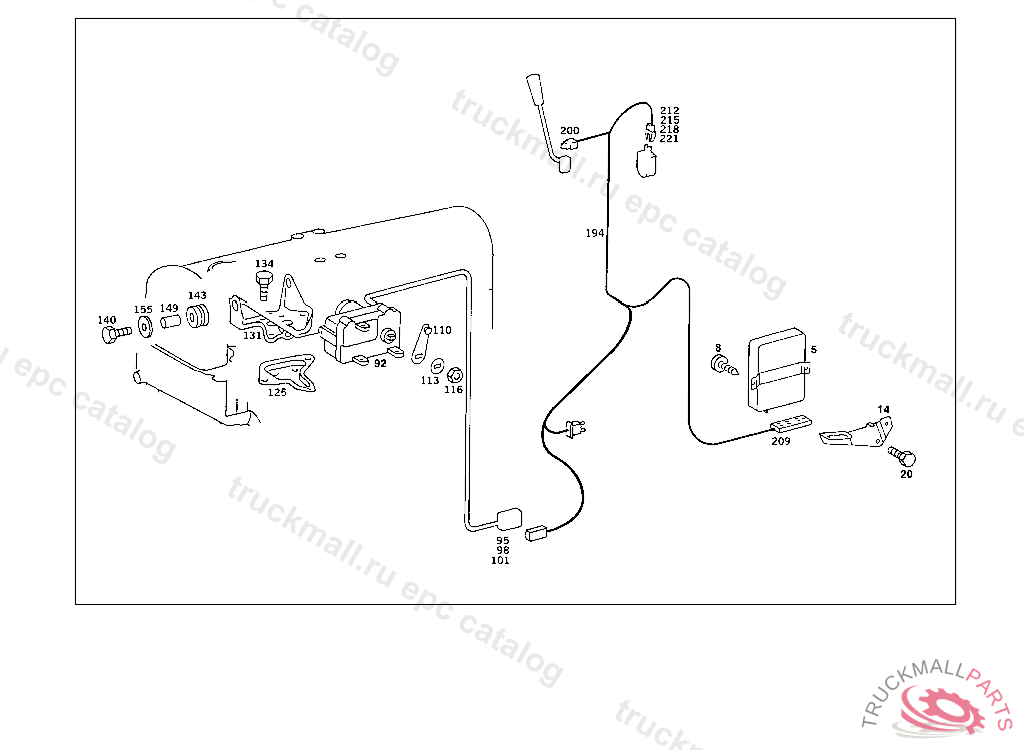

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 750 TEMPOMAT (CRUISE CONTROL) IL. 1

Поз.
Артикул
Описание
5
A0025459132
CONTROL UNITTEMPOMAT
8
N007981004348
SHEET METAL SCREW CONTROL UNIT TO BRACKET
14
A1235400173
BRACKET
20
N000933006127
SCREW CAB FLOOR COVERING M 6X25
92
A0025458632
CONTROL UNIT ACTUATOR
95
A0095455328
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
98
A0095453628
COVERTO 006 545 81 28
101
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
110
A1265400484
LEVER
113
A0009941310
LOCK
116
N000439008213
NUT
125
A1235401573
BRACKET ACTUATOR
131
A1235453440
BRACKET ACTUATOR
134
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
134
N000933006103
SCREW , Replaced By: N304017006018
140
N000933006124
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
140
N304017006012
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
143
A1029970081
GROMMET ACTUATOR TO BRACKET
143
A1109972281
GROMMET , Replaced By: A1029970081
149
A1239910040
SPACER TUBE ACTUATOR TO BRACKET
155
A1235450376
WASHER
155
A1239903140
WASHER ACTUATOR TO BRACKET
