Mercedes A0005010171 - Болт

300 CD TURBODIESEL USA 123.153

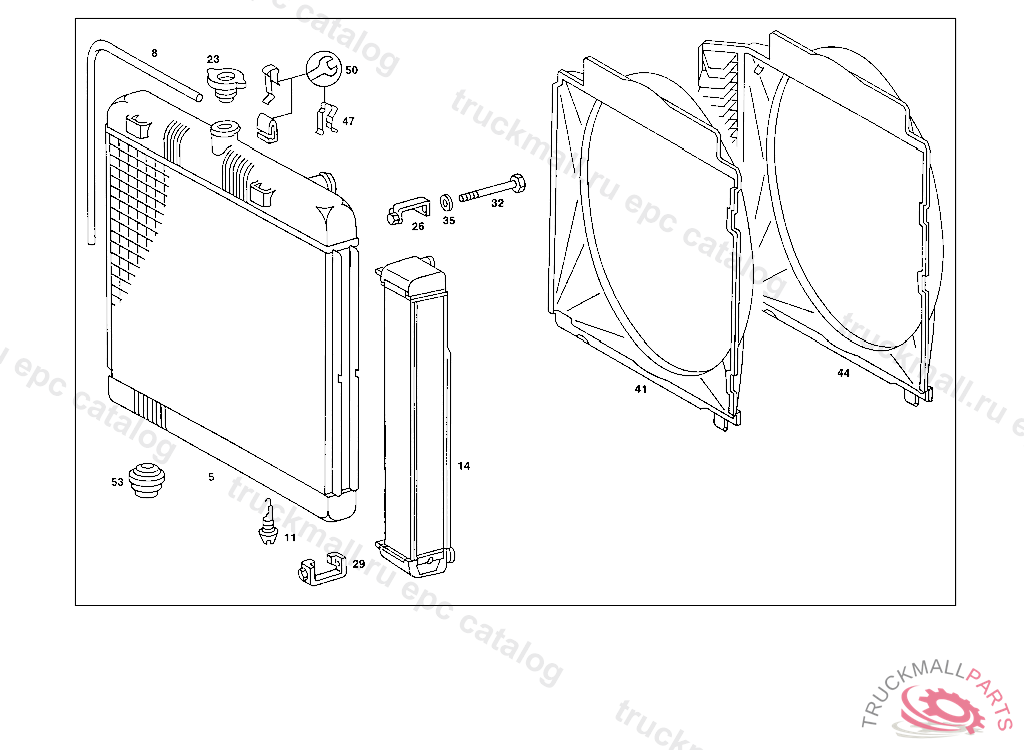

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING

Поз.
Артикул
Описание
5
A1265003503
RADIATOR
11
A0005010171
SCREW WATER DRAIN
14
A1261800065
OIL COOLER
23
A1235010215
RADIATOR CAP
26
A0005010520
BRACKET TOP
29
A0005010620
BRACKET BOTTOM
32
N000931006191
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
35
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
41
A1265050655
FAN SHROUD
47
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
50
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
53
A1235040412
RUBBER MOUNTING RADIATOR TO SUPPORT
