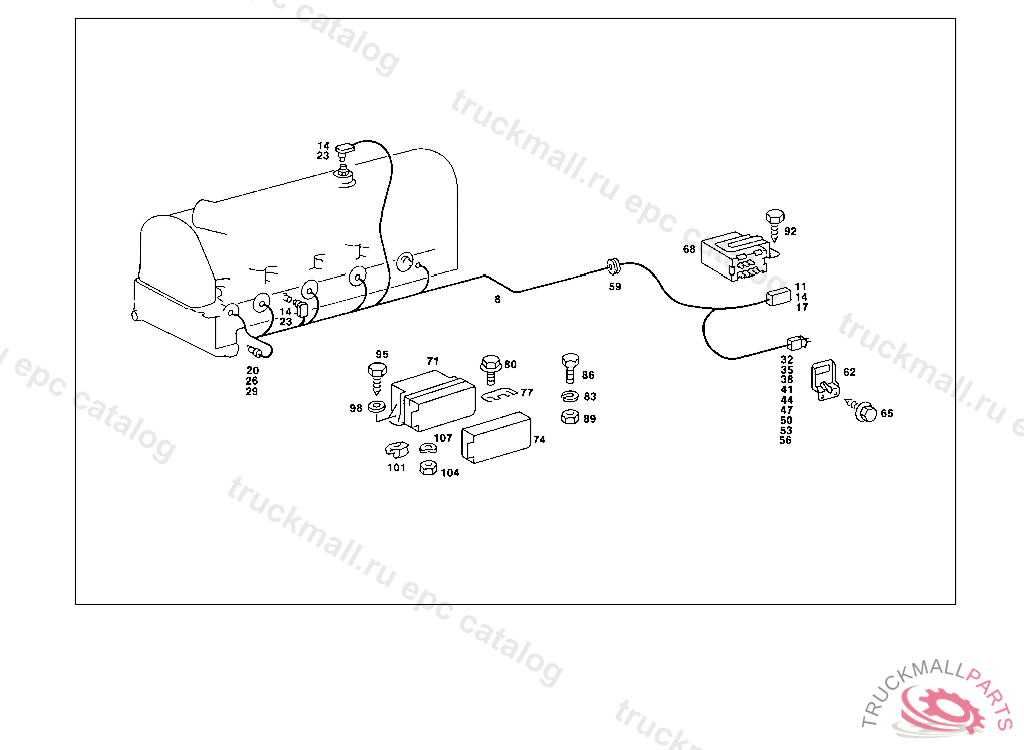

Поз.
Артикул
Описание
8
CABLE HARNESS ENGINE CABLE HARNESS, FROM MODEL YEAR'85
8
CABLE HARNESS PRE-GLOW SYSTEM, UP TO END OF MODEL YEAR'84
11
PIN BUSHING HOUSING PRE-GLOW TIME RELAY, 5-POLE
14
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
20
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
23
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
26
COVERTO 011 545 10 28
29
ROUND PIN BUSHING4 MM2
41
PLUG HOUSING BIPOLAR
44
COVERTO 008 545 08 28,008 545 09 28
47
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
50
PLUG HOUSING DOUBLE
53
COVERTO 007 545 00 28
56
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
59
GROMMET PLUG SOCKET
62
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION, FROM MODEL YEAR'85
65
SHEET METAL SCREW
71
PRE-GLOW TIME RELAY ,F 102454
71
PRE-GLOW TIME RELAY ,F 102454
74
BOOTTO 002 545 05 32,002 545 06 32
74
BOOTTO 001 545 97 32,001 545 98 32
77
FUSE
80
COMBINATION BOLT BRACKET TO STEERING COLUMN END
95
SHEET METAL SCREW PRE-GLOW TIME RELAY TO COWL
98
WASHER COMPRESSED AIR LINE TO BRACKET
98
WASHER , Replaced By: N009021006208
101
CLIP PRE-GLOW TIME RELAY TO COWL
104
NUT BALL PIVOT TO LEVER
107
SPRING WASHER LICENSE PLATE TO BRACKET
