Mercedes A1409901122 - Болт

300 CD TURBODIESEL USA 123.153

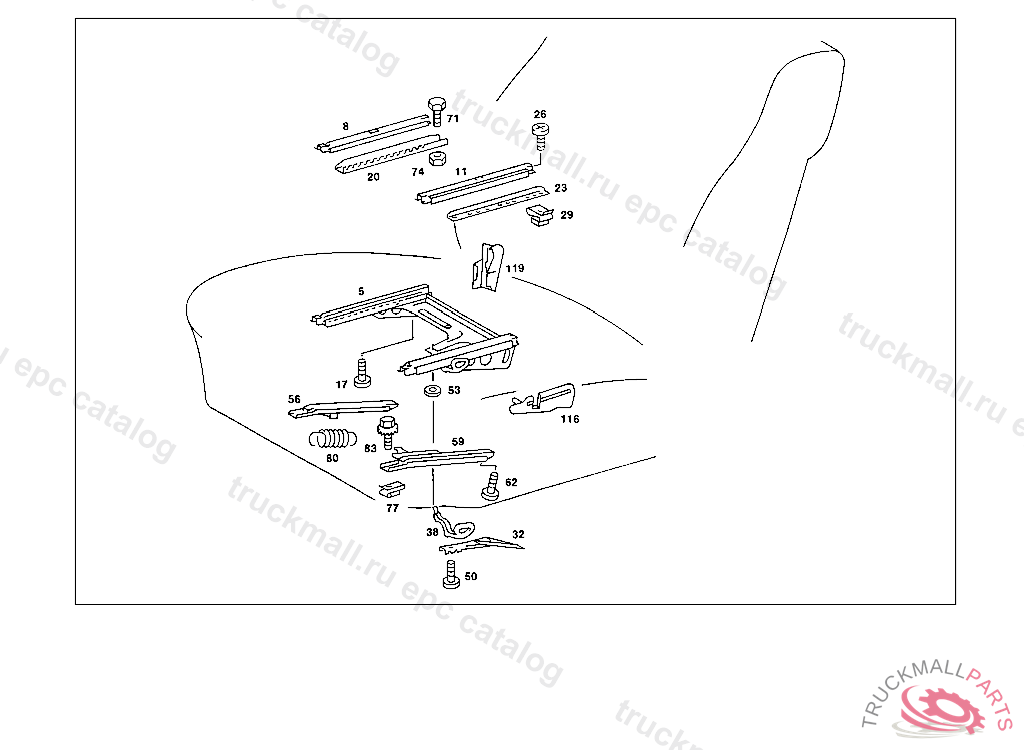

91 FRONT SEATS - 135 SEAT ADJUSTMENT W/HEIGHT ADJUSTMENT, UP TO MODEL YEAR 9/79 IL. 1

Поз.
Артикул
Описание
20
A1239190616
REINFORCEMENT INSIDE RIGHT
20
A1239190516
REINFORCEMENT LEFT SEAT INSIDE RIGHT
23
A1089190916
REINFORCEMENT OUTSIDE LEFT
23
A1089191016
REINFORCEMENT OUTSIDE RIGHT
26
A1239900822
SCREW
29
A0009908891
NUT RETAINER USED WITH IMITATION LEATHER TRIM, 123 297291 ALSO INSTALLED ON 306113-347407 133 002318 ALSO INSTALLED ON 004116-012658
71
N304017008021
SCREW PIPE CLAMP
71
N000933008147
SCREW , Replaced By: N304017008021
74
N000934008010
NUT , Replaced By: N304032008006
74
N304032008006
NUT
77
A0019902891
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
77
A0019944745
LOCK , Replaced By: A0019902891
83
A1249900222
SCREW , Replaced By: A1409901122
83
A1409901122
SCREW
