Поз.
Артикул
Описание

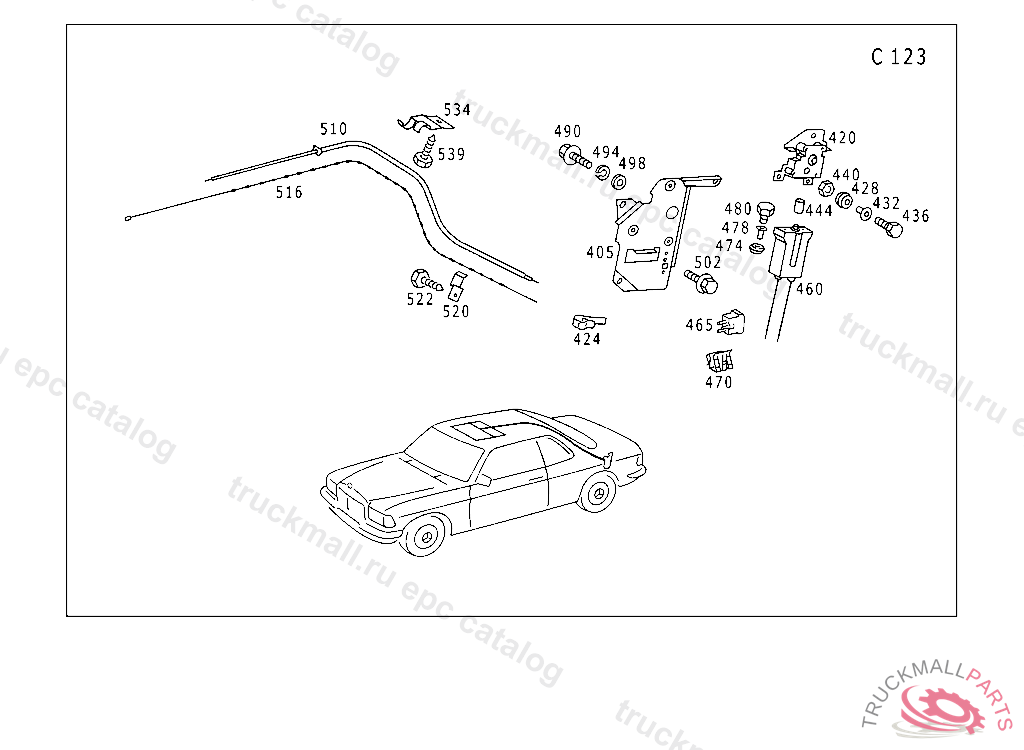

405
BRACKET , UP TO CHASSIS123.053 026853 153 002102 243 016627 123.043,050,150 UNTIL PRODUCTION STOP FROM CHASSIS SEE SA 56 414
420
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
424
CLIP
428
GROMMET GEARING TO BRACKET
432
BUSHING MOTOR TO BRACKET
436
SCREW PUMP TO BRACKET
436
SCREW COVER PLATE TO BRACKET
440
NUT BALL PIVOT TO LEVER
444
CONNECTOR
460
ELECTRIC MOTOR
465
PLUG HOUSING
470
CLIP
474
GROMMET GEARING TO BRACKET
478
BUSHING MOTOR TO BRACKET
480
SCREW PUMP TO BRACKET
480
SCREW COVER PLATE TO BRACKET
490
SCREW COVER PLATE TO COVER PLATE M 6 X 12
494
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
498
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
502
HEXAGON HEAD BOLT
510
TUBE SLIDING ROOF, 053 026854 153 002103 243 016628
510
TUBE FROM MOTOR TO SLIDING ROOF PLATE, UP TO CHASSIS123.053 026853 153 002102 243 016627 123.043,050,150 UNTIL PRODUCTION STOP
516
CABLE , UP TO CHASSIS123.053 026853 153 002102 243 016627 123.043,050,150 UNTIL PRODUCTION STOP
516
CABLE , FROM CHASSIS 123.053 026854 153 002103 243 016628
520
CLAMP TUBE TO REAR PILLAR
522
SHEET METAL SCREW BRACKET TO CAB FLOOR
534
BRACKET
539
SHEET METAL SCREW BRACKET TO CAB FLOOR
