Поз.
Артикул
Описание
5

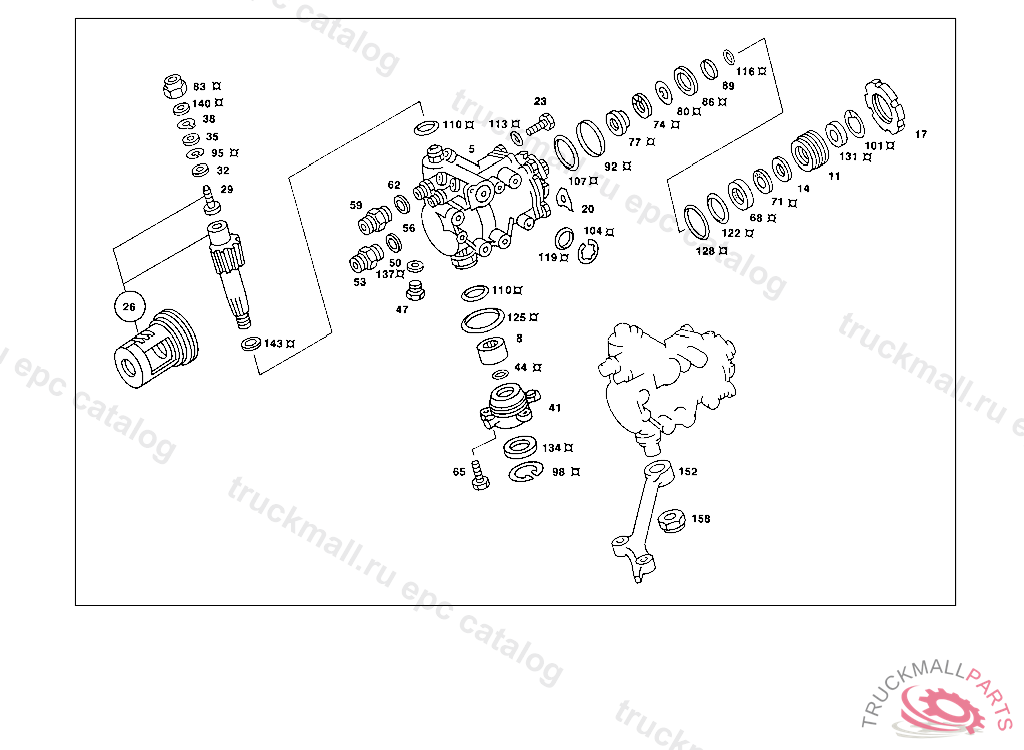

STEERING BOX ASSEMBLY , 000 10/50,12/52 056283 20/60,22/62 057848 003 10/50,12/52 026979 20/60,22/62 027742 102,103 10/50,12/52 029862 20/60,22/62 041002 105 10/50,12/52 051237 20/60,22/62 052678 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
8
NEEDLE BEARING
11
THREADED INSERT
14
WASHER
17
NUT
20
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
23
SCREW BRACKET TO CROSS MEMBER
26
STEERG. WORM SECTOR SHAFT PARTS KIT
29
SCREW
32
THRUST WASHER2.70 MM
32
THRUST WASHER3.10 MM
32
THRUST WASHER2.75 MM
32
THRUST WASHER3.00 MM
32
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
32
THRUST WASHER2.80 MM, Replaced By: A1074620262
32
THRUST WASHER3.05 MM
32
THRUST WASHER2.65 MM
32
THRUST WASHER2.95 MM
32
THRUST WASHER2.85M
35
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
38
LOCK RINGTO 000 553 37 01,000 553 39 01,
41
STEERING BOX COVER
41
STEERING BOX COVER
44
SEAL RING VALVE
47
SCREW PLUG
50
SEAL RING SCREW PLUG
53
SCREW FITTING
56
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
59
SCREW FITTING
62
SEAL RING LINE CONNECTION
65
SCREW
68
NEEDLE BEARING
71
ROLLER BEARING
74
ROLLER BEARING
77
ANGULAR CONTACT BEARING
80
WASHER
83
NUT , Replaced By: A0009904050
83
NUT
86
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
89
SEAL RING
92
SEAL RING
95
LOCK
98
LOCK TOP TO 387 460 14 09
101
LOCK
104
LOCK
107
SEAL RINGTO 388 476 71 69
107
SEAL RING , Replaced By: A0149976148
110
SEAL RING
110
SEAL RING
113
SEAL RING VALVE
116
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
119
SEAL RING
122
SEAL RING , 000 10/50,12/52 056283 20/60,22/62 057848 003 10/50,12/52 026979 20/60,22/62 027742 102,103 10/50,12/52 029862 20/60,22/62 041002 105 10/50,12/52 051237 20/60,22/62 052678
125
SEAL RING
128
SEAL RING
131
SEAL RING
131
SEAL RING , Replaced By: A0119976746
131
SEAL RING , Replaced By: A0199975147
134
SEAL RING
134
SEAL RING , Replaced By: A0199975047
134
SEAL RING , Replaced By: A0119976846
137
SEAL RING SCREW PLUG
140
SEAL RING LINE CONNECTION
143
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
152
PITMAN ARM
152
PITMAN ARM
158
NUT DRAG LINK END M 24X1.5
