Поз.
Артикул
Описание
8

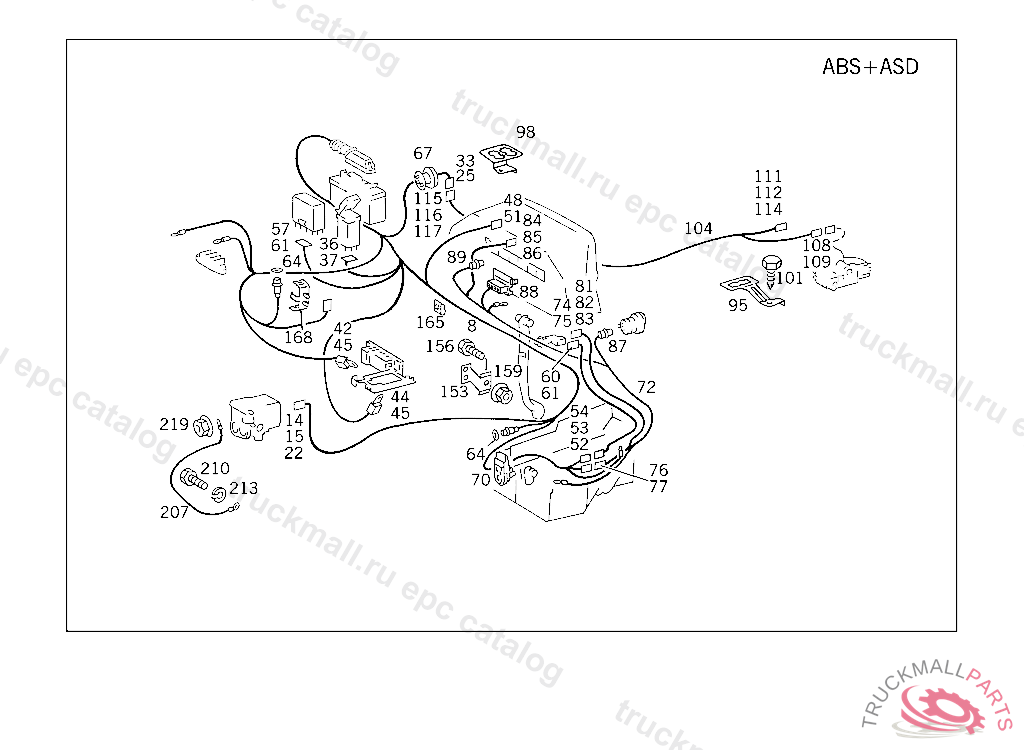

CABLE HARNESS ANTI-LOCK BRAKING SYSTEM (ABS) AND AUTOMATIC LOCKING DIFFERENTIAL (ASD),F 228494
8
CABLE HARNESS ANTI-LOCK BRAKING SYSTEM (ABS) AND AUTOMATIC LOCKING DIFFERENTIAL (ASD)
14
PIN BUSHING HOUSING 12-POLE
15
COVERTO 009 545 26 28
22
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
25
PIN BUSHING HOUSING BIPOLAR
33
ROUND PIN BUSHING4 MM2
36
PIN BUSHING HOUSING OVERLOAD PROTECTOR,F 017704
37
ROUND PIN BUSHING4.0 MM
42
PIN BUSHING HOUSING DIAGNOSIS BOX
44
PLUG TEST PLUG ASD
45
ROUND PIN BUSHING LIGHT SWITCH
48
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
51
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
52
PLUG ADAPTERTO 014 545 04 28
53
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
54
PIN BUSHINGTO 000 821 19 26
57
PIN BUSHING HOUSING CONTROL UNIT ASD
60
PIN BUSHING HOUSING STOP LIGHT SWITCH
61
ROUND PIN BUSHING2.5 MM2
64
SEAL RING COAXIAL PLUG
67
GROMMET ELECTRIC CABLE THRU FIRE WALL
70
GROMMET , ONLY WITH AIR CONDITIONING AUTOMATICS
72
CABLE HARNESS TELL-TALE LAMP ABS-ASD
74
PIN BUSHING HOUSING STOP LIGHT SWITCH
75
ROUND PIN BUSHING2.5 MM2
81
PLUG ADAPTERTO 014 545 04 28
82
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
83
PIN BUSHINGTO 000 821 19 26
84
PLUG HOUSING
85
COVER
86
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
87
ROUND PIN BUSHING LIGHT SWITCH
88
CASE 4-POLE
89
SOCKET
98
BRACKET PLUG CONNECTION ASD
104
CABLE HARNESS ANTI-LOCK BRAKING SYSTEM (ABS) AND AUTOMATIC LOCKING DIFFERENTIAL (ASD)
108
PIN BUSHING HOUSING TELL-TALE LAMP ASD
109
ROUND PIN BUSHING2.5 MM2
111
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
112
COVERTO 008 545 08 28
114
ROUND PIN BUSHING4 MM2
115
PLUG HOUSING DOUBLE
115
PLUG HOUSING BIPOLAR
116
COVERTO 008 545 08 28
116
COVERTO 007 545 00 28
117
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
117
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
153
BRACKET ELECTRIC CABLE TO PARTITION PANEL
156
SCREW BRACKET ON LOAD SENSOR
159
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
165
CLIP
168
BRACKET ABS PLUG-CONNECTION
207
NEG. CABLE
210
SCREW COVER PLATE TO COVER PLATE M 6 X 12
213
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
219
NUT HOOK TO BRACKET
