Mercedes A1248208242 - ЭЛЕКТРОМОТОР

300 CE USA 124.066 FROM 09/89
72 FRONT DOORS - 175 CO-DRIVER'S OUTSIDE REARVIEW MIRROR

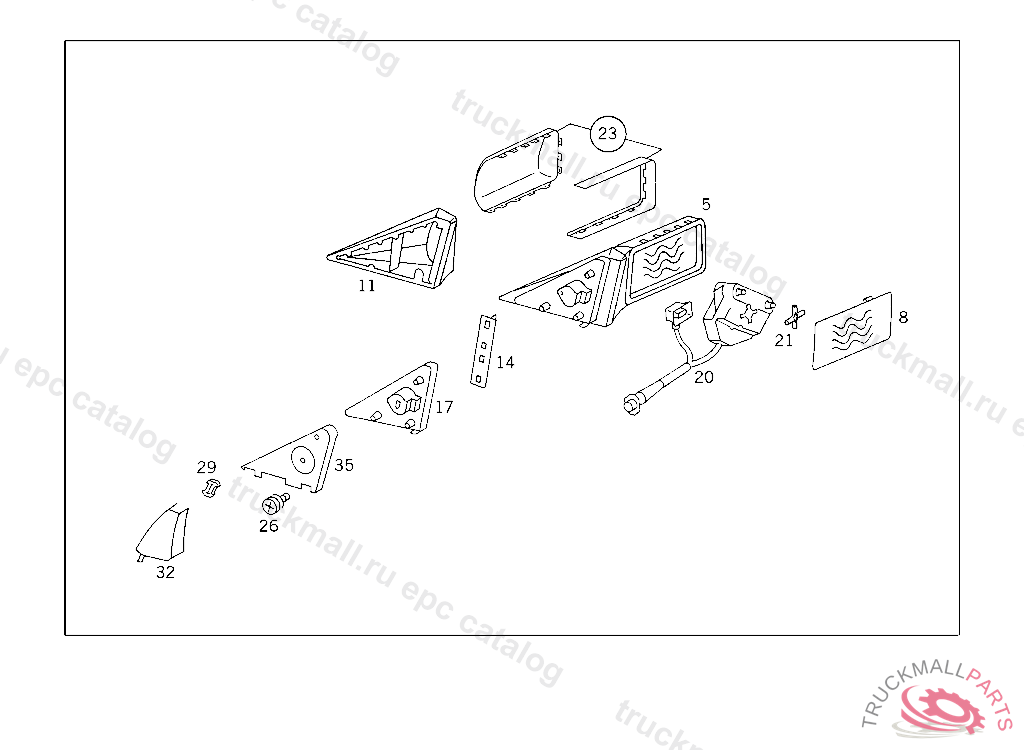

  • Поз.
    Артикул
    Описание
  • 5
    OUTSIDE REARVIEW MIRROR LESS SHELL, MIRROR GLASS CONVEX & HEATED,ELECTRICALLY ADJUSTABLE,RIGHT
  • 8
    MIRROR GLASS CONVEX, HEATED, ELECTRICALLY ADJUSTABLE,RIGHT
  • 11
    CAP RIGHT
  • 14
    BRACKET
  • 17
    SEAL OUTSIDE REARVIEW MIRROR TO RIGHT WINDOW FRAME
  • 20
    ELECTRIC MOTOR RIGHT OUTSIDE REARVIEW MIRROR, WITH REARVIEW MIRROR HEATING
  • 21
    FOLLOWER
  • 23
    HOUSING PARTS KIT,RIGHT
  • 26
    SCREW
  • 29
    FASTENER BUTTON FRONT DOOR INTERIOR COVER PLATE
  • 32
    PLATE RIGHT INSIDE,LESS HOLE, C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859NO.9A77I NO.5A92I NO.8E60I NO.8F19I NO.8F33I NO.6B46I NO.3B25I NO.7C03I I
  • 35
    SEAL INTERIOR COVER PLATE, TO BE ADAPTED DURING ASSEMBLY
