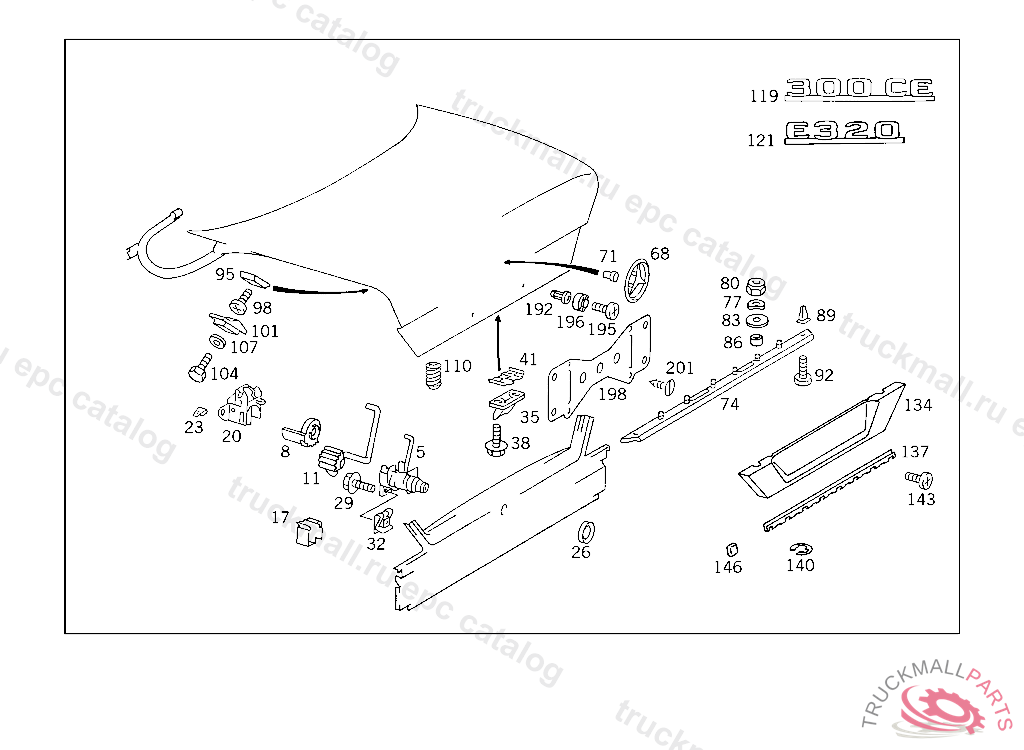

Поз.
Артикул
Описание
5
TUMBLER WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM)
5
TUMBLER WITH REAR LID ADDIT.LOCKING MECHANISM + CODE 551 (EDW), COMFORT LOCKING MECHANISM ONLY USED WITH SPECIAL VERSION SLIDING/LIFTING ROOF, OR ELECTRIC WINDOW REGULATOR STATE LOCK NUMBER WHEN ORDERING
8
PUSH BUTTON BASETO 124 750 09 91 / 124 750 11 91
11
RODTO 124 750 09 91
17
CLIP BELT LOCK TO SEAT RAIL
20
FASTENER
23
GUIDE RIGHT
23
GUIDE LEFT
26
SEAL BETWEEN LOCK AND REAR LID
29
SCREW LEVER TO ENGINE CONTROL SHAFT
29
SCREW , Replaced By: N910105006023
32
NUT RETAINER LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART
35
BRACKET
38
SCREW LOCKING CLAMP TO PLATE
41
PLATE REAR LID STIFFENING
68
MERCEDES STAR
71
GROMMET MERCEDES STAR TO REAR LID
74
HANDLE REAR LID
80
NUT TWO-WAY VALVE TO BRACKET
83
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
86
RUBBER RING SIGNAL LAMP TO ROOF
89
TREENAIL , Replaced By: A6399980185
89
TREENAIL BRACKET TO FIRE WALL
92
SCREW HANDLE LEDGE TO REAR LID
95
STOP REAR LID
98
SCREW
101
STOP REAR FENDER
104
SCREW COVER PLATE TO COVER PLATE M 6 X 10
107
WASHER COMPRESSED AIR LINE TO BRACKET
107
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
110
RUBBER BUFFER REAR LID STIFFENING
119
TYPE DESIGNATION ON REAR LID,ADHESIVE "300CE"
121
TYPE DESIGNATION ON REAR LID,ADHESIVE "E320", C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
134
ORNAMENTAL COVER ON REAR LID, TO BE PAINTED PRIOR TO INSTALLATION FROM MODEL YEAR'91 UP TO END OF MODEL YEAR 93
137
RAIL ON REAR LID ORNAMENTAL COVER, C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
140
LOCK ORNAMENTAL COVER FIXTURE
143
SCREW REAR LICENSE PLATE TO PLATE
143
SCREW ORNAMENTAL COVER TO REAR LID, UP TO END OF MODEL YEAR 93
146
LOCKING CAP LOCK TO REAR LID ORNAMENTAL COVER FIXTURE
192
NUT FOR LICENSE PLATE
195
SCREW HOOK TO BRACKET
196
SPACER REAR LICENSE PLATE
198
PLATE REAR LICENSE PLATE
201
SCREW FOR LICENSE PLATE
