Поз.
Артикул
Описание

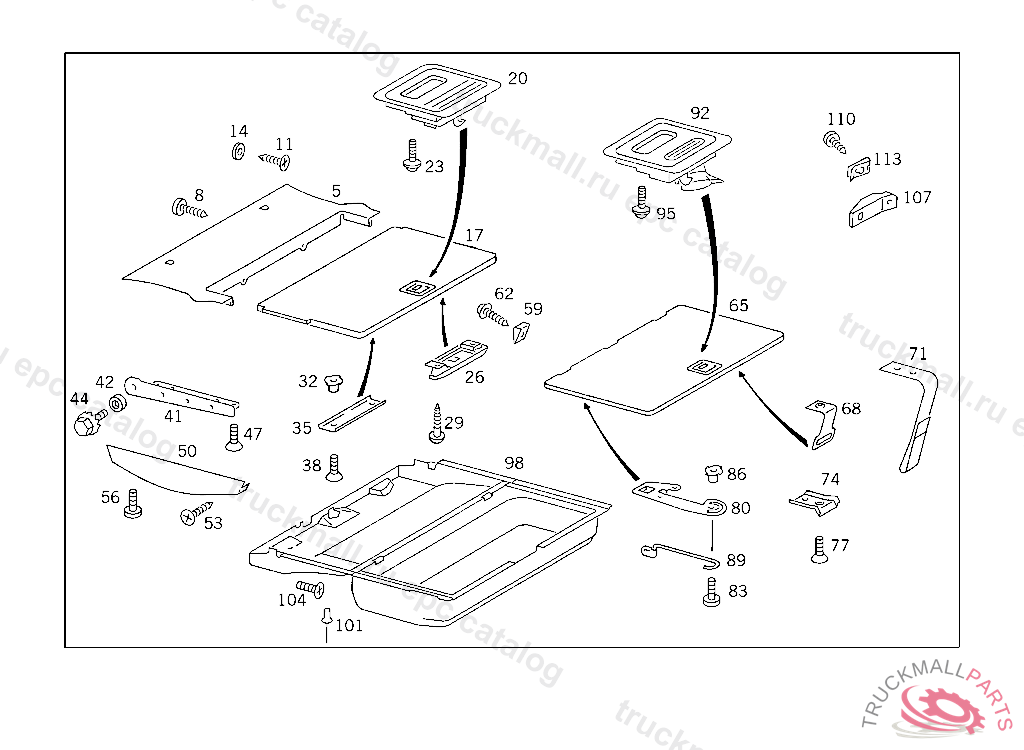

5
COVERING BEHIND REAR SEAT VELOURS,NO.7145I NO.5088I NO.8E42I NO.8423I NO.8424I NO.6129I NO.3117I NO.7144I IIIIIIII
8
SCREW
8
SHEET METAL SCREW , Replaced By: N000000002062
11
SHEET METAL SCREW
14
WASHER
17
FLOOR LOADING FLOOR,FRONT VELOURS,CODE 844,NO.7145I NO.5088I NO.8E42I NO.8423I NO.8424I NO.6117 AI NO.3117I NO.7144I I NO.6129 BI
20
FASTENER
23
SCREW , Replaced By: N000000001475
26
COVERING BACKREST CODE 844,NO.9051I NO.5076I NO.8316I NO.8F20I NO.8F30I NO.6122I NO.3112I NO.7101I I
29
WOOD SCREW COVERING TO BACKREST CODE 844
32
THREADED CHUCKCODE 844
35
PLATE BACKREST TO FLOOR CODE 844
38
SCREW DIODE CASE TO OPERATING UNIT CASE
41
HINGE LOADING FLOOR,FRONT RIGHT
41
HINGE LOADING FLOOR,FRONT LEFT
42
BUSHING HINGE TO REAR SIDE MEMBER
44
SCREW HINGE TO REAR SIDE MEMBER
47
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
50
STAY RIGHT HINGE,NO.9051I NO.5076I NO.8316I NO.8326I NO.8412I NO.6122I NO.3112I NO.7101I IIIIIIII
50
STAY HINGE,LEFT, F 264672 EXCEPT FOR F 259905 - F 264671 WITH CODE 859NO.9051I NO.5076I NO.8316I NO.8326I NO.8412I NO.6122I NO.3112I NO.7101I IIIIIIII
53
SCREW
56
SCREW CONTROL UNIT TO CAB
56
SCREW ELECTRIC CABLE TO PIPE BEND
59
STOP AT REAR CROSS MEMBER
62
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
65
FLOOR LOADING FLOOR,REAR VELOURS,CODE 844, F 264673 ALSO INSTALLED ON F 259905 - F 264671 WITH CODE 859NO.7145I NO.5088I NO.8E42I NO.8F18I NO.8F32I NO.6129I NO.3117I NO.7144I IIIIIIII
68
BRACKETCODE 844
71
LOOPCODE 844
74
PLATECODE 844
77
SCREW DIODE CASE TO OPERATING UNIT CASE
80
PLATE RIGHT CODE 844
80
PLATE LEFT CODE 844
83
SCREW ELECTRIC CABLE TO PIPE BEND
83
SCREW CONTROL UNIT TO CAB
86
THREADED CHUCKCODE 844
89
BRACKETCODE 844
92
FASTENER LOADING FLOOR, WITH KEY
92
FASTENER LOADING FLOOR, LESS KEY, STATE LOCK NUMBER WHEN ORDERING
95
SCREW , Replaced By: N000000001475
98
LINING UNDER LOADING FLOOR,NEEDLE FELT CODE 844
101
RIVET COVERING TO FRAME SIDE PART AND TO SIDE MEMBER,FRONT,F 187025
104
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
107
STOP AT REAR CROSS MEMBER
110
SHEET METAL SCREW BRACKET TO FLOOR PLATE
113
LOCK INSTRUMENT PANEL TO PANELLING
